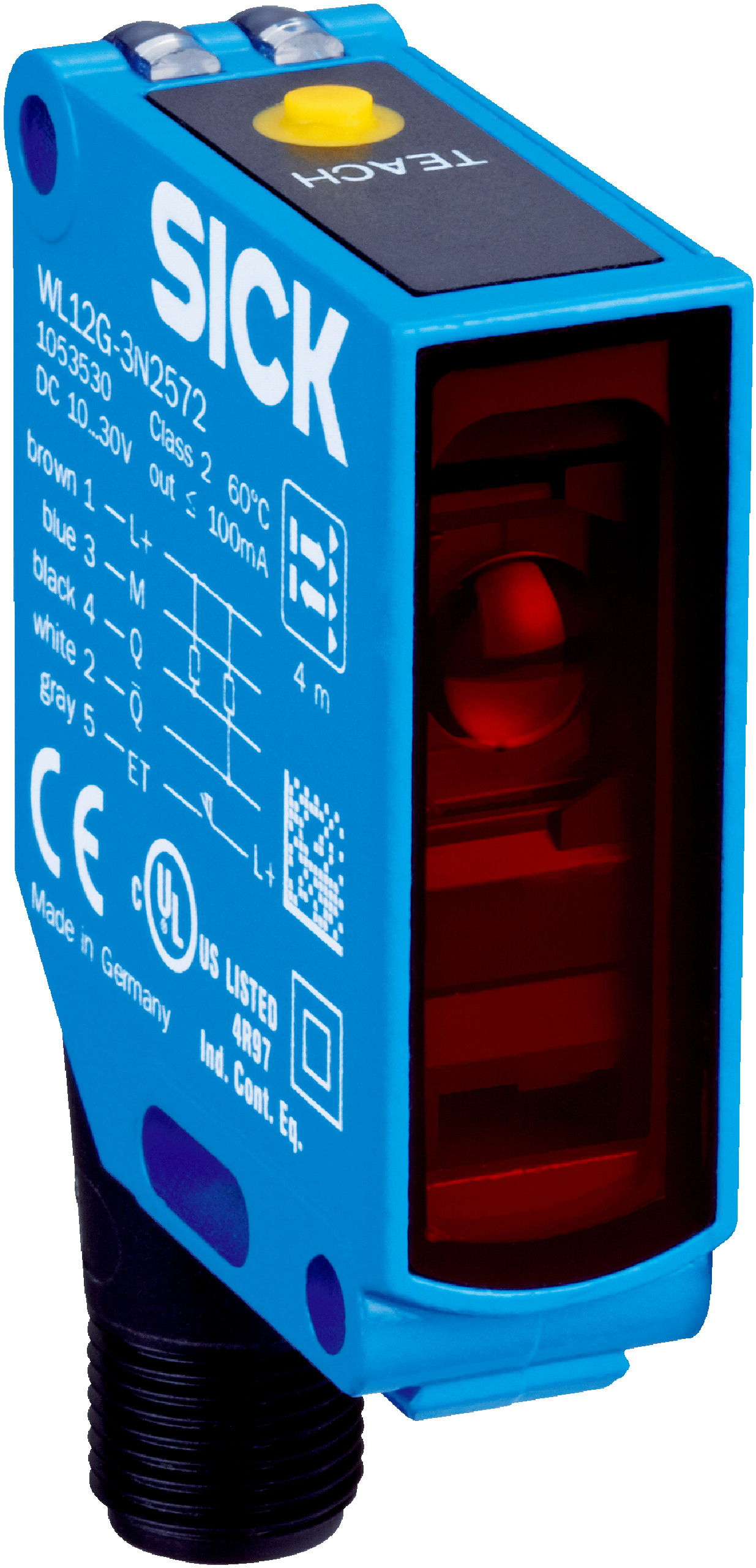

Photoelectric Retro-Reflective Sensor | 4m Sensing Range | IO-Link Communication | IP66/IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection, featuring a sensing range of up to 4 meters and an IO-Link communication interface. Ideal for industrial automation and detecting transparent objects, this sensor operates efficiently in harsh environments with IP66/IP67 protection, ensuring reliability and durability in your applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 4m Sensing Range | IO-Link Communication | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1054087
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, IO-Link sensor, Transparent object sensor, SICK WL12GC sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 to 4 meters
- Light source: PinPoint LED, visible red light, 660 nm wavelength
- Adjustment: IO-Link and single teach-in button
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: 200 µs to 300 µs
- Switching frequency: up to 1500 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -40°C to +60°C
- Connection: Male M12, 4-pin connector
- Housing material: Metal zinc diecast with plastic PMMA front screen
- Dimensions (H x L x W): 48.5mm x 42mm x 15.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 4 meters
- Polarisation filter included
- PinPoint LED visible red light with 660 nm wavelength
- IO-Link communication interface with 38.4 kBaud data rate
- Light/dark switching mode with PNP digital output
- High switching frequency up to 1500 Hz
- Metal zinc diecast housing with plastic PMMA front screen
- IP66 and IP67 rated for dust and water protection
- Operating temperature range from -40°C to +60°C
- Special feature for detecting transparent objects
- AutoAdapt function for optimized sensing
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

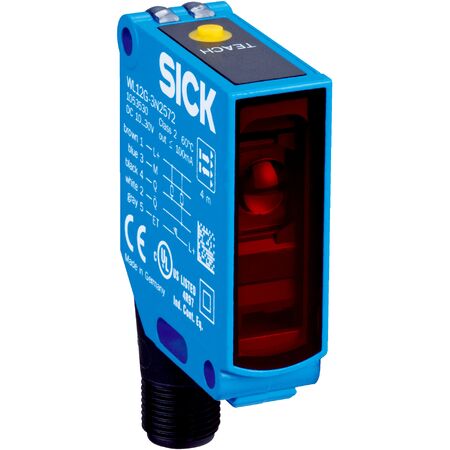

The SICK WL12GC-3P2472A00 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
