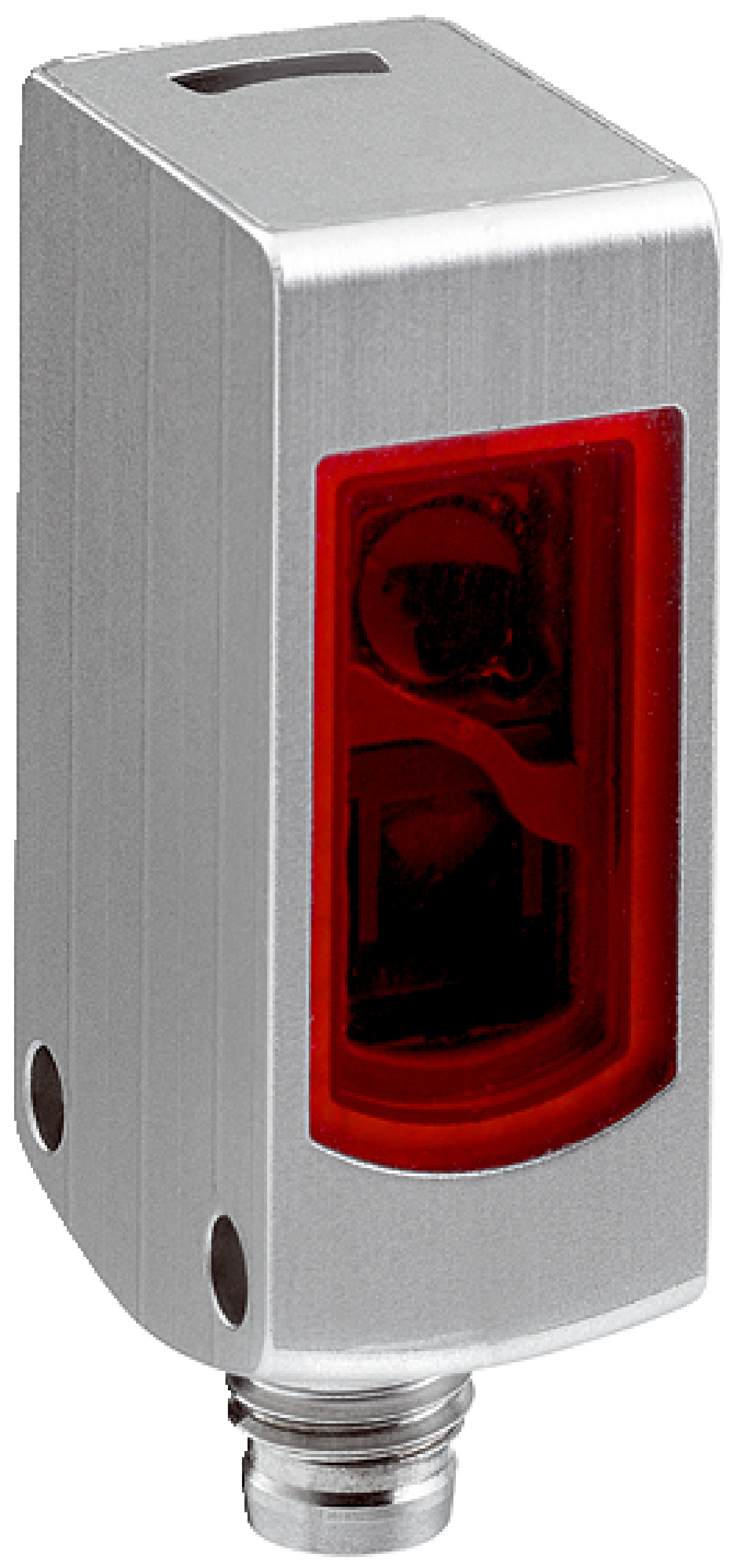

Photoelectric Retro-Reflective Sensor WL4S-3F3130V | 4m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL4S-3F3130V is designed for industrial automation, featuring a sensing range of up to 4 meters and a fast response time of under 0.5 ms. With a durable stainless steel housing and high protection ratings, it's perfect for hygienic and washdown environments, ensuring reliable object detection and machine safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL4S-3F3130V | 4m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046416
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL4S sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 4 m max, 0 m to 2.5 m typical
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP, dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Plastic PMMA
- Cable: Plastic PVC, 150 mm length
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 4 meters
- Polarisation filters included
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms with switching frequency up to 1000 Hz
- PNP dark switching digital output with max 100 mA output current
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Certified for hygienic and washdown zones reducing contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK WL4S-3F3130V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
