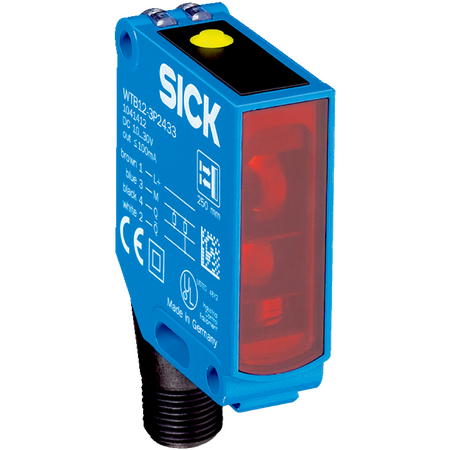

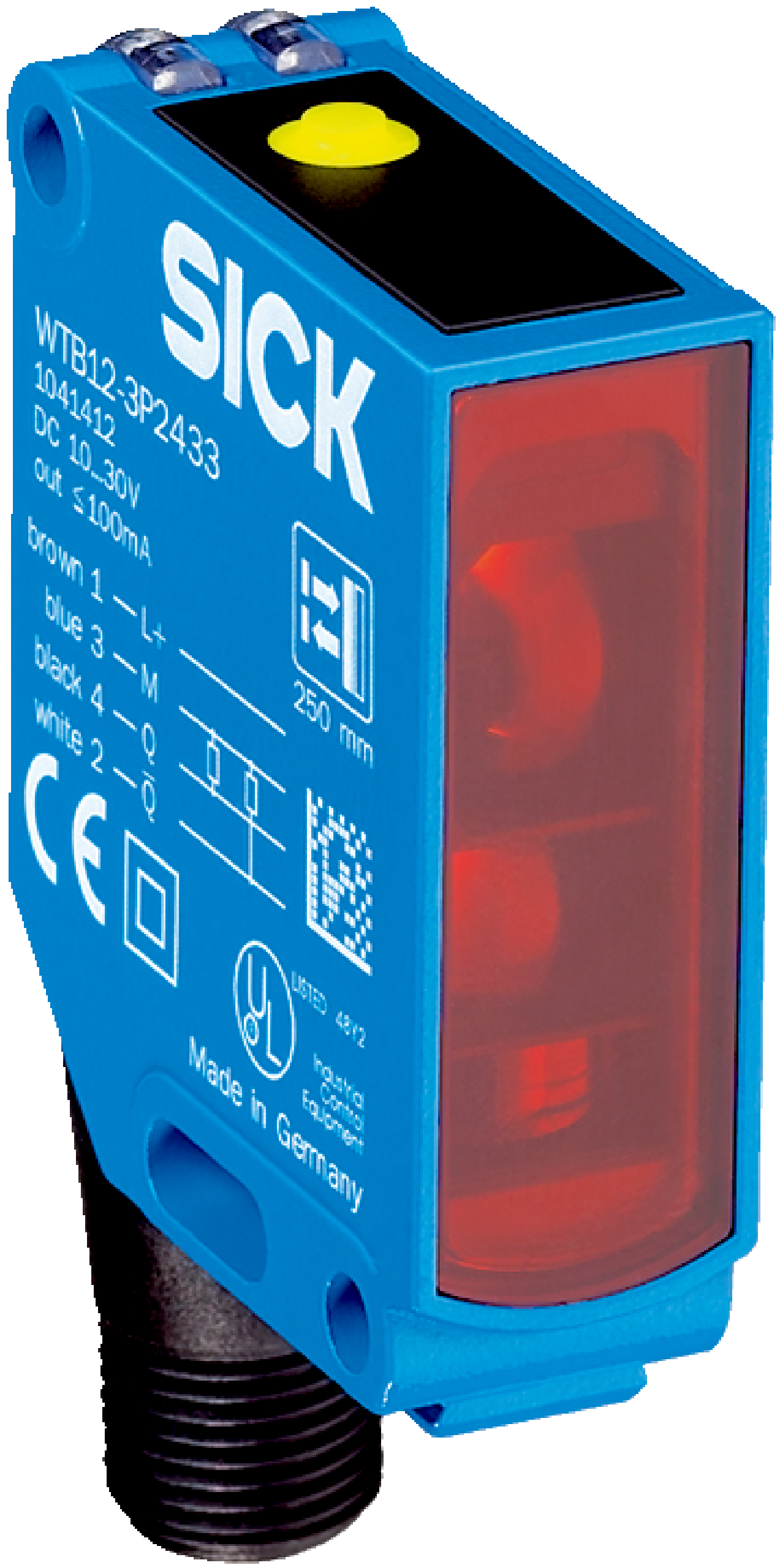

Photoelectric Retro-Reflective Sensor | 4m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 4 meters without a reflector and selectable light/dark switching modes. With robust IP66/IP67/IP69K protection, it excels in harsh environments, making it ideal for detecting transparent objects in manufacturing and ensuring reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK WL12G sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP and NPN digital outputs
- Switching modes: Light switching and dark switching selectable
- Response time: ≤ 330 µs
- Switching frequency: 1500 Hz
- Protection class: III
- Circuit protection types: A, C, D
- Light spot size: Ø 25 mm at 1.5 m distance
- Angle of dispersion: Approx. 1.5°
- MTTFD: 823 years
- Connection: M12, 5-pin plug
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 4 meters without reflector
- Polarisation filter for improved detection
- Visible red LED light source with 640 nm wavelength
- Potentiometer adjustment with 11 turns
- Selectable light/dark switching modes via control cable
- High switching frequency of 1500 Hz
- Robust metal zinc diecast housing with plastic PMMA front screen
- IP66, IP67, and IP69K rated for harsh environments
- Operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in harsh environments requiring IP66/IP67/IP69K protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL12G-3B2531 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
