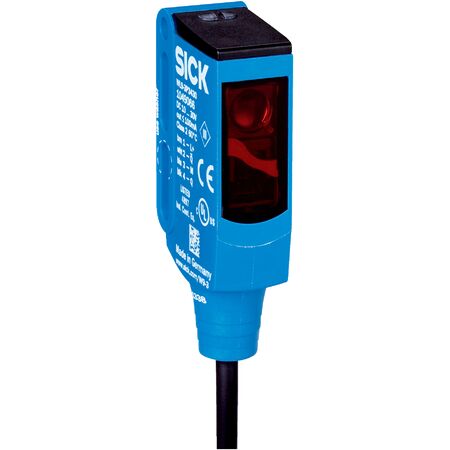

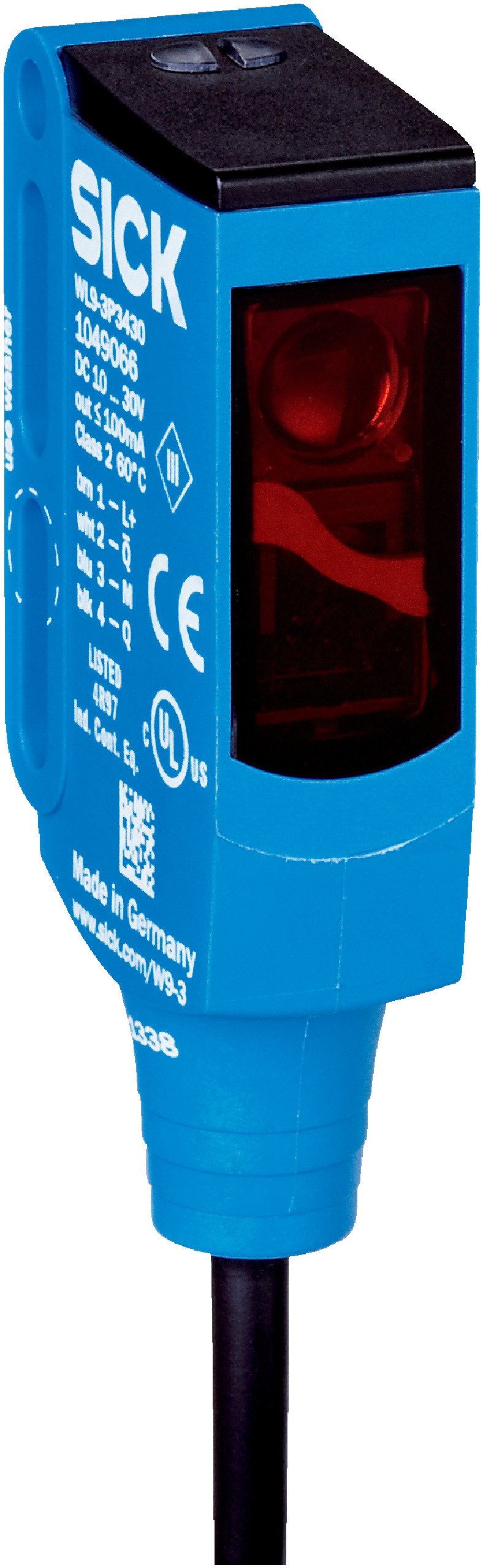

Photoelectric Retro-Reflective Sensor WL9-3N1130 | 4m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3N1130 is designed for industrial automation, featuring a sensing range of up to 4 meters without a reflector and a high switching frequency of 1,000 Hz. With its robust IP66/IP67/IP69K rated housing and visible red light PinPoint LED, this sensor ensures reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL9-3N1130 | 4m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1049069
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max: 0 m to 4 m without reflector
- Type of light: Visible red light, wavelength 650 nm
- Light source: PinPoint LED
- Light spot size at 1.5 m: Ø 45 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40 °C to +60 °C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Polarizing filter: Included
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 4 meters without reflector
- Rectangular housing design with M3 mounting hole
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Complementary NPN switching output with light/dark switching mode
- Robust plastic housing (VISTAL®) and optics (PMMA) with IP66, IP67, IP69K protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Polarizing filter included for enhanced detection reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3N1130 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
