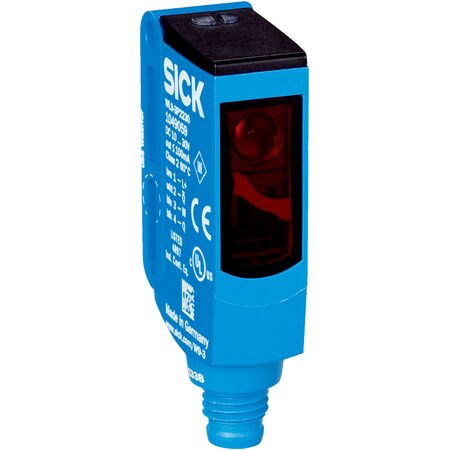

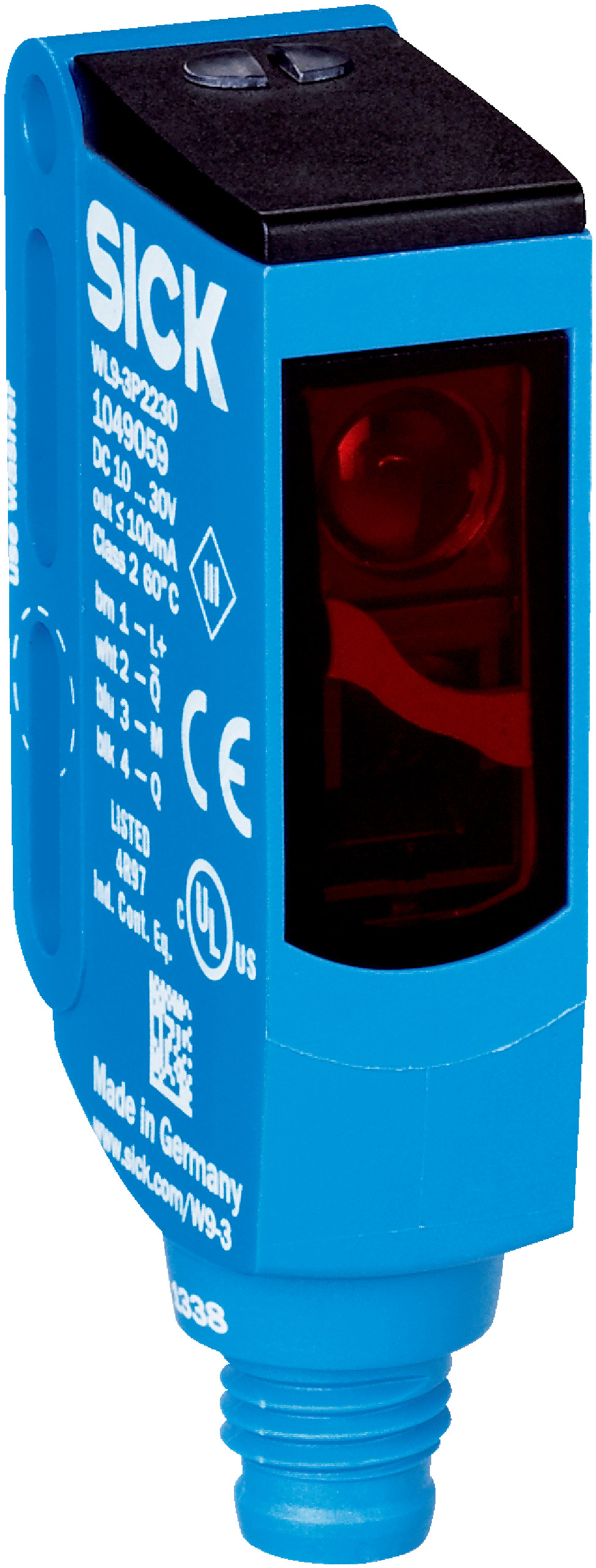

Photoelectric Retro-Reflective Sensor | 4m Sensing Range | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P2230S03 is designed for industrial automation, offering a sensing range of up to 4 meters and a fast response time of under 0.5 ms. With its durable IP66/IP67/IP69K rated housing, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max: 0 m to 4 m
- Light source: PinPoint LED, 650 nm wavelength
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 650 nm wavelength
- Sensing range up to 4 meters with autocollimation optics
- Rectangular plastic housing with IP66, IP67, and IP69K protection
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Polarizing filter and special device features included
- Male connector M8, 4-pin connection type
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP69K rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL9-3P2230S03 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
