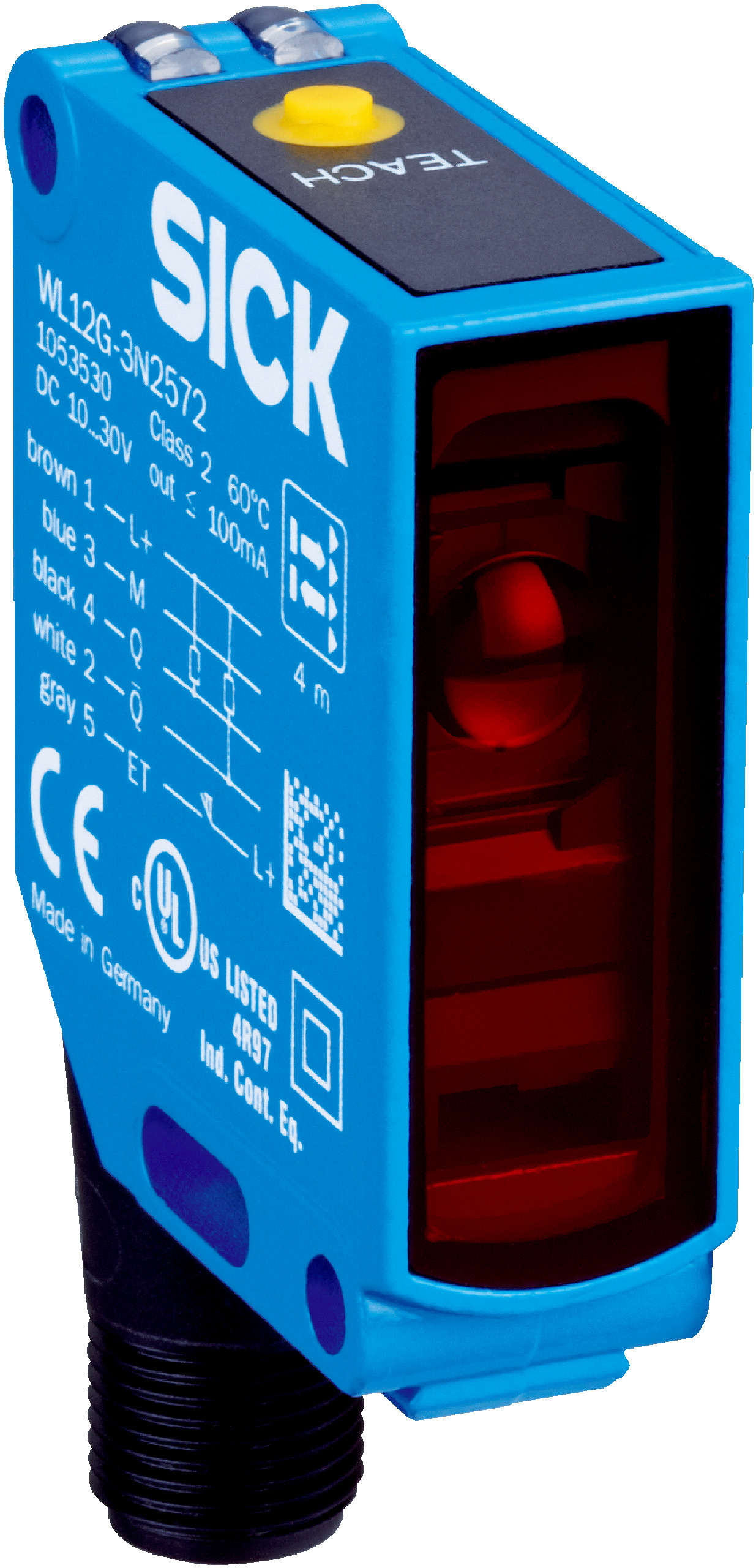

Photoelectric Retro-Reflective Sensor | 4m Sensing Range | PinPoint LED | IP66 & IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a 4m sensing range and a PinPoint LED light source for detecting transparent objects. With robust IP66 and IP67 ratings, this sensor operates efficiently in harsh environments, making it ideal for manufacturing and production line applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector
- Sensing range: 0 m to 4 m
- Light source: PinPoint LED, visible red light, 660 nm wavelength
- Light spot size: Ø 25 mm at 1.5 m distance
- Adjustment: IO-Link and single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: 100 µs repeatability, switching frequency up to 1500 Hz
- Protection class: III
- Housing: Metal zinc diecast with plastic PMMA front screen
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Communication: IO-Link COM2 at 38.4 kBaud, cycle time 2.3 ms
- Special applications: Detecting transparent objects
- MTTFD: 891 years, Mission time: 20 years
- Dimensions (H x L x W): 48.5mm x 42mm x 15.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 4 meters without reflector
- PinPoint LED visible red light with 660 nm wavelength
- Polarisation filter included
- IO-Link communication interface with 38.4 kBaud data rate
- Light/dark switching PNP digital output
- High switching frequency up to 1500 Hz
- Metal zinc diecast housing with IP66 and IP67 protection
- Operating temperature range from -40°C to +60°C
- Special feature for detecting transparent objects
- AutoAdapt function for optimized sensing
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration for optimal performance and safety.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Counting and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Compliant with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now

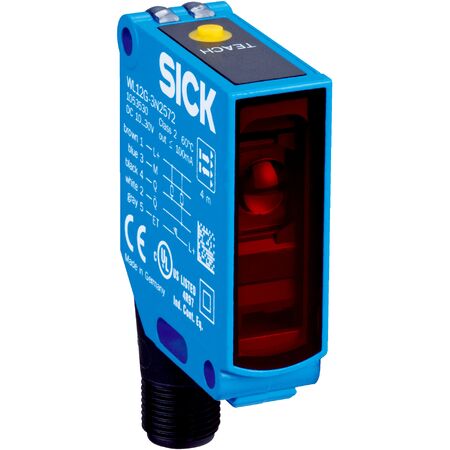

The SICK WL12GC-3P2472A71 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
