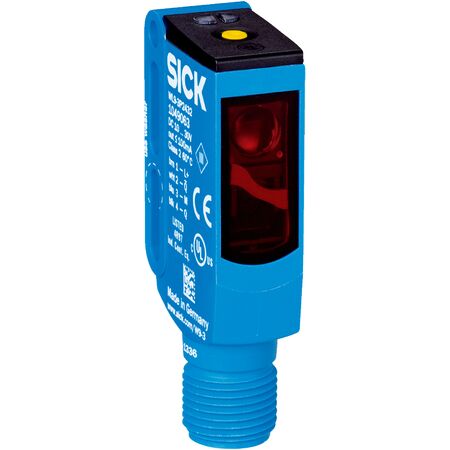

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IO-Link V1.1 | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9C-3P2432A70 is designed for precise object detection in industrial automation. With a sensing range of up to 5 meters and an IO-Link V1.1 communication interface, it ensures seamless integration into smart systems. Built for durability, it features a robust IP66/IP67/IP69K rated housing, making it ideal for harsh environments and manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 5 m without reflector
- Light source: PinPoint LED, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 16 Bit
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 650 nm wavelength
- Sensing range up to 5 meters without reflector
- IO-Link V1.1 communication interface for smart sensor integration
- High switching frequency up to 1000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection
- Operating temperature range from -40°C to +60°C
- Fast response time under 0.5 ms
- Multiple switching modes including light/dark switching
- Complementary PNP output with max 100 mA output current
- M12 4-pin male connector for easy installation
- Integrated polarizing filter to reduce interference
- Smart task functions including time measurement and debouncing
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link communication setup.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
- Time measurement and debouncing tasks in automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing minimizes waste through extended product life
- Compliant with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9C-3P2432A70 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
