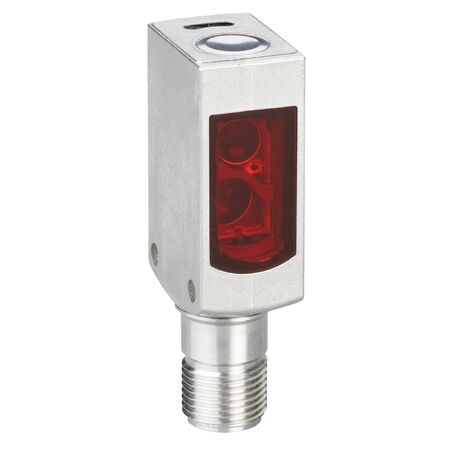

Photoelectric Retro-Reflective Sensor WL4S-3V2232V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WL4S-3V2232V Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters without a reflector and a fast response time of under 0.5 ms. With a robust stainless steel housing and high protection ratings, it's perfect for hygienic and washdown environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL4S-3V2232V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046422
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, PNP sensor, Washdown sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 5 meters max, 0 to 3 meters typical
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: PNP, dark switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Circuit protection: Types A, B, C
- Housing: Metal stainless steel V4A (1.4404, 316L), front screen plastic PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters without reflector
- Polarisation filters included
- Visible red light PinPoint LED with 650 nm wavelength
- Single teach-in button for easy adjustment
- Alarm output available
- Housing designed for washdown environments
- Slim metal housing made of stainless steel V4A (1.4404, 316L)
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- PNP digital output with dark switching mode
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Robust design reduces need for frequent replacements, minimizing waste
- Energy-efficient LED light source reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WL4S-3V2232V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
