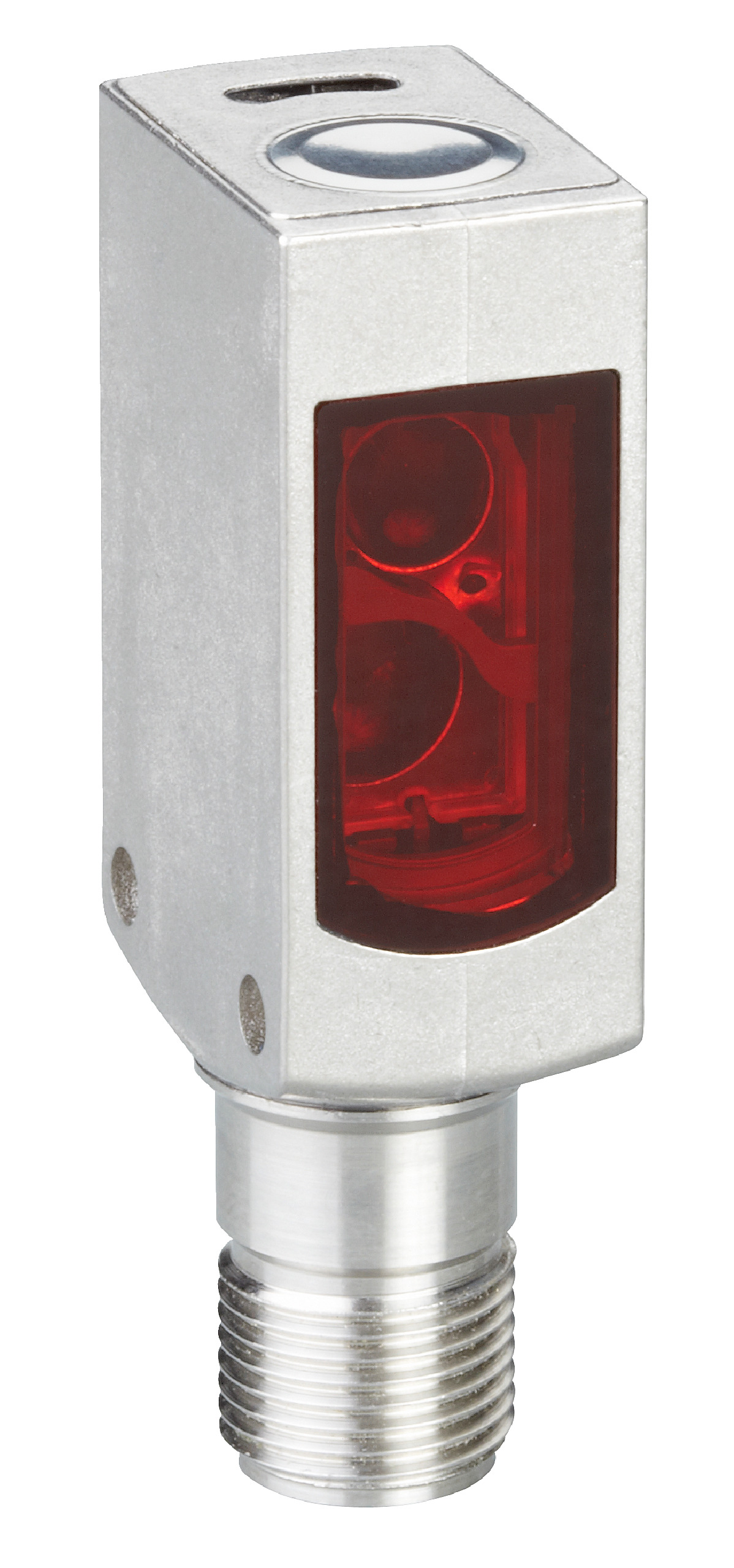

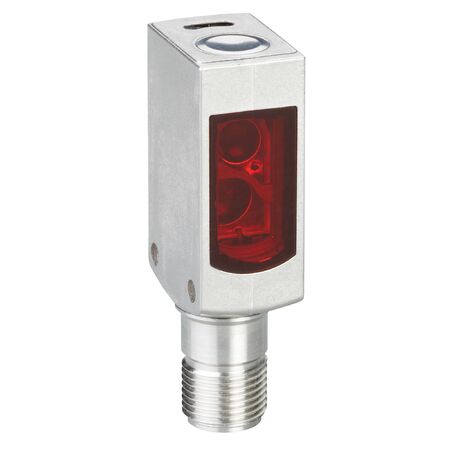

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL4S-3P2132V is designed for industrial automation, featuring a sensing range of up to 5 meters without a reflector and robust IP66/IP67/IP68/IP69K protection. Ideal for hygienic environments, this sensor utilizes a visible red light PinPoint LED and offers a fast response time of under 0.5 ms, making it perfect for safety and monitoring applications in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046424
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Washdown sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max: 0 m to 5 m without reflector
- Polarisation filters: Yes
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: PNP, light switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Circuit protection: Types A, B, C
- Housing: Metal stainless steel V4A (1.4404, 316L), front screen plastic PMMA
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters without reflector
- Polarisation filters included
- Visible red light PinPoint LED with 650 nm wavelength
- Single teach-in button for easy adjustment
- Washdown housing design suitable for hygienic environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- Robust stainless steel V4A (1.4404, 316L) metal housing
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Suitable for hygienic zones reducing contamination and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL4S-3P2132V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
