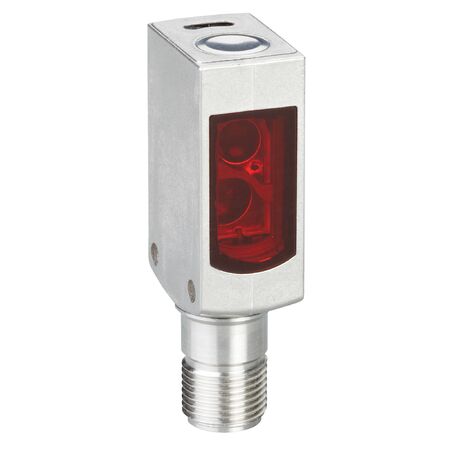

Photoelectric Retro-Reflective Sensor WL4S-3P1332V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL4S-3P1332V is designed for industrial automation, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With a durable stainless steel housing and high protection ratings, it's perfect for hygienic environments in food and pharmaceutical industries, ensuring reliable object detection and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL4S-3P1332V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046427
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Washdown sensor, Industrial object sensor, SICK sensor WL4S
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m maximum
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Plastic PMMA
- Cable: 3-wire, 2 m length, PVC
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters for reliable detection
- Visible red light PinPoint LED with 650 nm wavelength
- Single teach-in button for easy adjustment
- Washdown housing design suitable for hygienic environments
- High protection rating: IP66, IP67, IP68, IP69K
- Slim stainless steel V4A (1.4404, 316L) metal housing
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Cable connection with 2 m length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones in food and pharmaceutical industries
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High protection ratings ensure long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL4S-3P1332V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
