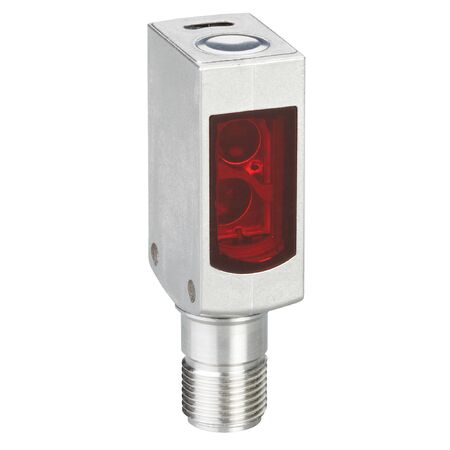

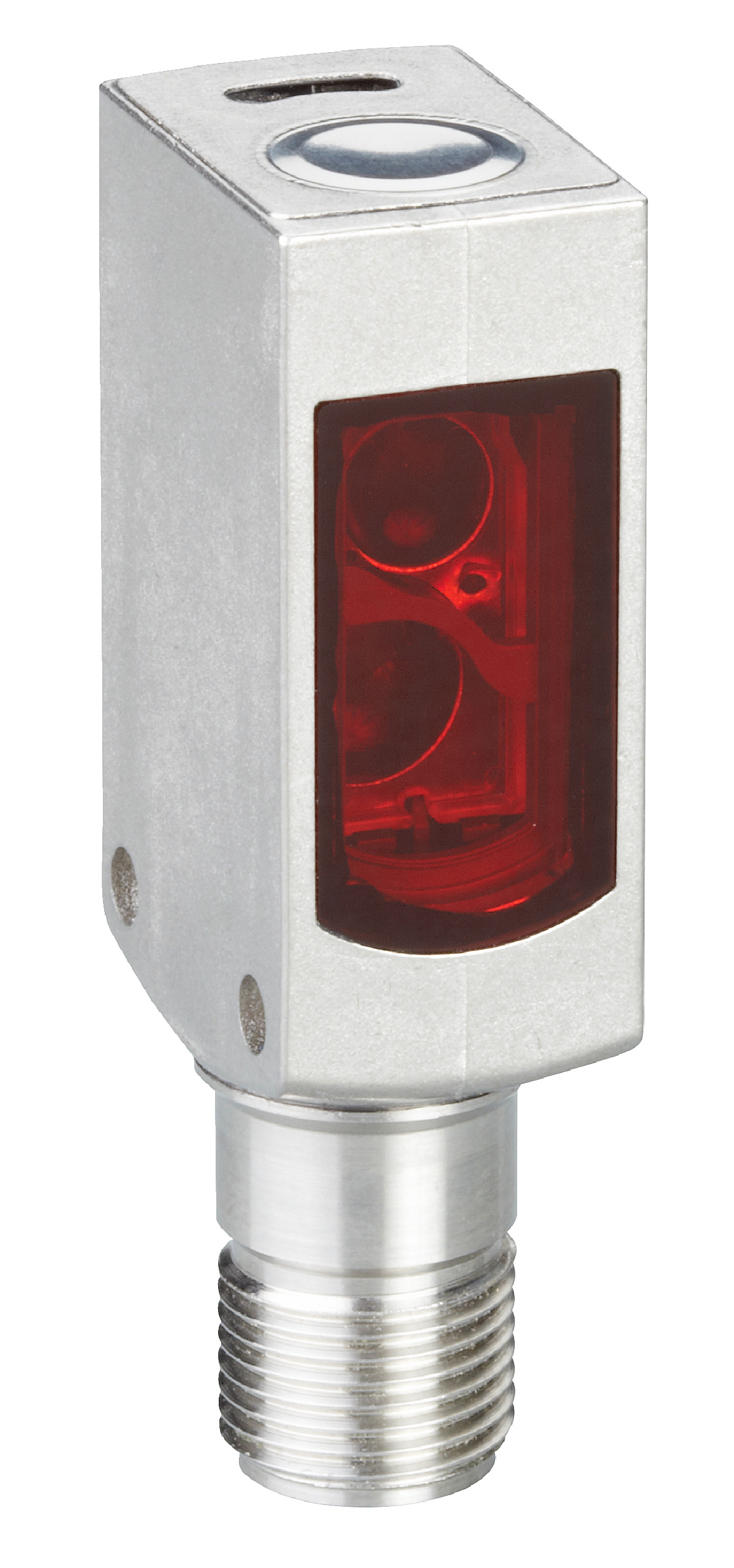

Photoelectric Retro-Reflective Sensor WL4S-3N2132V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL4S-3N2132V is designed for industrial automation, featuring a sensing range of up to 5 meters without a reflector and a fast response time of under 0.5 ms. With a robust stainless steel housing and high protection ratings (IP66/IP67/IP68/IP69K), it's perfect for hygienic environments and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL4S-3N2132V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046432
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Washdown sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 to 5 meters without reflector, 0 to 3 meters typical
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: NPN, light switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing: Metal stainless steel V4A (1.4404, 316L), slim design
- Front screen: Plastic PMMA
- Connection: M8, 3-pin connector
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters without reflector
- Polarisation filters for improved detection
- Visible red light PinPoint LED with 650 nm wavelength
- Single teach-in button for easy adjustment
- Washdown housing design suitable for hygienic environments
- High protection rating: IP66, IP67, IP68, IP69K
- Slim stainless steel V4A housing (1.4404, 316L)
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Robust design reduces need for frequent replacements, minimizing waste
- Energy-efficient LED light source reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL4S-3N2132V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
