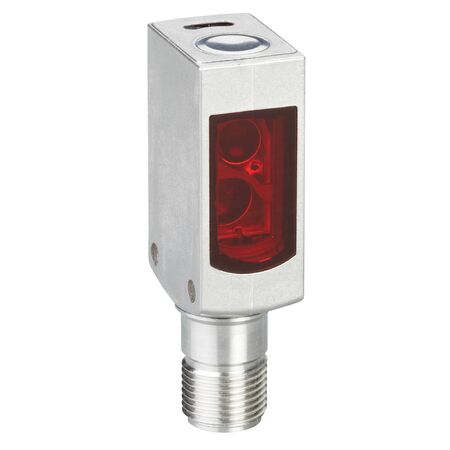

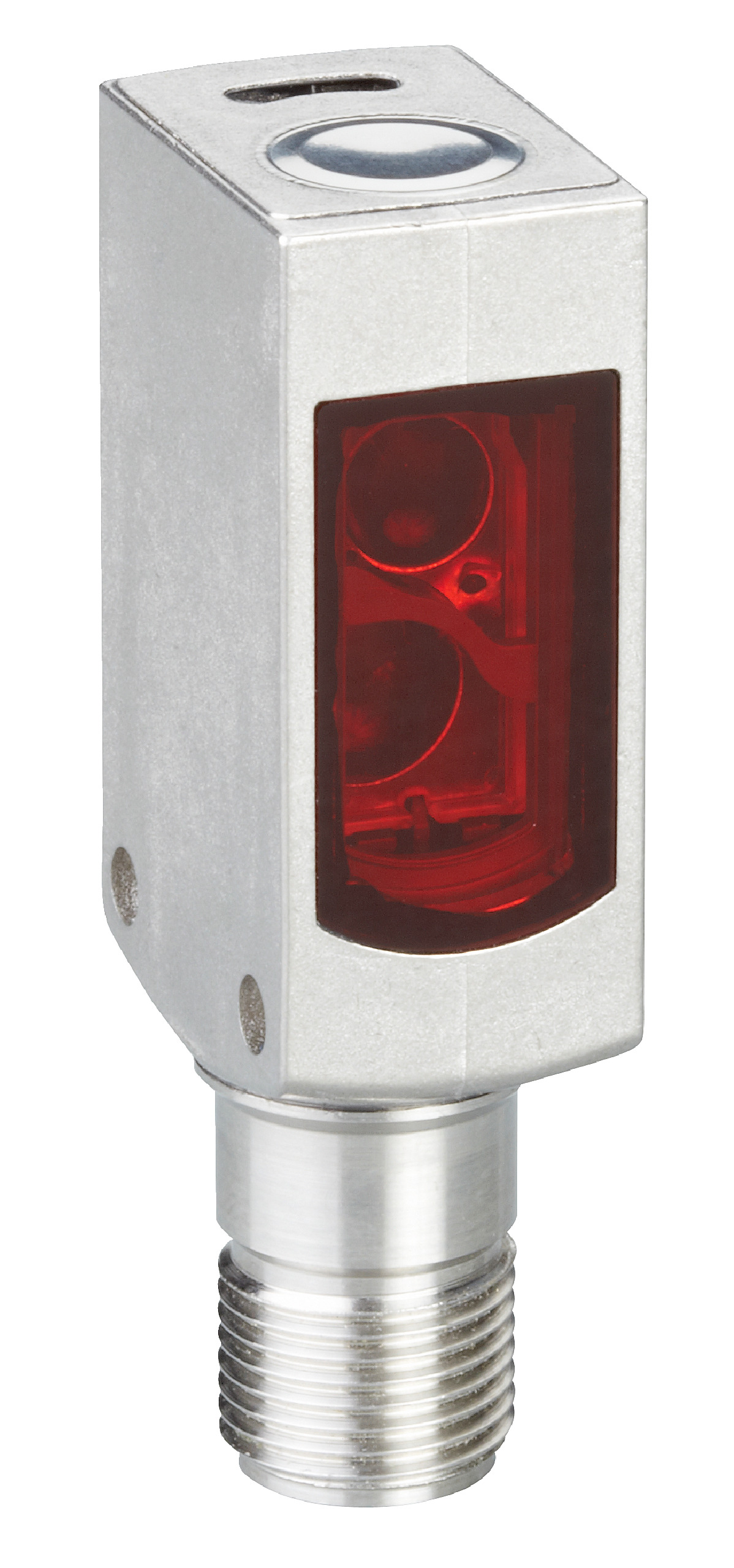

Photoelectric Retro-Reflective Sensor WL4S-3E2132V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL4S-3E2132V is designed for industrial automation, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With its durable stainless steel housing and IP66/IP67/IP68/IP69K protection, it's perfect for hygienic and washdown environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL4S-3E2132V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046435
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial proximity sensor, Washdown sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m maximum
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Single teach-in button
- Housing: Metal, Stainless steel V4A (1.4404, 316L), slim design
- Front screen: Plastic, PMMA
- Connection: Connector M8, 3-pin
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Digital output: NPN, dark switching, max 100 mA output current
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Circuit protection: Types A, B, C
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- MTTFD: 1,530 years
- Mission time: 20 years
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- Visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Slim stainless steel V4A housing with IP66, IP67, IP68, and IP69K protection
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- NPN dark switching digital output with max 100 mA output current
- Suitable for hygienic and washdown environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient LED light source minimizes power consumption
- High ingress protection reduces need for frequent replacements in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL4S-3E2132V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
