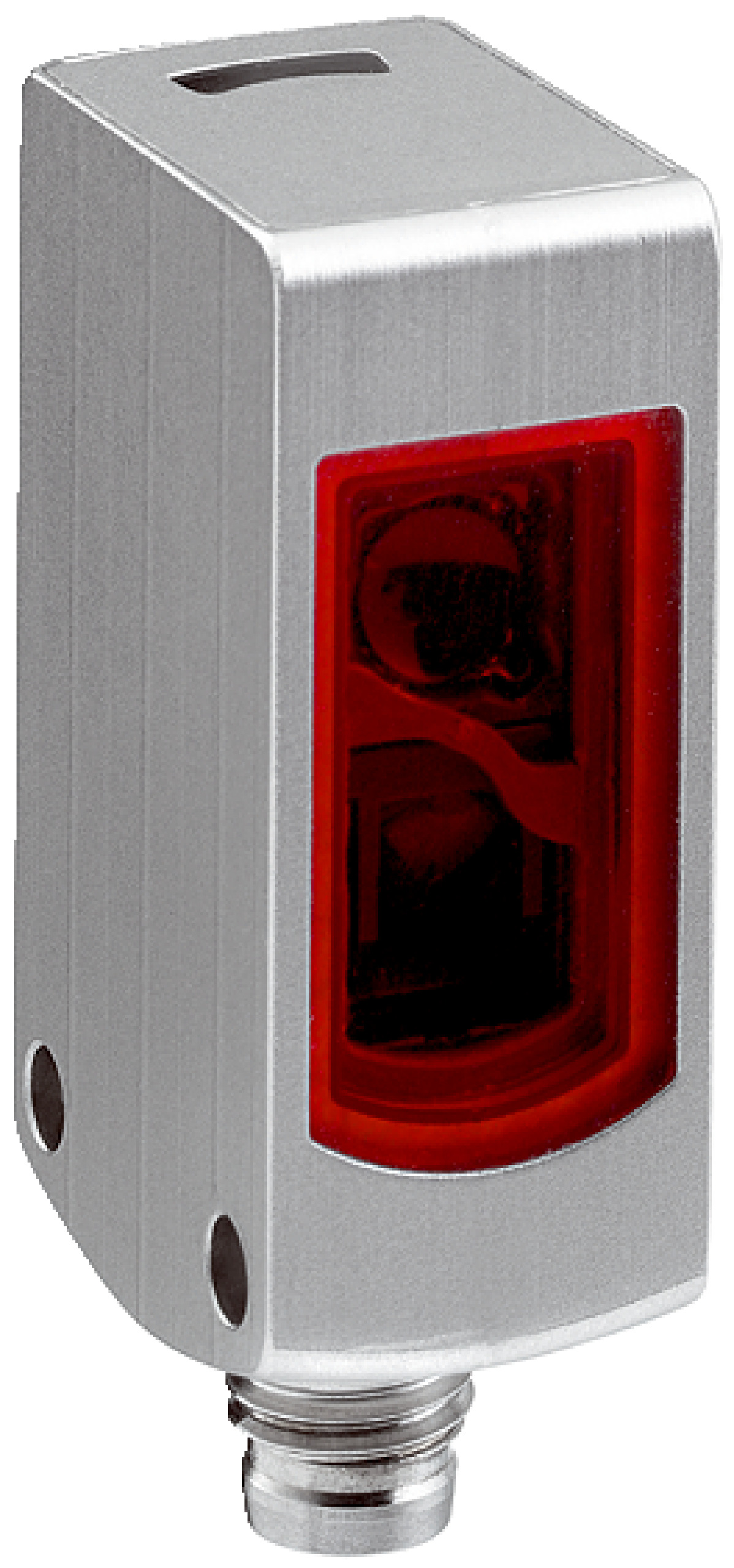

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With a durable stainless steel housing and IP66/IP67/IP68/IP69K ratings, it's perfect for hygienic washdown zones and reliable object detection, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046450
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, Washdown sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 5 m maximum
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: NPN digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Housing material: Stainless steel V4A (1.4404, 316L)
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Cable: 4-wire, 2 m length, 0.14 mm² conductor size
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button adjustment
- Washdown housing design made of stainless steel V4A (1.4404, 316L)
- IP66, IP67, IP68, IP69K rated enclosure
- AutoAdapt feature for optimized sensing
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- NPN digital output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure proper sensor alignment and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Designed for washdown zones to maintain hygiene and reduce contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG4S-3N1132V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
