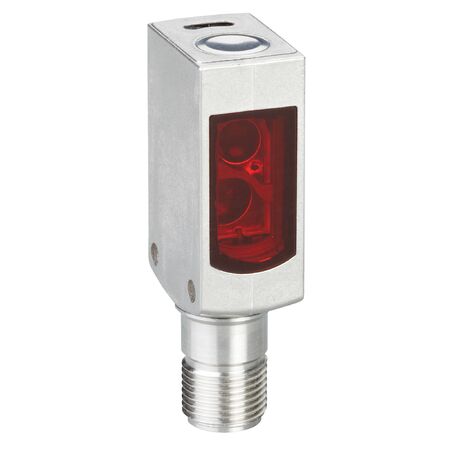

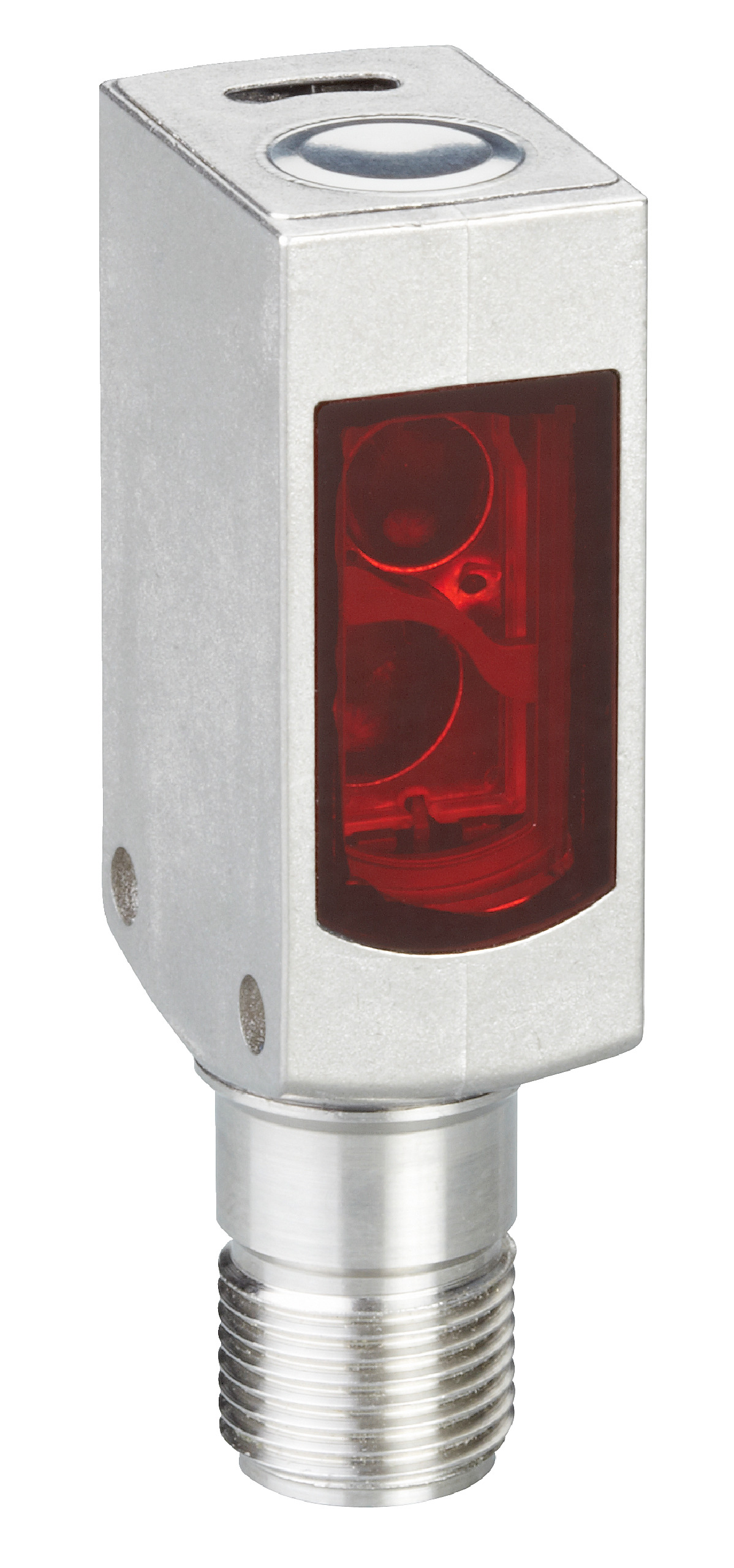

Photoelectric Retro-Reflective Sensor WLG4S-3N2432V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WLG4S-3N2432V Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With a durable stainless steel housing and IP66/IP67/IP68/IP69K ratings, it's perfect for hygienic and washdown zones, ensuring reliable detection of transparent objects in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WLG4S-3N2432V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1054728
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, Washdown sensor, Stainless steel photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 to 5 meters maximum
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Single teach-in button
- Housing: Metal, stainless steel V4A (1.4404, 316L), slim design
- Front screen: Plastic, PMMA
- Connection: Male connector M12, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: NPN, light/dark switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Circuit protection: Types A, B, C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- Visible red light PinPoint LED with 650 nm wavelength
- Single teach-in button for easy adjustment
- Washdown housing design made of stainless steel V4A (1.4404, 316L)
- IP66, IP67, IP68, IP69K rated for harsh environments
- AutoAdapt feature for optimized sensing
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Complementary output function with NPN digital output
- Circuit protection types A, B, and C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High reliability reduces downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WLG4S-3N2432V Photoelectric Retro-Reflective Sensor is available for immediate purchase. Ideal for industrial automation, hygienic zones, and transparent object detection applications.
