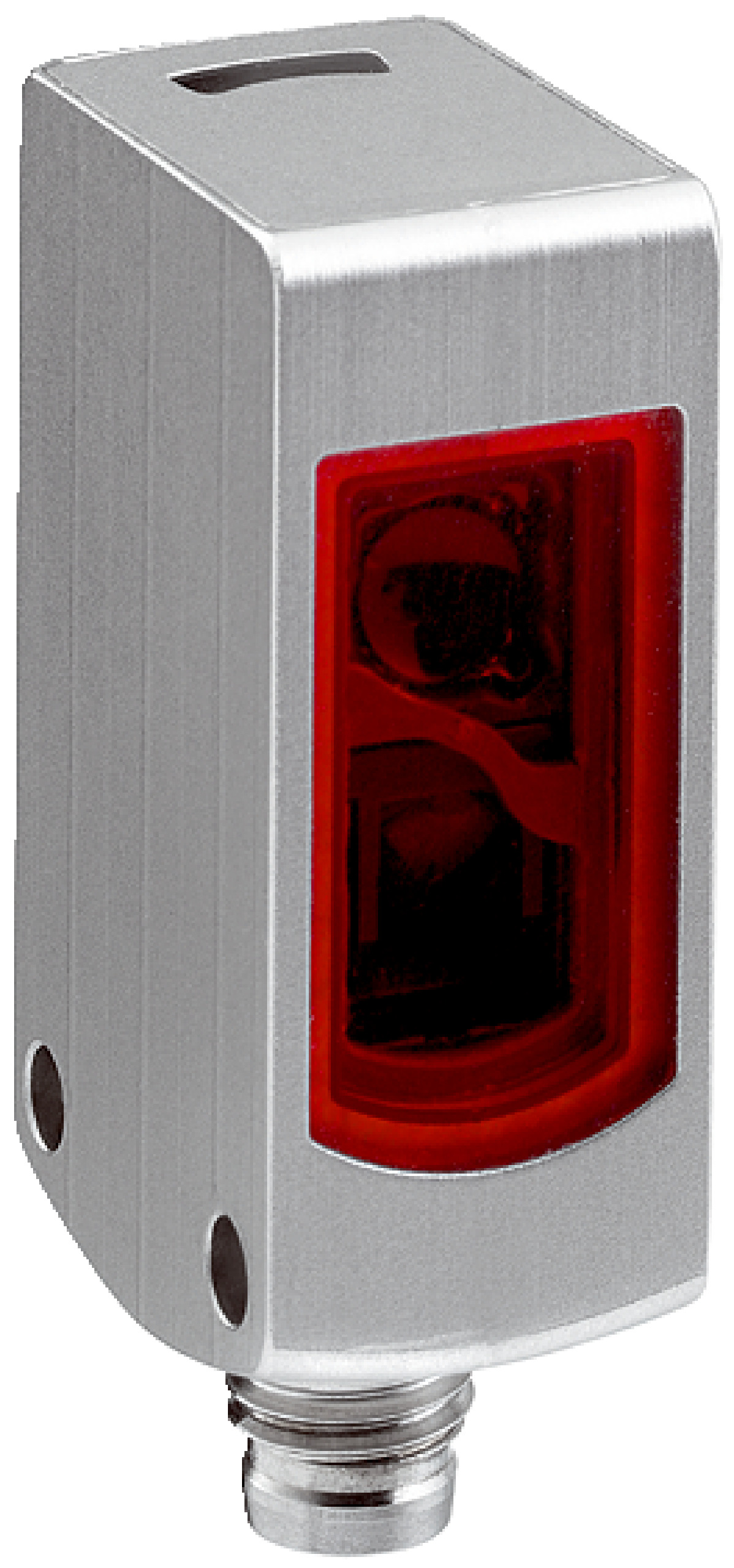

Photoelectric Retro-Reflective Sensor WLG4S-3P1132V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WLG4S-3P1132V Photoelectric Retro-Reflective Sensor is designed for hygienic and washdown zones, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With its durable stainless steel housing and IP66/IP67/IP68/IP69K protection ratings, this sensor is perfect for industrial automation and safety systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WLG4S-3P1132V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1055044
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Washdown sensor, Stainless steel sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m maximum
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Single teach-in button
- Housing: Metal, Stainless steel V4A (1.4404, 316L), slim design
- Connection: 4-wire cable, 2 m length, 0.14 mm² conductor size
- Protection rating: IP66, IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Circuit protection: Types A, B, C
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Washdown housing design made of stainless steel V4A (1.4404, 316L)
- AutoAdapt feature for optimized sensing
- High switching frequency of 1,000 Hz and fast response time under 0.5 ms
- Protection class III with IP66, IP67, IP68, and IP69K ratings
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Detecting transparent objects
- Industrial automation and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient LED light source minimizes power consumption
- Designed for harsh environments reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WLG4S-3P1132V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic environment applications.
