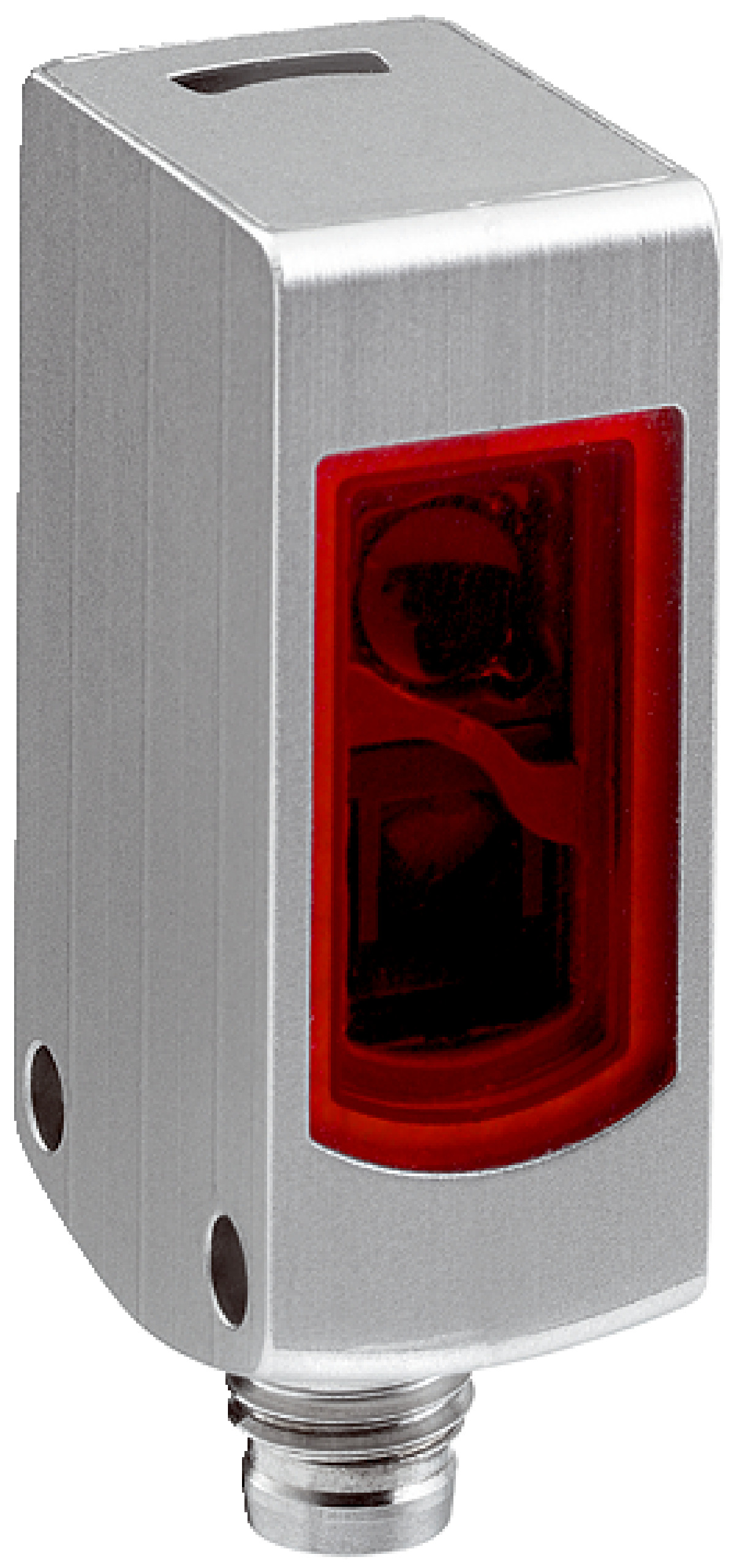

Photoelectric Retro-Reflective Sensor WLG4S-3F3435V | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WLG4S-3F3435V Photoelectric Retro-Reflective Sensor is designed for industrial automation and hygienic zones, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With a durable stainless steel housing and high protection ratings, this sensor is perfect for detecting transparent objects in washdown environments, ensuring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m maximum
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- PinPoint LED visible red light with 650 nm wavelength
- AutoAdapt feature for optimized sensing
- Washdown housing design made of stainless steel V4A (1.4404, 316L)
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Dark switching mode with PNP digital output
- Cable connection with M12 male connector, 4-pin
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Detecting transparent objects
- Industrial automation and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life in harsh environments
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLG4S-3F3435V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
