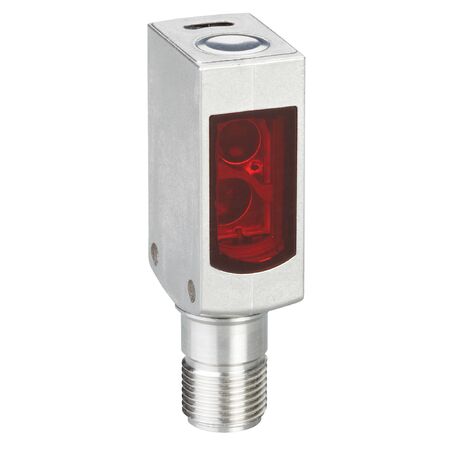

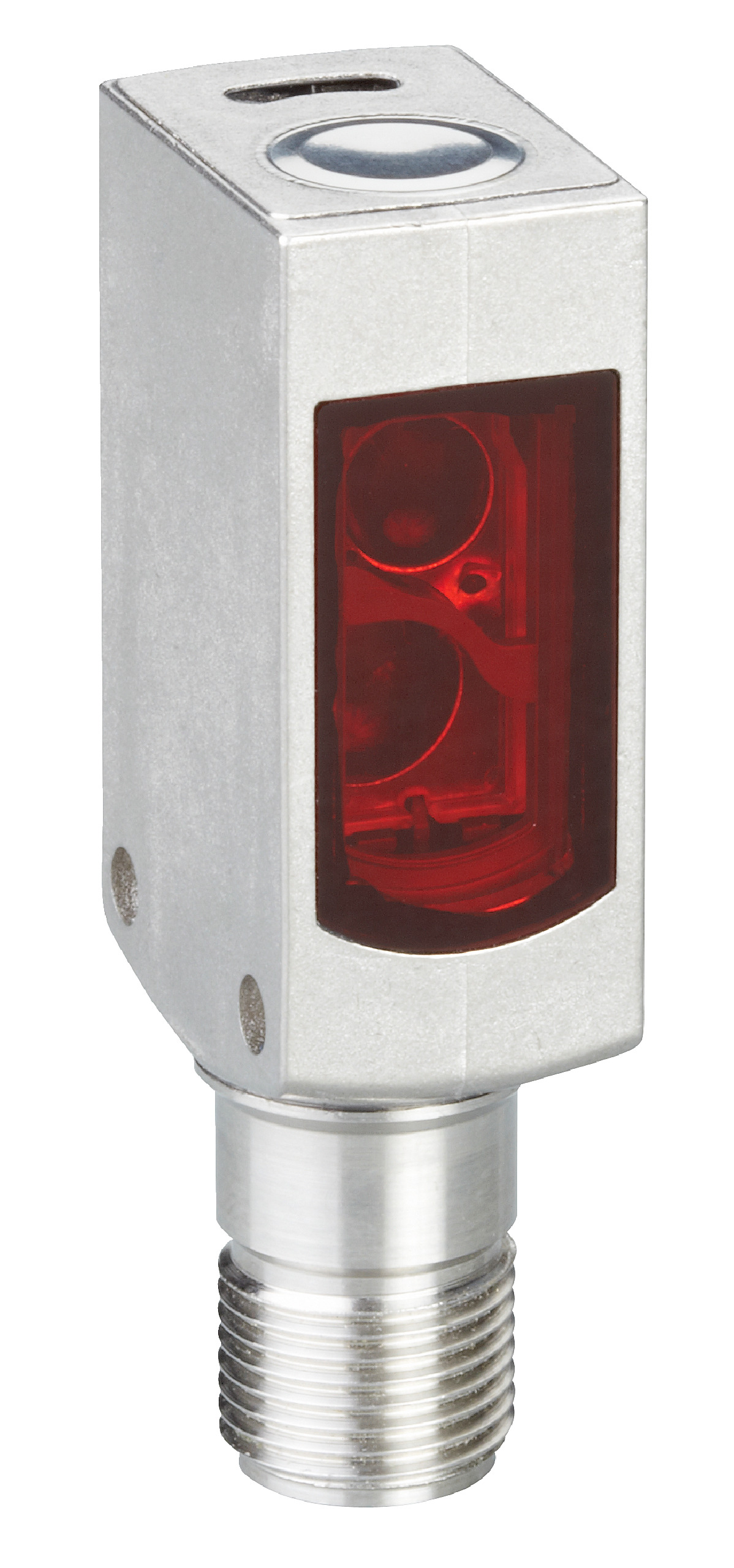

Photoelectric Retro-Reflective Sensor WLG4SC-3P2432VA00 | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The WLG4SC-3P2432VA00 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With its durable stainless steel housing and IP66/IP67/IP68/IP69K rating, it's perfect for hygienic and washdown environments, ensuring reliable object detection even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 to 5 meters
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Adjustment: Single teach-in button
- Output type: PNP digital output, light/dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Housing material: Stainless steel V4A (1.4404, 316L)
- Connection: Male M12, 4-pin connector
- Operating temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for adjustment
- Housing designed for washdown environments
- AutoAdapt feature for optimized sensing
- High switching frequency up to 1000 Hz
- Fast response time under 0.5 ms
- IP66, IP67, IP68, IP69K rated enclosure for harsh environments
- Metal stainless steel V4A housing for durability
- Male M12 4-pin connector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLG4SC-3P2432VA00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
