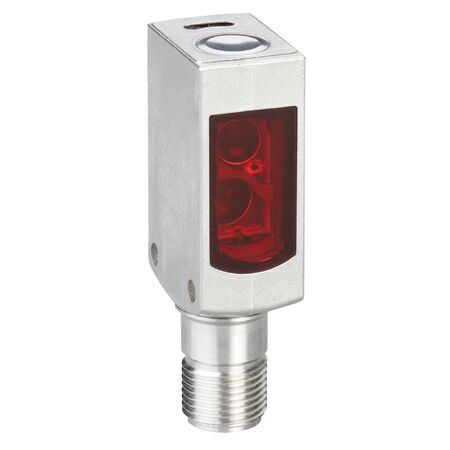

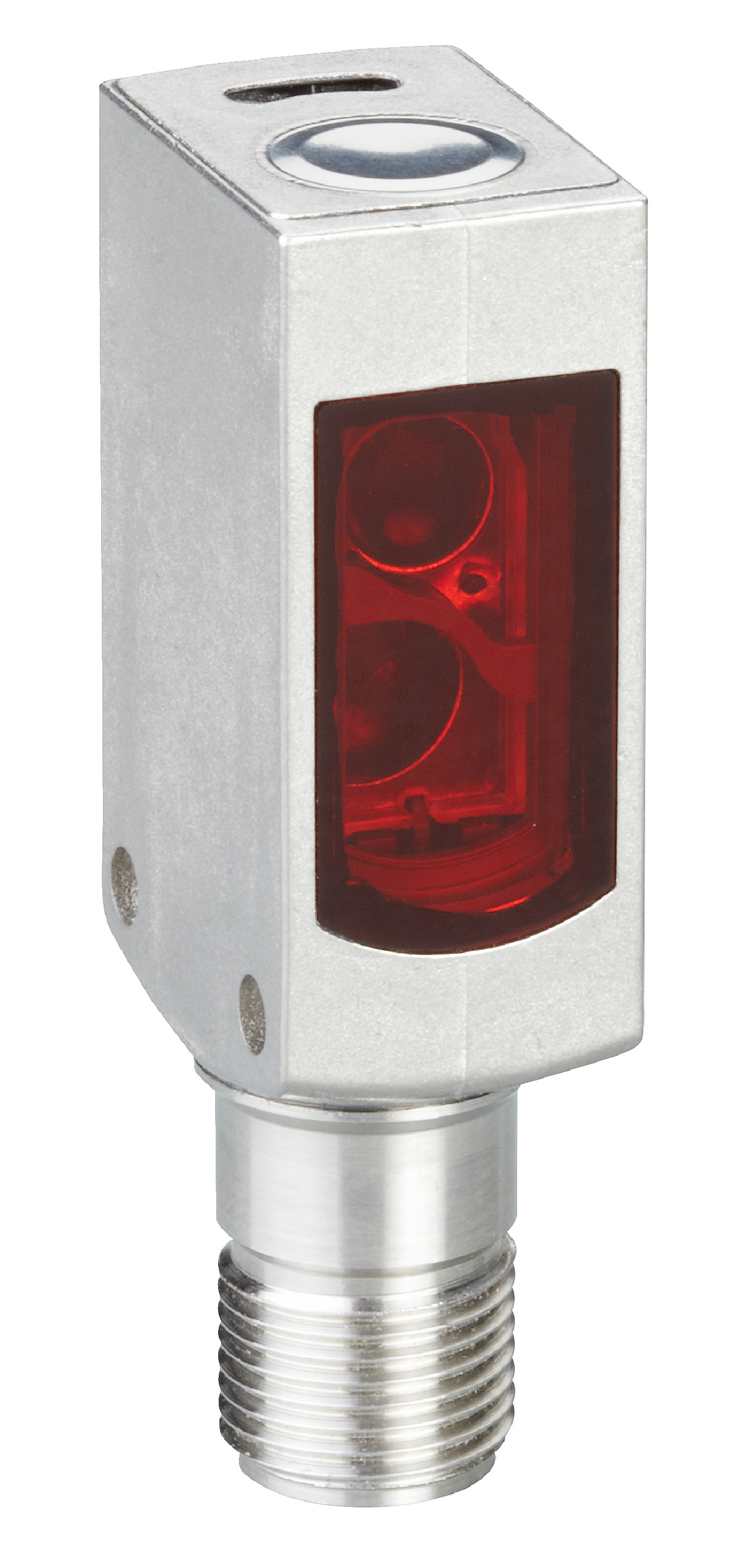

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters and robust IP66/IP67/IP68/IP69K protection for washdown environments. With a visible red light PinPoint LED and a single teach-in button for easy adjustment, this sensor is perfect for detecting transparent objects in hygienic zones, ensuring reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 5 m
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Output type: PNP digital output with light/dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30°C to +70°C
- Connection: Cable with M12 male connector, 4-pin, 150 mm cable length
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Communication: IO-Link COM2 (38.4 kBaud), 16 Bit process data length
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- Visible red light PinPoint LED with 650 nm wavelength
- Single teach-in button for adjustment
- Housing designed for washdown environments
- External input and multiple output configurations including device contamination alarm
- AutoAdapt feature for optimized sensing
- High switching frequency up to 1000 Hz
- Robust stainless steel V4A housing
- IP66, IP67, IP68, IP69K rated for harsh environments
- Wide ambient operating temperature range from -30°C to +70°C
- IO-Link communication interface with 38.4 kBaud data rate
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Compliant with China-RoHS and ECOLAB standards ensuring reduced environmental impact
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK WLG4SC-3P3432VA00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
