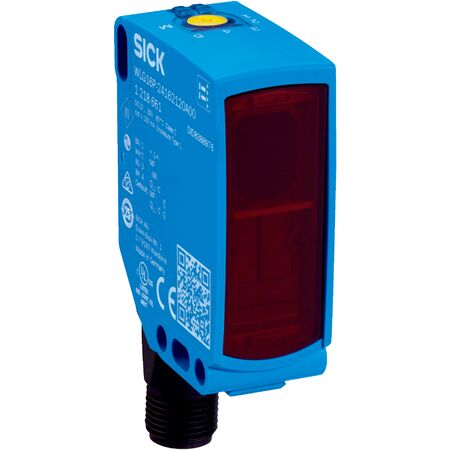

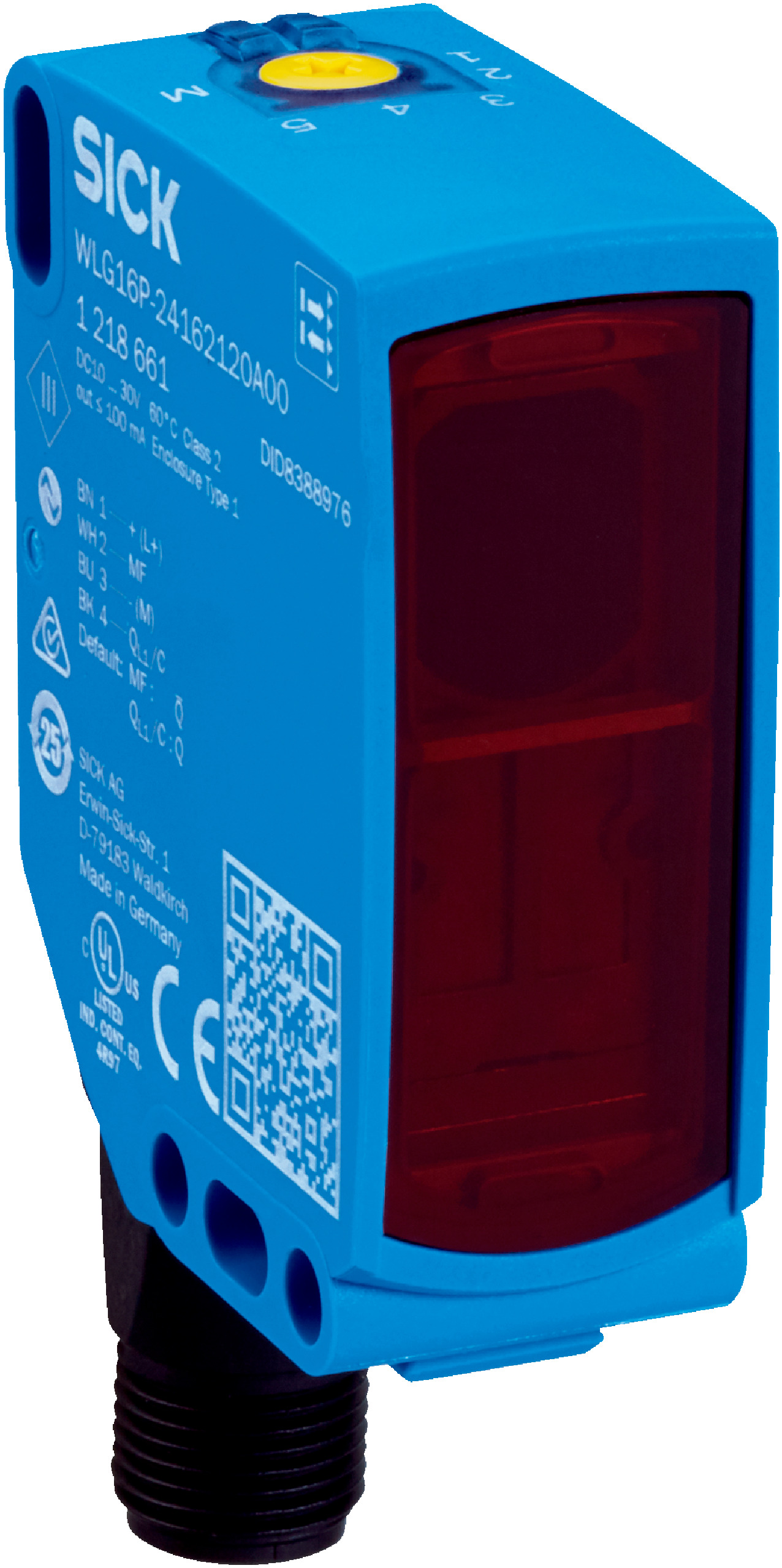

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WLG16P-24167120A00 is designed for industrial automation, featuring a 5m sensing range without a reflector and a durable IP66/IP67/IP69 rated enclosure. With PinPoint LED technology and a long LED service life of 100,000 hours, this sensor is perfect for detecting transparent objects in harsh environments, ensuring reliable performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector
- Sensing range: 0 m to 5 m
- Reference reflector: Reflector P250F
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull PNP/NPN, dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- Protection class: III
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens technology
- Sensing range from 0 m to 5 m without reflector
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included for enhanced detection
- BluePilot Teach-in plus user mode selector for easy adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for robust protection
- Dual complementary push-pull digital outputs with dark switching
- Long LED service life of 100,000 hours at 25°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Use in harsh environments requiring IP66 to IP69 protection
- Integration in systems requiring IO-Link communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from frequent repairs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG16P-24167120A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
