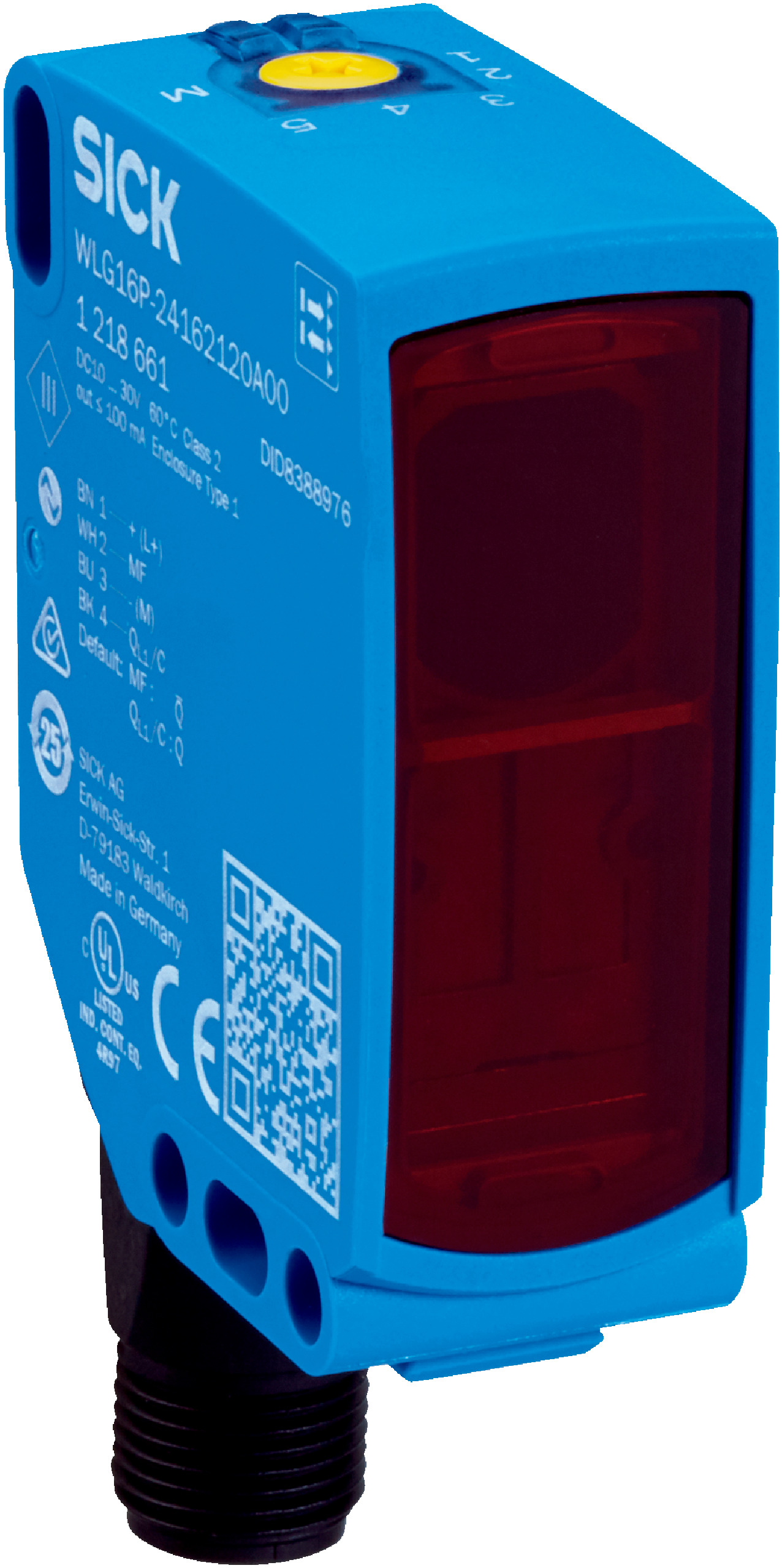

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WLG16P-24162120A00 is designed for industrial automation, featuring a sensing range of 0 m to 5 m without a reflector. With its PinPoint LED technology and robust IP66/IP67/IP69 enclosure, this sensor excels in harsh environments, ensuring reliable object detection and integration with IO-Link systems for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 5 m
- Reference reflector: Reflector P250F
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size at 5 m: Ø 80 mm
- Maximum beam dispersion: < +/- 1.0° at 23°C
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- Weight: Approx. 50 g
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens technology
- Sensing range from 0 m to 5 m without reflector
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included for enhanced detection
- BluePilot Teach-in plus user mode selector for easy adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for robust protection
- Dual complementary push-pull digital outputs with light/dark switching
- Long LED service life of 100,000 hours at 25°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment, especially for IO-Link configuration.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Use in harsh environments requiring IP66 to IP69 protection
- Integration in systems requiring IO-Link communication
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG16P-24162120A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
