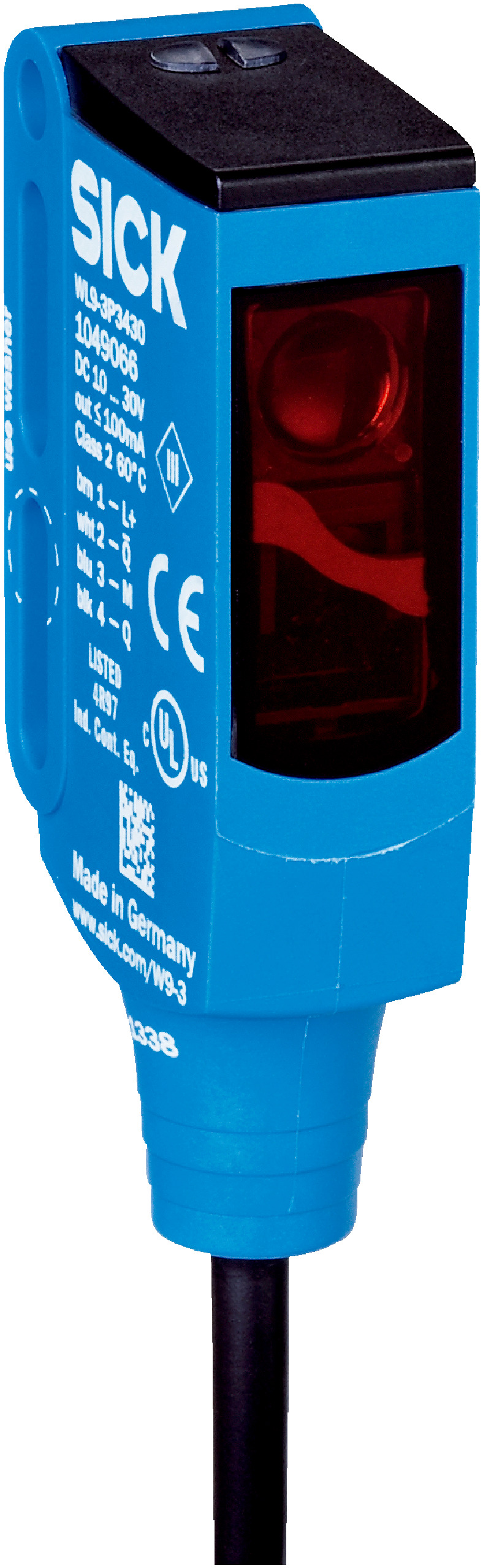

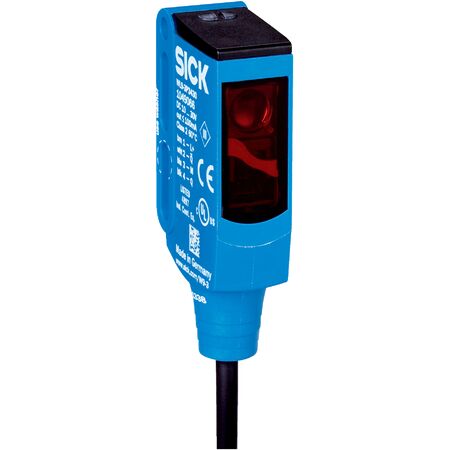

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P3030S01 is designed for industrial automation, featuring a sensing range of up to 5 meters without a reflector and a high switching frequency of 1,000 Hz. With its robust IP66/IP67/IP69K rated housing, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1050913
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL9 sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m without reflector, 0 m to 3 m standard
- Light source: PinPoint LED, visible red light at 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Current consumption: 30 mA
- Switching output: PNP complementary with light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 290 mm length
- Housing material: Plastic VISTAL®, Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Protection class: III
- Weight: 80 g
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 5 meters without reflector
- Rectangular housing design with M3 mounting hole
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Complementary PNP switching output with light/dark switching mode
- Robust plastic housing (VISTAL®) and optics (PMMA) with IP66, IP67, IP69K protection
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter and special device features included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9-3P3030S01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
