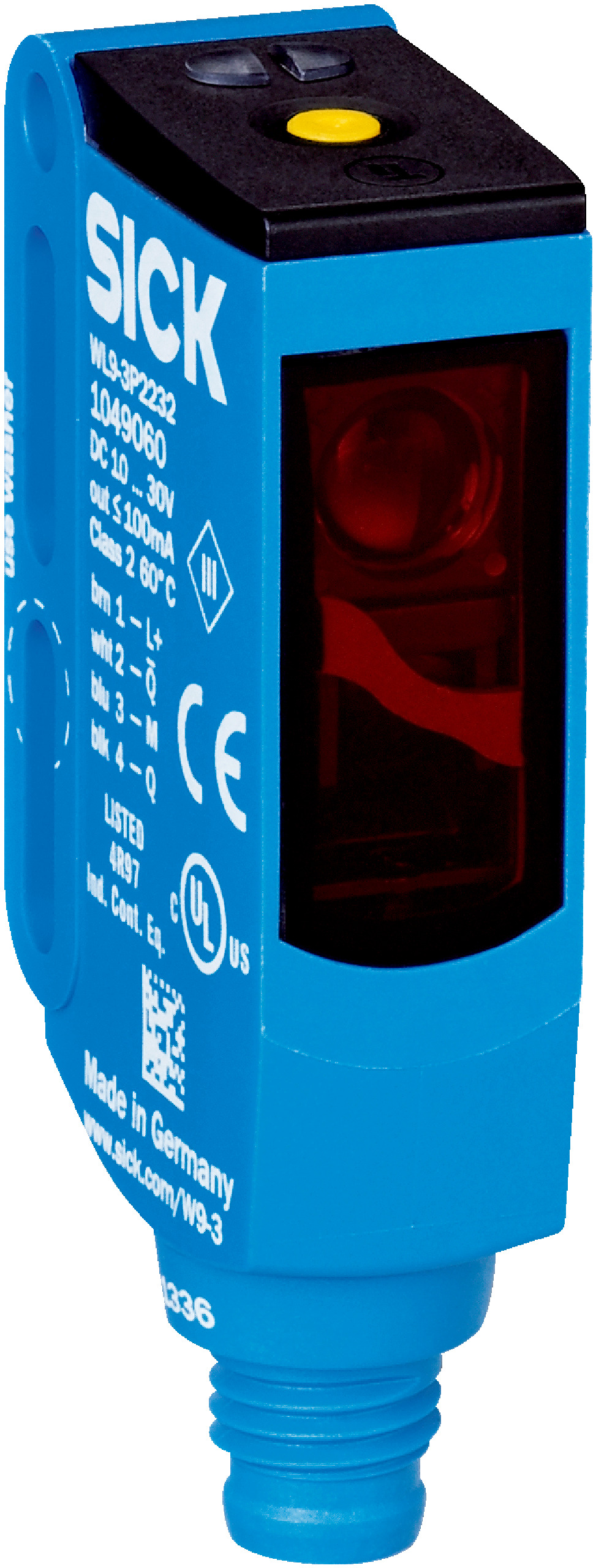

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a 5m sensing range and a visible red light source. With a high switching frequency of 5,000 Hz and robust IP66/IP67/IP69K protection, it's perfect for object detection and safety monitoring in manufacturing processes. Built for durability and efficiency, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max.: 0 m to 5 m without reflector
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 1.5 m: Ø 45 mm
- Wavelength: 650 nm
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 100 µs
- Switching frequency: 5,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Polarizing filter included
- Special device included
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 650 nm wavelength
- Sensing range up to 5 meters without reflector
- Single teach-in button for easy adjustment
- Horizontal slotted diaphragm for precise detection
- High switching frequency of 5,000 Hz
- Protection class III with IP66, IP67, and IP69K ratings
- Robust plastic housing made of VISTAL® and PMMA optics
- Wide ambient operating temperature range from -40°C to +60°C
- Polarizing filter and special device features included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
- Long operational life reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P2232S09 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
