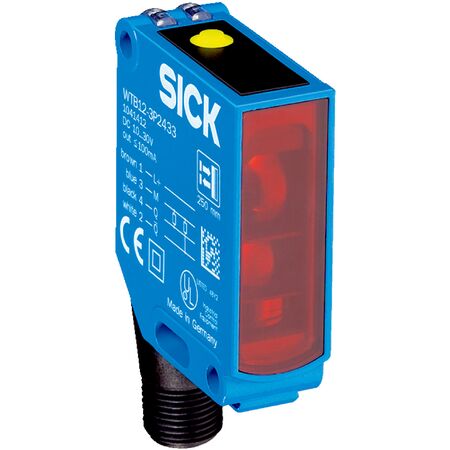

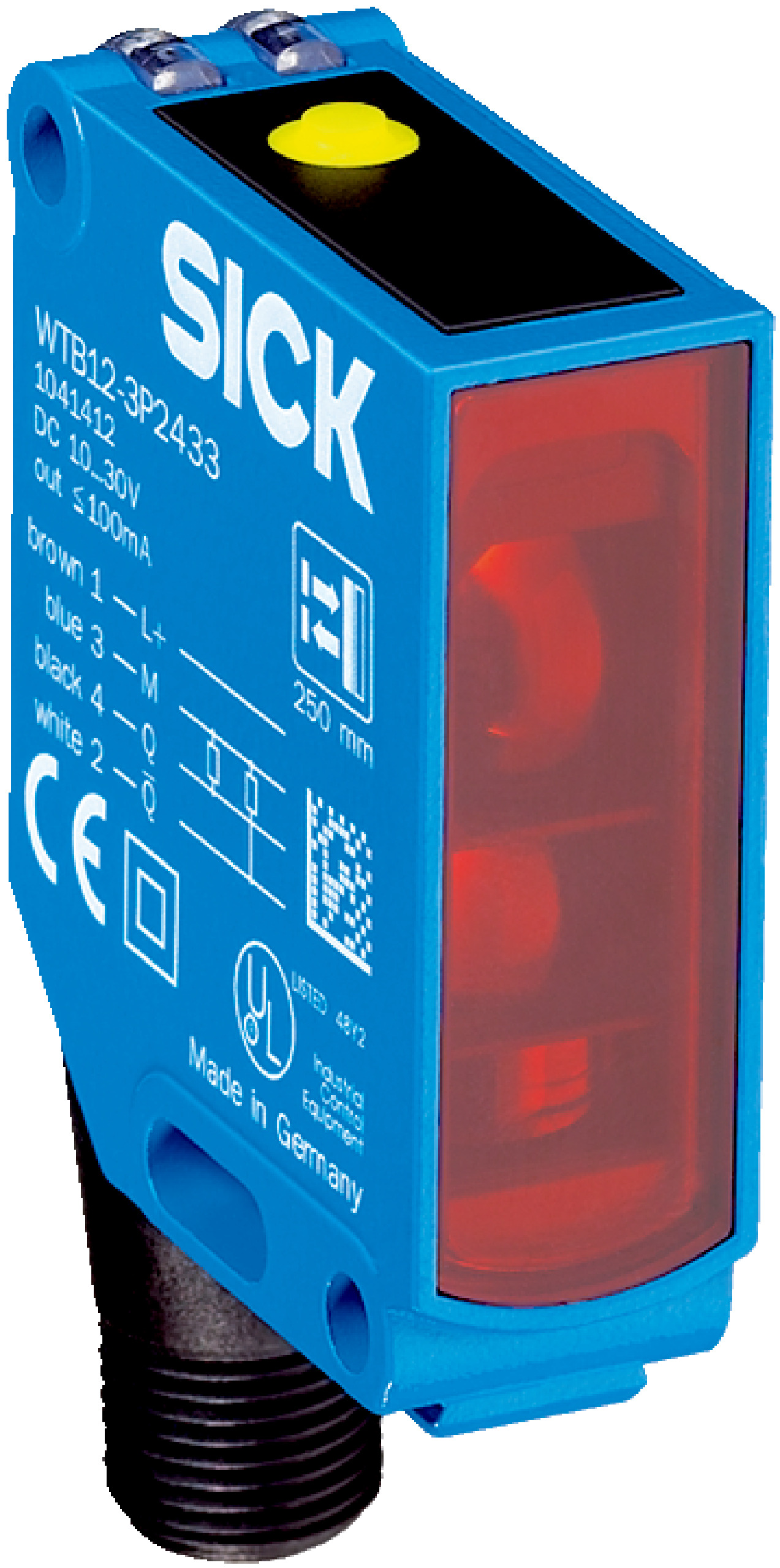

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP67 Rated | PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters without a reflector and a robust IP66/IP67 rated housing. With a PinPoint LED light source and IO-Link communication, it ensures reliable object detection and monitoring in manufacturing processes, making it ideal for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m without reflector
- Polarisation filter: Yes
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size: Ø 100 mm at 3 m distance
- Adjustment: IO-Link, Single teach-in button
- Angle of dispersion: Approx. 1.5°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Digital output: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: 100 µs repeatability, switching frequency up to 1,500 Hz
- Housing: Metal zinc diecast with plastic PMMA front screen
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Communication: IO-Link COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters without reflector
- Polarisation filter for reliable detection
- PinPoint LED visible red light with 640 nm wavelength
- IO-Link communication interface with 38.4 kBaud data rate
- Light/dark switching mode with PNP digital output
- Robust metal zinc diecast housing with IP66/IP67 rating
- Wide ambient operating temperature range from -40°C to +60°C
- Integrated contamination display and device status diagnostics
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Compliant with China-RoHS and ECOLAB certificates ensuring environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL12C-3P2432A91 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
