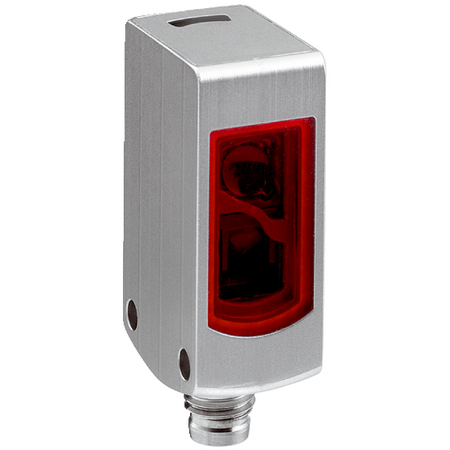

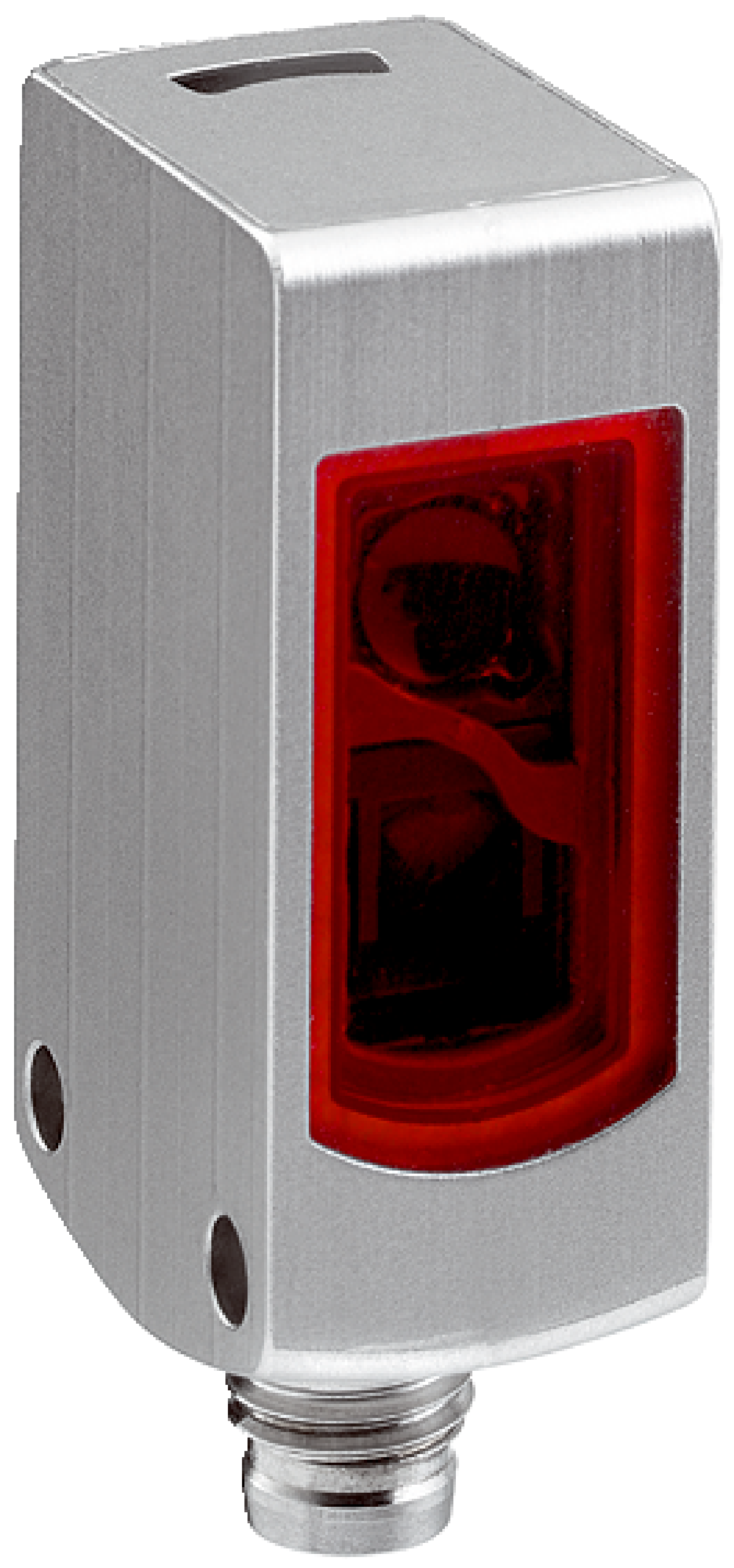

Photoelectric Retro-Reflective Sensor WLG4S-3P3432V | 5m Sensing Range | IP66 to IP69K Rated | by SICK
The WLG4S-3P3432V Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters and a robust stainless steel housing. With a fast response time of under 0.5 ms and high protection ratings (IP66 to IP69K), it's perfect for hygienic and washdown environments, ensuring reliable object detection even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, WLG4S sensor, SICK photoelectric switch
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m maximum
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Output type: PNP digital output with light/dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable: Plastic, PVC, 150 mm length
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filter included
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button adjustment
- AutoAdapt feature for optimized sensing
- Housing designed for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Robust stainless steel V4A housing
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Designed for washdown zones reducing need for additional protective enclosures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLG4S-3P3432V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
