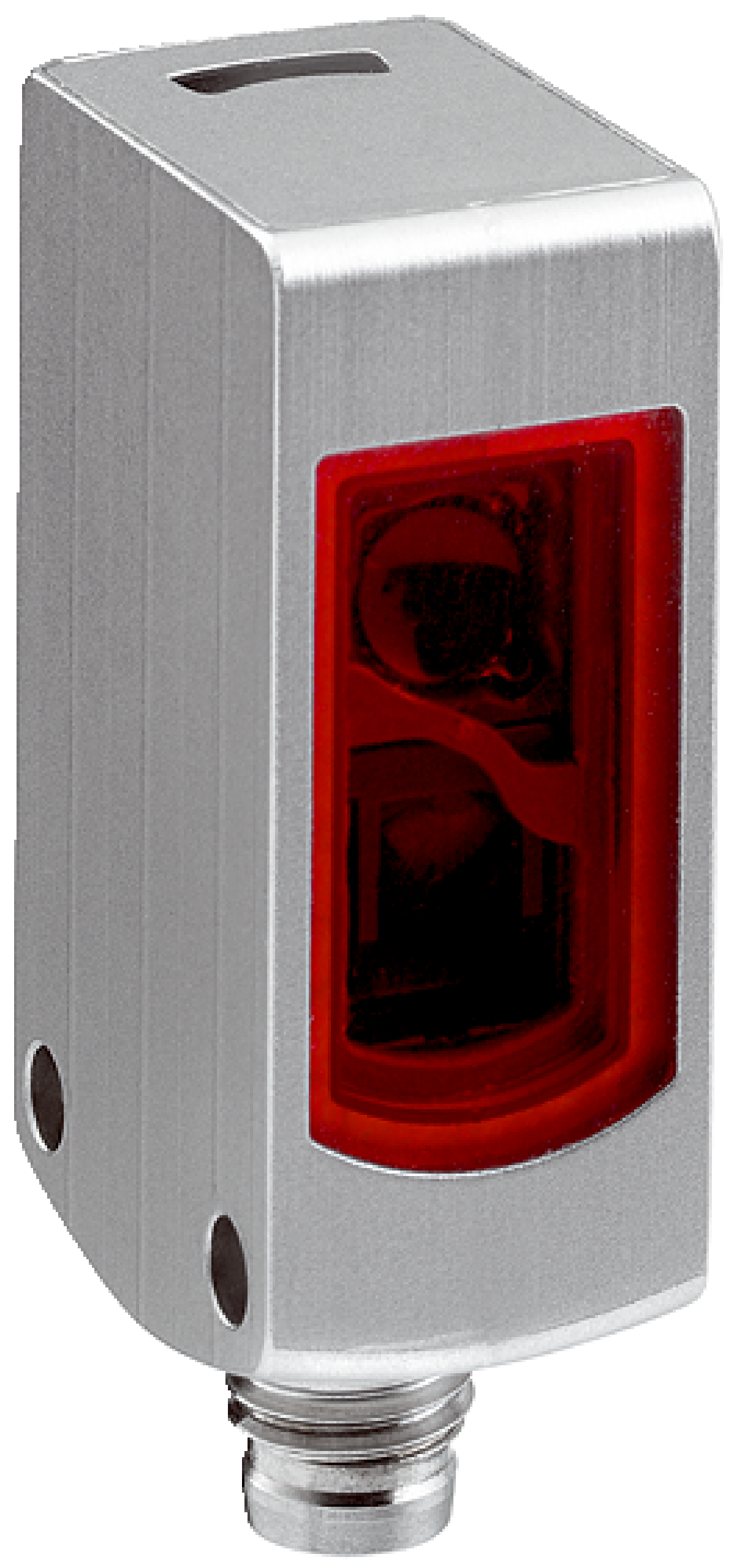

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | IP66/IP69K Rated | Slim Stainless Steel Housing | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With its durable IP66/IP69K rated stainless steel housing, it's perfect for hygienic washdown zones and can detect transparent objects with precision. Ideal for professionals seeking reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, Washdown sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range: 0 m to 5 m maximum
- Polarisation filter: Yes
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output: PNP, dark switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Housing: Metal stainless steel V4A (1.4404, 316L), slim design
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filter included
- PinPoint LED visible red light with 650 nm wavelength
- AutoAdapt feature for optimized sensing
- Housing designed for washdown environments
- Slim stainless steel V4A (1.4404, 316L) metal housing
- IP66, IP67, IP68, IP69K rated enclosure for harsh environments
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- PNP dark switching digital output with max 100 mA output current
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

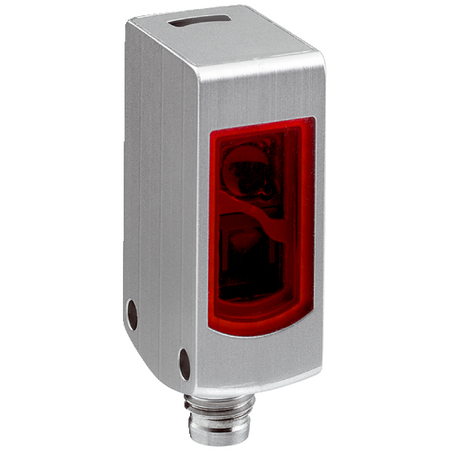

The SICK WLG4S-3F2235V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
