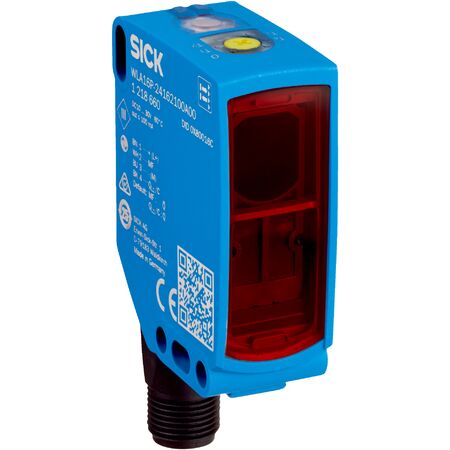

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | PinPoint LED | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0 m to 5 m without a reflector. With its PinPoint LED technology emitting visible red light at 635 nm, this sensor effectively detects transparent objects and operates reliably in harsh environments, thanks to its IP66/IP67/IP69 rating and high shock resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector
- Sensing range: 0 m to 5 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary PNP outputs, light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Housing material: Plastic VISTAL® with PMMA front screen
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens technology
- Sensing range from 0 m to 5 m without reflector
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- BluePilot teach-in and user mode selector
- LED indicators for mode, time function, operating status, and object detection
- High shock and vibration resistance
- Protection class III with reverse polarity and short-circuit protection
- IP66, IP67, and IP69 rated enclosure for harsh environments
- Detects transparent objects effectively
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Durable housing reduces environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WLG16P-24812122ZZZ sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
