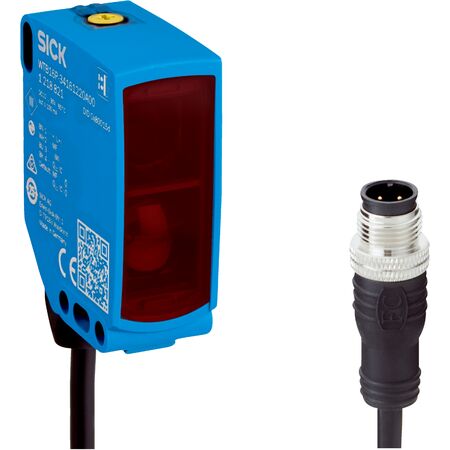

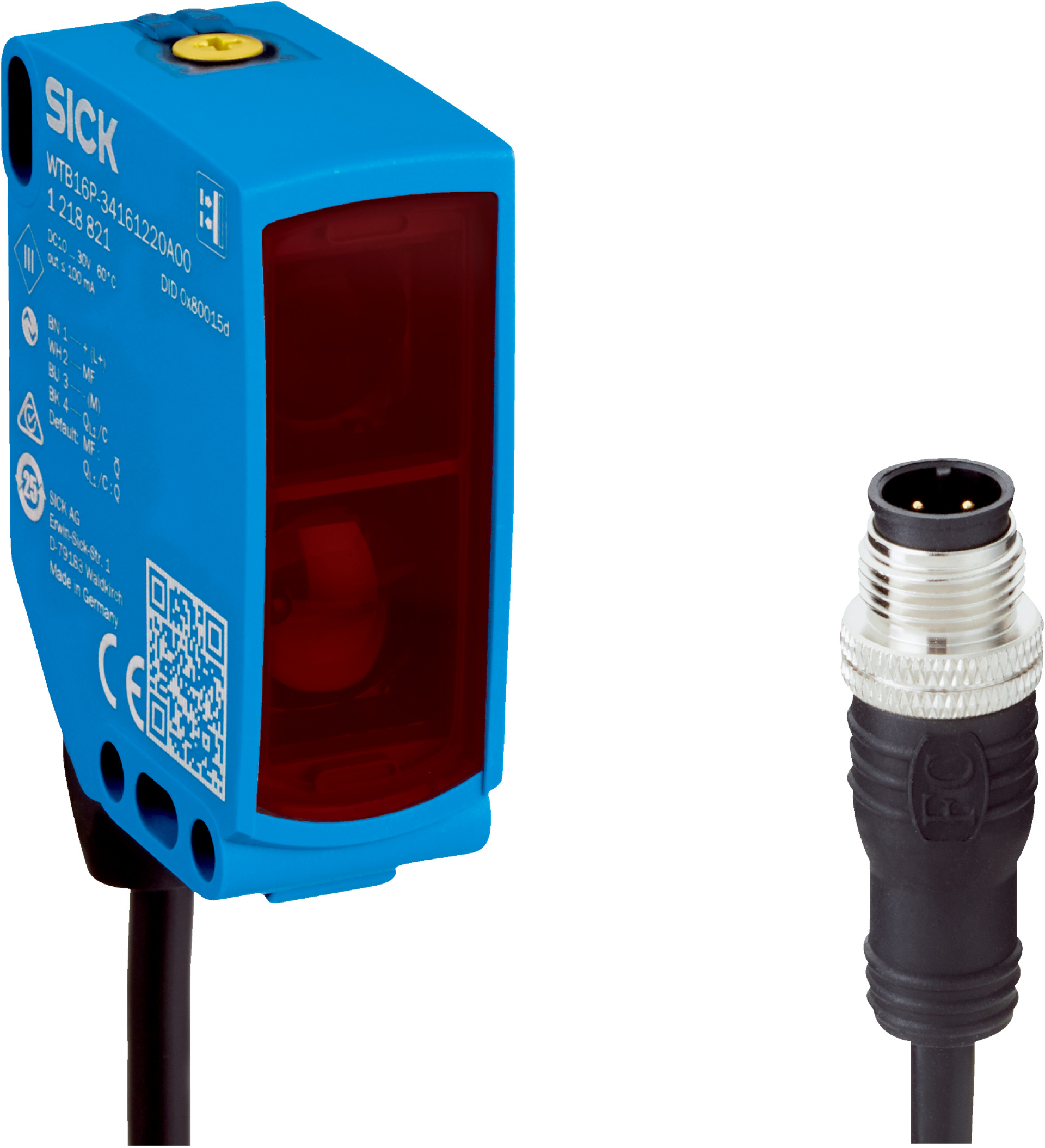

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | PinPoint LED | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of 0 m to 5 m without a reflector and a PinPoint LED light source with a 635 nm wavelength. Ideal for detecting transparent objects in harsh environments, this robust sensor offers high switching frequency and fast response time, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 5 m
- Reference reflector: Reflector P250F
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size at 5 m: Ø 80 mm
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable material: PVC
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens technology
- Sensing range from 0 m to 5 m without reflector
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- BluePilot Teach-in plus user mode selector for easy adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, secure mounting, and correct electrical connections following safety standards.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with a long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG16P-34162120A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
