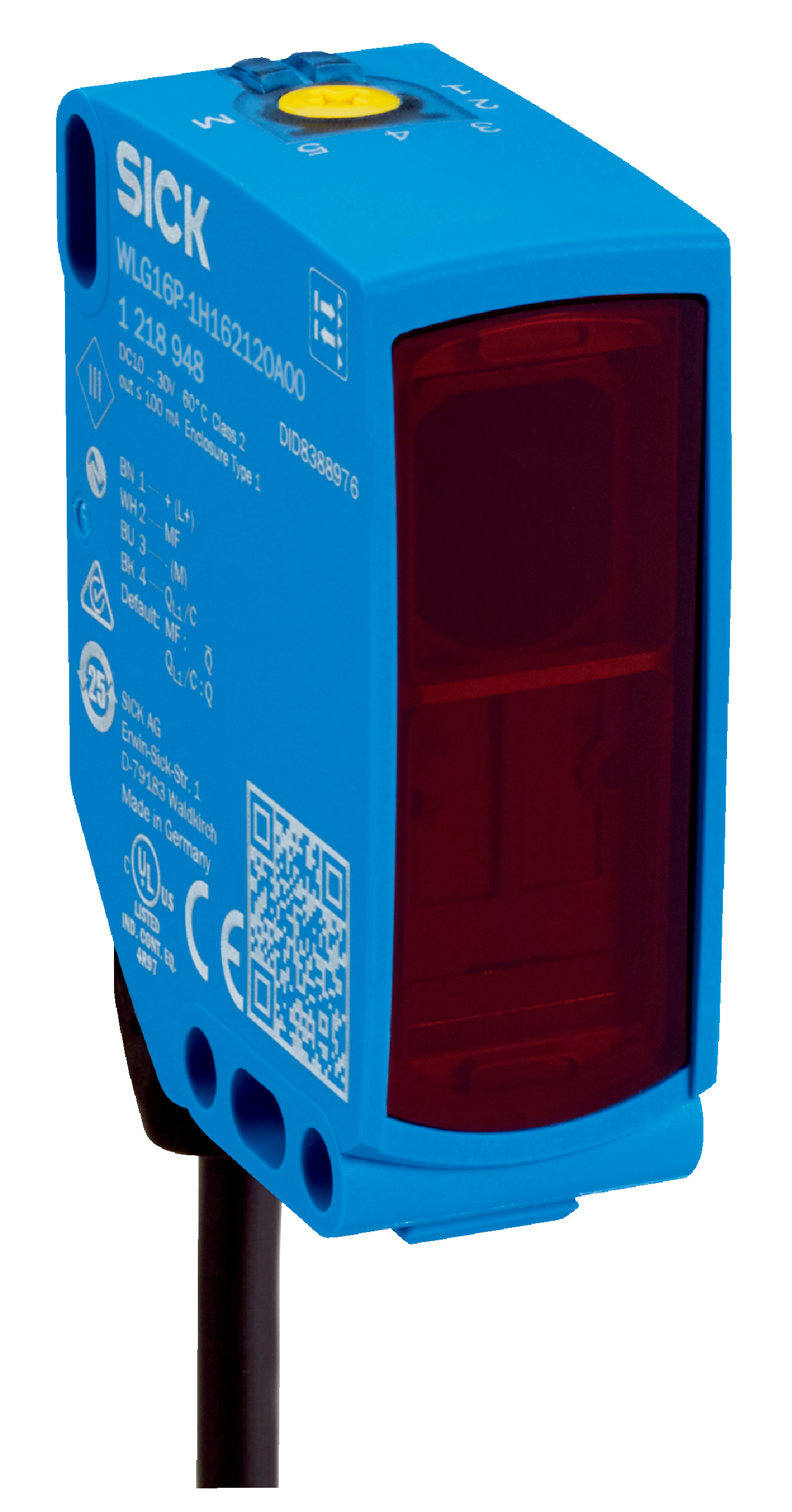

Photoelectric Retro-Reflective Sensor | 5m Sensing Range | PinPoint LED | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of 0 m to 5 m without a reflector and a PinPoint LED light source with a 635 nm wavelength. Ideal for detecting transparent objects in harsh environments, this sensor boasts a robust IP66/IP67/IP69 rated housing, ensuring durability and reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 5 m
- Reference reflector: Reflector P250F
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size at 5 m: Ø 80 mm
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®
- Connection: 4-wire cable, 2 m length
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens technology
- Sensing range from 0 m to 5 m without reflector
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- BluePilot Teach-in plus user mode selector for easy adjustment
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to industrial standards.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Use in harsh environments requiring high IP protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

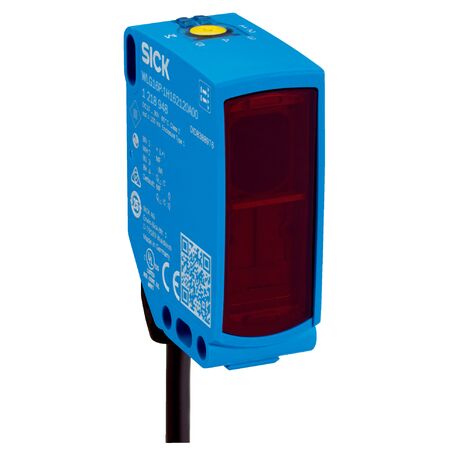

The SICK WLG16P-1H162120A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
