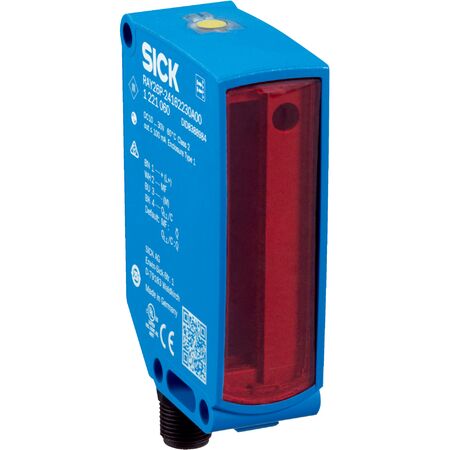

Photoelectric Retro-Reflective Sensor | 5 mm Minimum Object Size | 3 m Sensing Range | IP66/IP67 Rated | by SICK

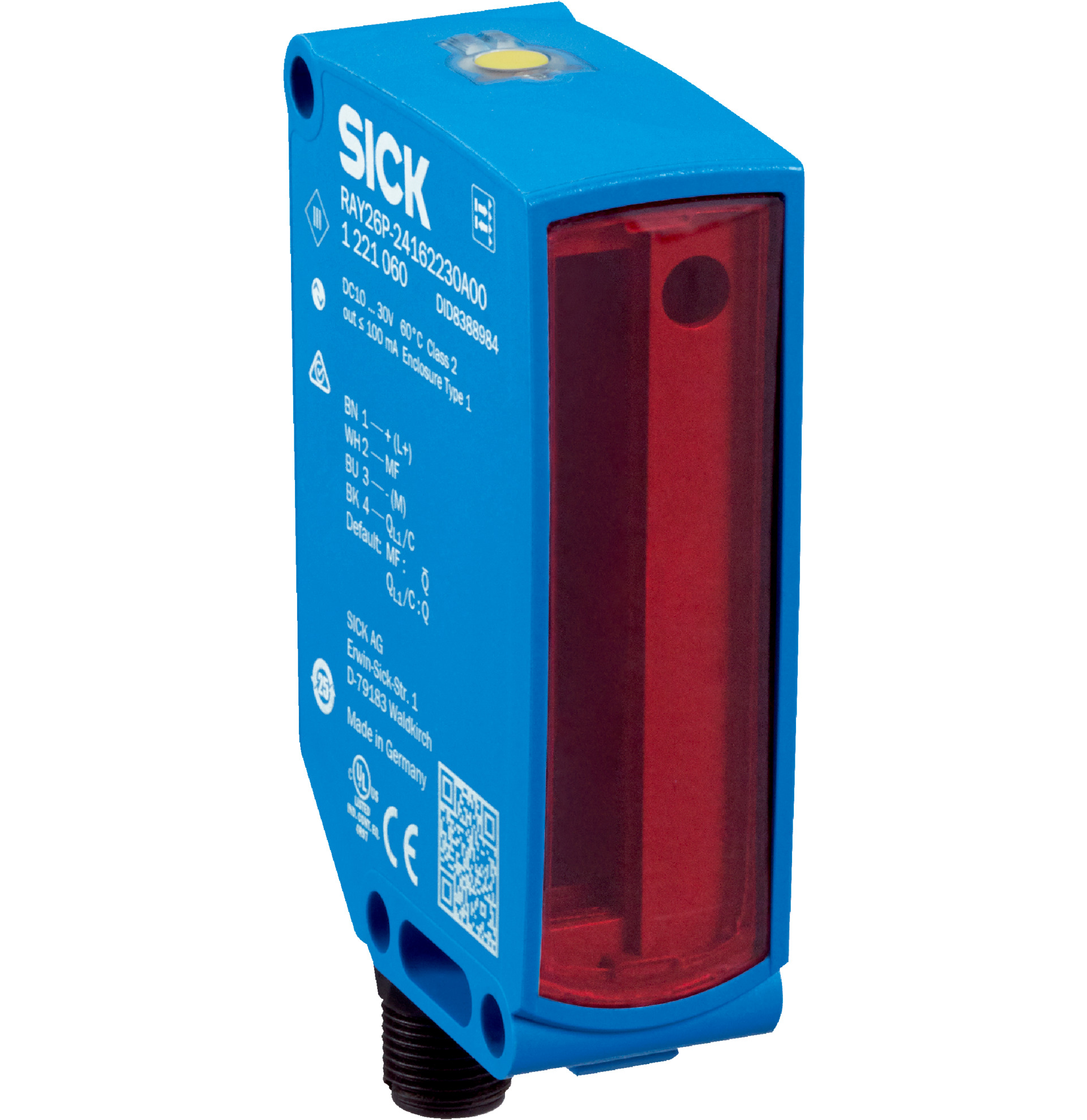

The Photoelectric Retro-Reflective Sensor RAY26P-1H162530A00 is designed for precise object detection in industrial automation. With a minimum object size detection of just 5 mm and a sensing range of up to 3 meters, it excels in monitoring conveyor belts and detecting various object types. Built to withstand harsh environments, this sensor features an IP66/IP67 enclosure rating and operates efficiently in temperatures from -40°C to +60°C, making it a reliable choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance (autocollimation/coaxial optics), Reflex Array
- Minimum object size: 5 mm, position-independent detection within light array
- Detection height: 55 mm
- Sensing range max.: 0 m to 3 m
- Light source: PinPoint LED, wavelength 635 nm
- Light spot size at 1 m: 55 mm x 9 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA to 40 mA
- Switching output: Push-pull PNP/NPN
- Output function: Configurable via IO-Link and pin settings
- Response time: ≤ 3 ms
- Switching frequency: 170 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Minimum object size detection of 5 mm
- Sensing range up to 3 meters
- Rectangular housing design with IP66 and IP67 enclosure rating
- BluePilot teach-in and IO-Link adjustment
- Push-pull PNP/NPN switching output with light/dark switching modes
- Fast response time of ≤ 3 ms and switching frequency of 170 Hz
- Manual conveyor belt suppression
- Robust operation in ambient temperatures from -40°C to +60°C
- Plastic VISTAL® housing and PMMA optics material
- Communication via IO-Link V1.1 with 2.3 ms cycle time
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Conveyor belt monitoring
- Detection of transparent, shiny, perforated, and flat objects
- Position-independent detection within light array
