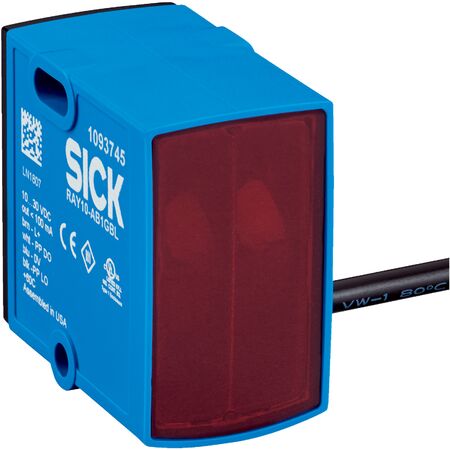

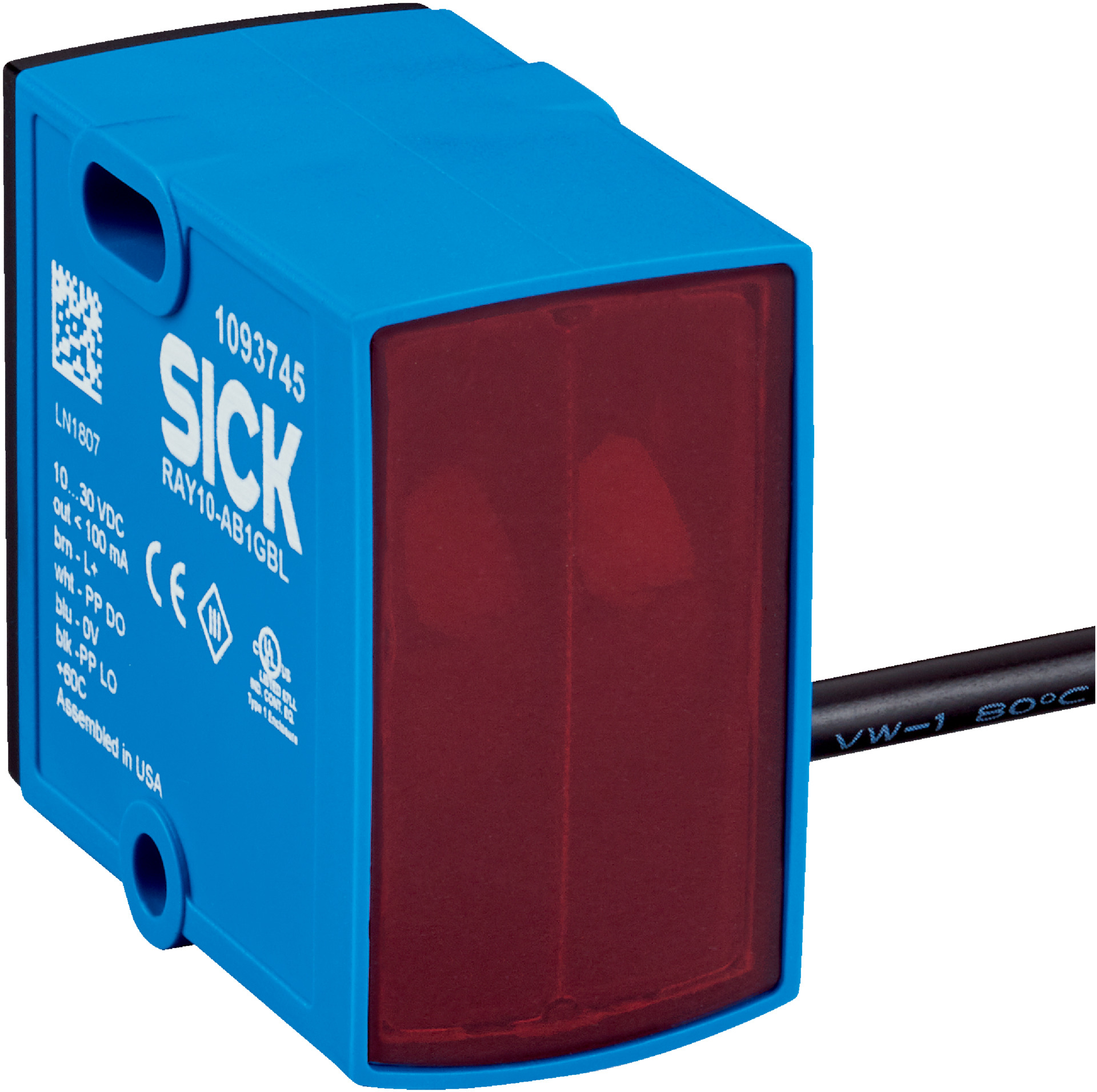

Photoelectric Retro-Reflective Sensor RAY10-PZ3EBL | 5 mm Minimum Object Size | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor RAY10-PZ3EBL is designed for precise object detection in industrial automation. With a minimum object size detection of just 5 mm and a sensing range of up to 1.5 m, this sensor utilizes a visible red PinPoint LED light source for reliable performance. Its IP67 rated enclosure ensures durability against dust and water, making it ideal for various applications, including detecting transparent and shiny objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with Reflex Array
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 m to 1.5 m
- Distance to reflector: 0.3 m to 1.5 m
- Light source: PinPoint LED, wavelength 635 nm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 1 m
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m
- Visible red light with PinPoint LED light source
- Potentiometer adjustment
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Cable with M8 male connector, 4-pin, 1 m length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RAY10-PZ3EBL Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
