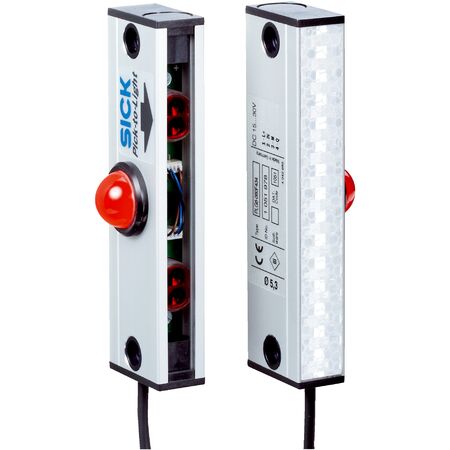

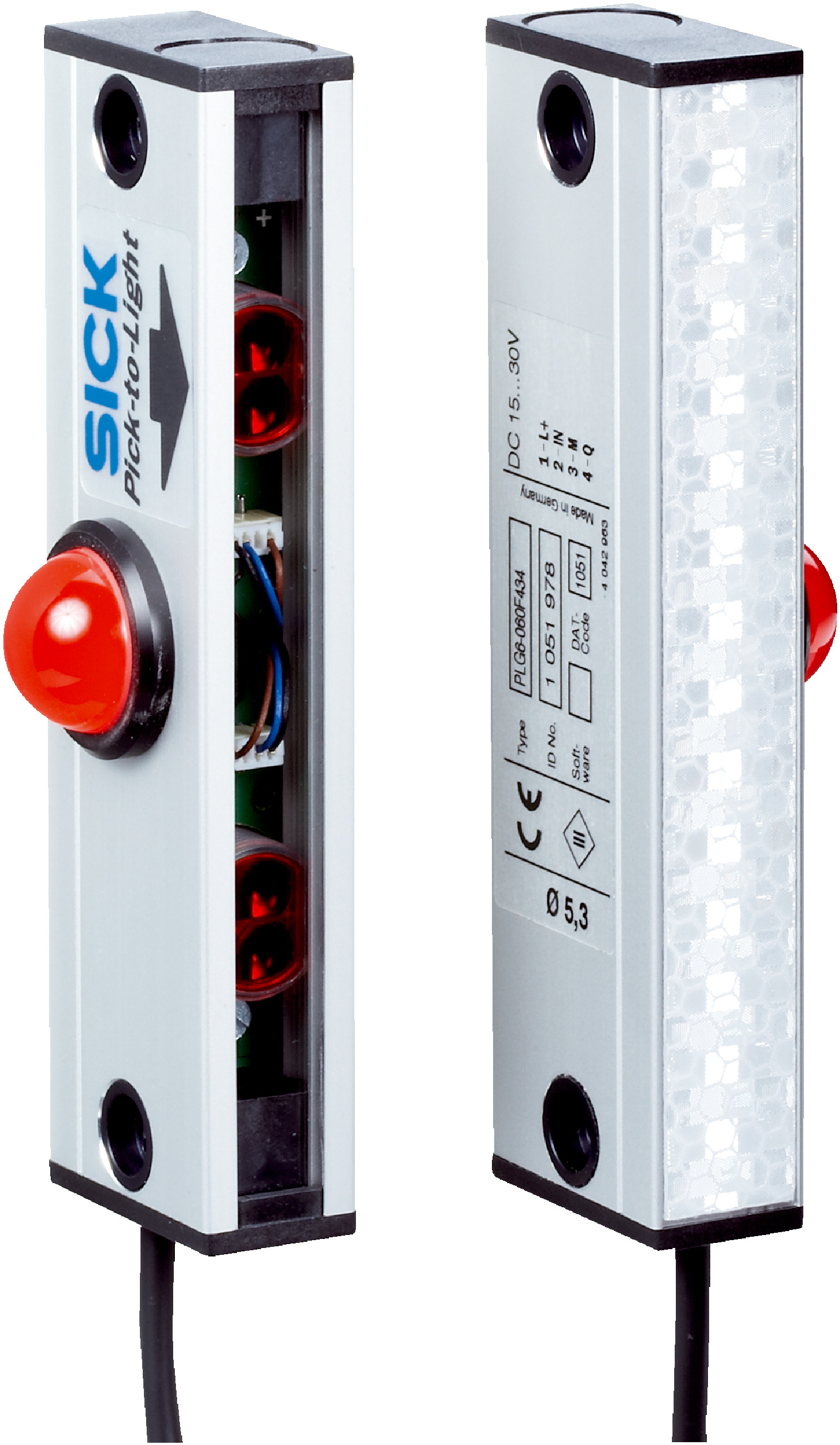

Photoelectric Retro-Reflective Sensor PLG6-060F434 | 60 mm Beam Separation | LED Indication | IP40 Rated | by SICK
The Photoelectric Retro-Reflective Sensor PLG6-060F434 is designed for precise object detection in industrial automation. With a minimum detectable object size of 70 mm and two parallel beams with 60 mm separation, it ensures reliable performance. Built with a robust aluminum housing and IP40 rating, this sensor is perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor PLG6-060F434 | 60 mm Beam Separation | LED Indication | IP40 Rated | by SICK
Brand: SICK
SKU: 1051978
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, SICK sensor PLG6-060F434
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: 70 mm parallel beam
- Beam separation: 60 mm
- Number of beams: 2
- Detection height: 60 mm
- Wavelength: 660 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: 50 mA
- Power consumption receiver: < 50 mA
- Ripple: < 5 V pp
- Output current max: ≤ 50 mA
- Initialization time: < 1 s
- Switching output: PNP
- Output mode: Q dark switching
- Current consumption job LED: 30 mA
- Connection type: Cable with M12 male connector, 4-pin, 280 mm
- Housing material: Aluminum
- Indication: LED
- Enclosure rating: IP40
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 0.5 m
- Minimum range: ≥ 60 mm
- Operating range: 0.35 m
- Response time: 5 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 130mm x 37mm x 32mm
- Weight: 0.5 kg
Key Features
- Photoelectric retro-reflective sensor principle
- Two parallel beams with 60 mm separation
- Minimum detectable object size of 70 mm
- Detection height of 60 mm
- LED indication for status
- Robust aluminum housing with IP40 rating
- Short response time of 5 ms
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient DC voltage operation
- Durable aluminum housing reduces waste through long product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PLG6-060F434 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
