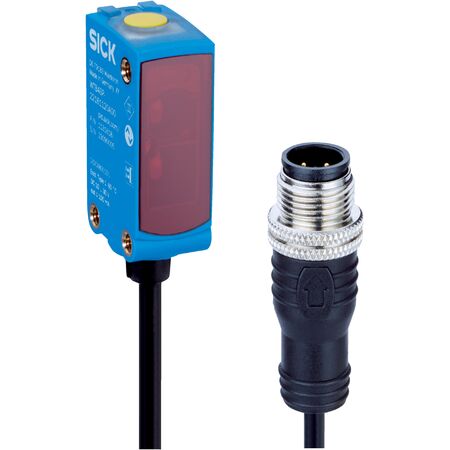

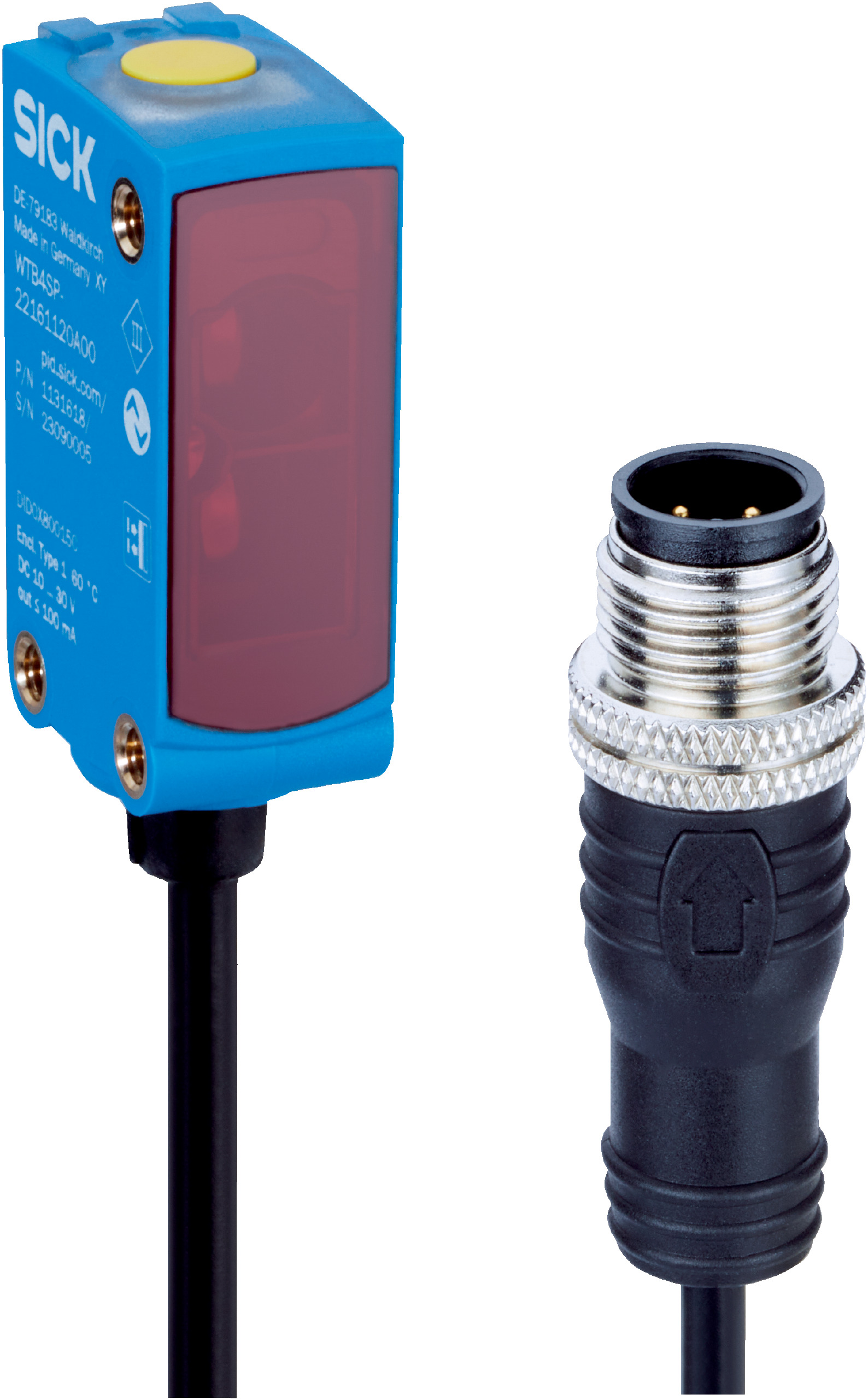

Photoelectric Retro-Reflective Sensor | 7.1m Sensing Range | IO-Link V1.1 | IP66/IP67 Rated | by SICK
The WLG4SP-84161130A00 photoelectric retro-reflective sensor is designed for industrial automation, featuring a sensing range of up to 7.1 meters and a PinPoint LED light source with a 635 nm wavelength. With its robust IP66/IP67 enclosure rating, this sensor is perfect for detecting transparent and film-wrapped objects in harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector
- Sensing range: 0 m to 7.1 m, recommended 0 m to 5 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: 150 mm at 5 m distance
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 190 mm length
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Material: Plastic VISTAL® housing, PMMA front screen, PVC cable
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens and MultiMode
- Sensing range from 0 m to 7.1 m, optimal 0 m to 5 m
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor configuration and Smart Task functions
- Dual push-pull digital outputs (PNP/NPN) with light/dark switching
- High protection class III with IP66 and IP67 enclosure rating
- Robust design with plastic VISTAL® housing and PMMA front screen
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 1000 Hz
- LED indicators for alignment, operation, and light beam status
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment, wiring, and configuration via IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Detecting transparent objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG4SP-84161130A00 photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
