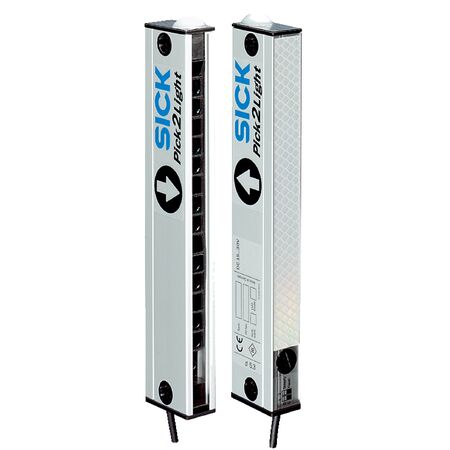

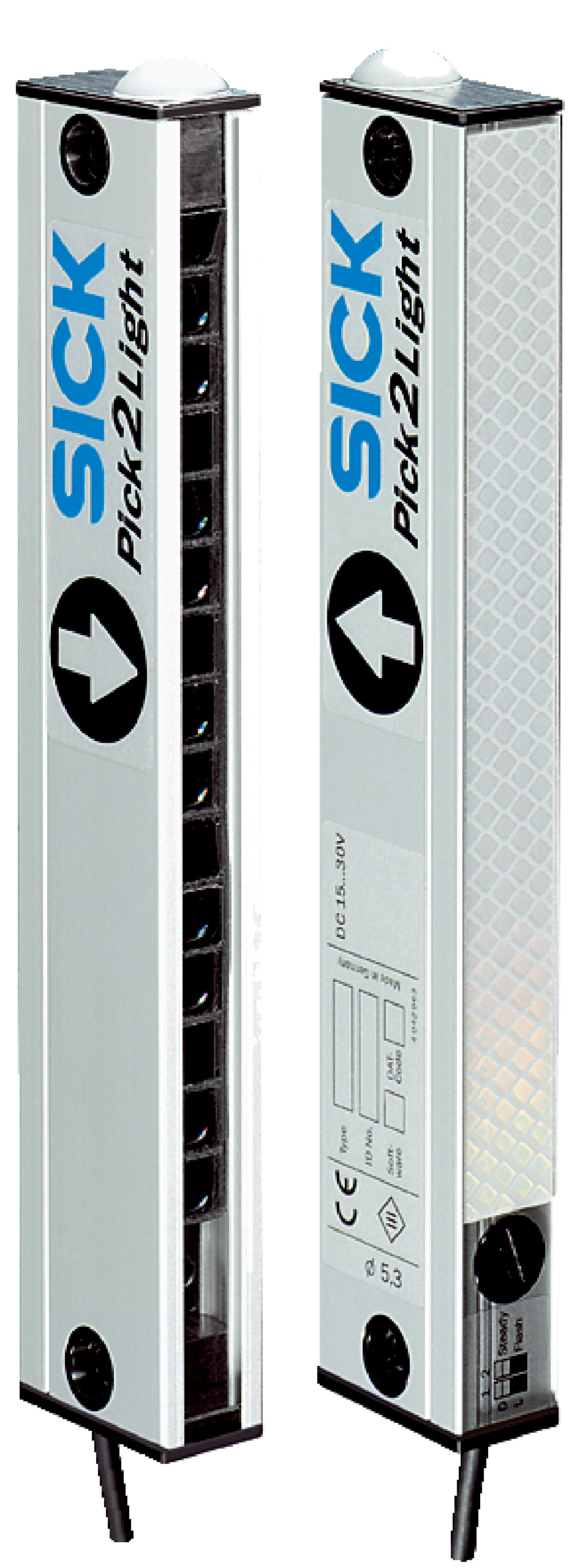

Photoelectric Retro-Reflective Sensor | 8 Beams & 30 mm Separation | IP54 Rated | by SICK
The Photoelectric Retro-Reflective Sensor PLG3-210F431 is designed for precise object detection in industrial automation. With 8 beams and a 30 mm beam separation, it ensures reliable performance with a minimum detectable object size of 35 mm. Ideal for manufacturing process control and material handling, this sensor features a robust aluminum housing and an IP54 enclosure rating for durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 8 Beams & 30 mm Separation | IP54 Rated | by SICK
Brand: SICK
SKU: 1028548
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK PLG3 Sensor, Industrial Object Sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 8
- Detection height: 210 mm
- Wavelength: 650 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: < 45 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.6 s
- Switching output: PNP
- Output mode: Q dark switching
- Current consumption job LED: 10 mA
- Connection type: Cable with M12 male connector, 4-pin, 280 mm
- Housing material: Aluminum
- Indication: LED
- Enclosure rating: IP54
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 110 mm
- Operating range: 1.3 m
- Response time: < 80 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Operating temperature: –10 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 279.8mm x 36.6mm x 19.2mm
- Weight: 0.3 kg
Key Features
- Photoelectric retro-reflective sensor principle
- 8 beams with 30 mm beam separation
- Minimum detectable object size of 35 mm
- Detection height of 210 mm
- Operating range of 1.3 m with maximum range of 2 m
- Response time less than 80 ms
- LED indication for operational status
- Robust aluminum housing with IP54 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 45 mA sender power usage
- Durable aluminum housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PLG3-210F431 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
