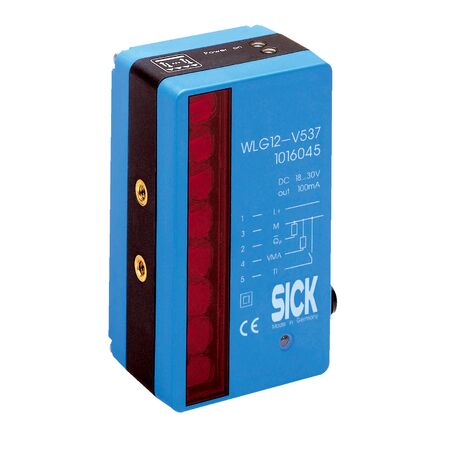

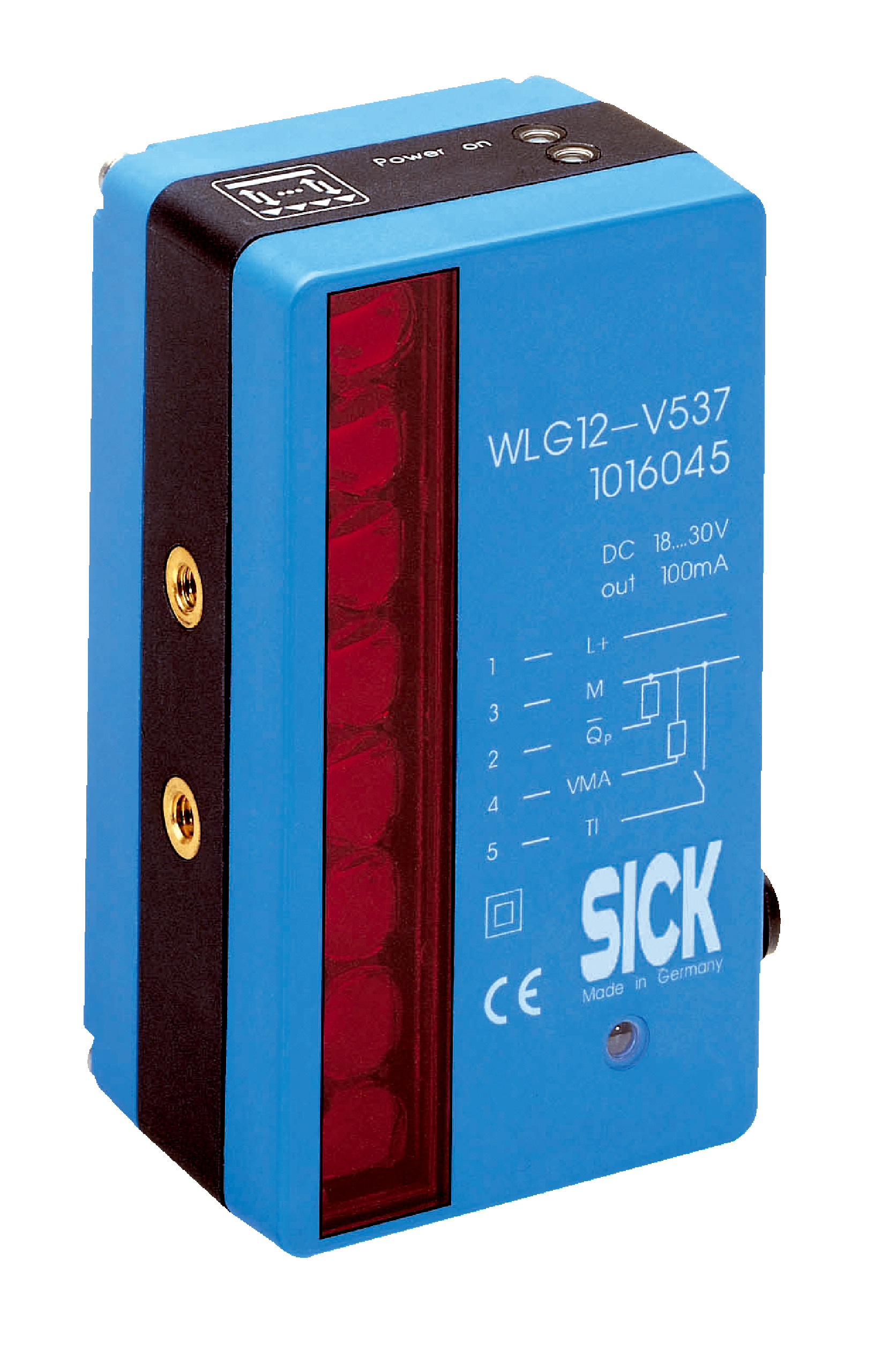

Photoelectric Retro-Reflective Sensor | 8 Beams | IP67 Rated | Adjustable Resolution | by SICK
The Photoelectric Retro-Reflective Sensor WLG12-P537 is designed for precise object detection in industrial automation. With 8 beams and an adjustable resolution from 6 mm to 12.5 mm, it ensures reliable performance in safety and monitoring applications. Its IP67 rated enclosure provides excellent protection against dust and water, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | 8 Beams | IP67 Rated | Adjustable Resolution | by SICK
Brand: SICK
SKU: 1015798
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, Industrial Object Sensor, SICK WLG12 Sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: Parallel beam, 6 mm to 12.5 mm
- Number of beams: 8
- Detection height: 87.5 mm
- Resolution (adjustable): 6 mm to 12.5 mm
- Wavelength: 650 nm
- Supply voltage: DC 18 V to 30 V
- Power consumption sender: 80 mA
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.6 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Teach-in input: PNP
- Connection type: Male connector M12, 5-pin
- Housing material: Plastic
- Enclosure rating: IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: II
- Maximum range: 1.5 m
- Minimum range: ≥ 100 mm
- Response time: 0.6 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –20 °C to +70 °C
- Dimensions (H x L x W): 106mm x 47mm x 62mm
- Weight: 0.23 kg
Key Features
- Photoelectric retro-reflective sensor principle
- 8 beams with 12.5 mm beam separation
- Detection height of 87.5 mm
- Adjustable resolution from 6 mm to 12.5 mm
- LED indication for operational status
- IP67 rated enclosure for dust and water protection
- Shock resistance up to 10 g and vibration resistance up to 5 g
- Short-circuit and reverse polarity protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG12-P537 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
