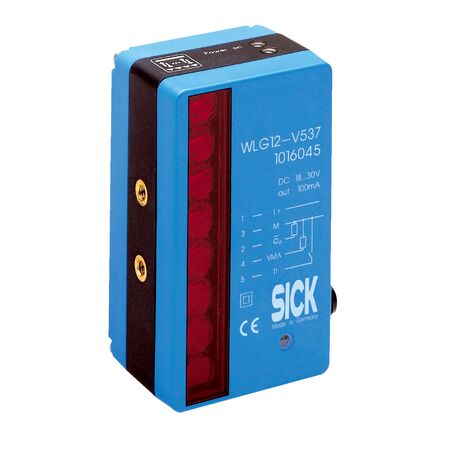

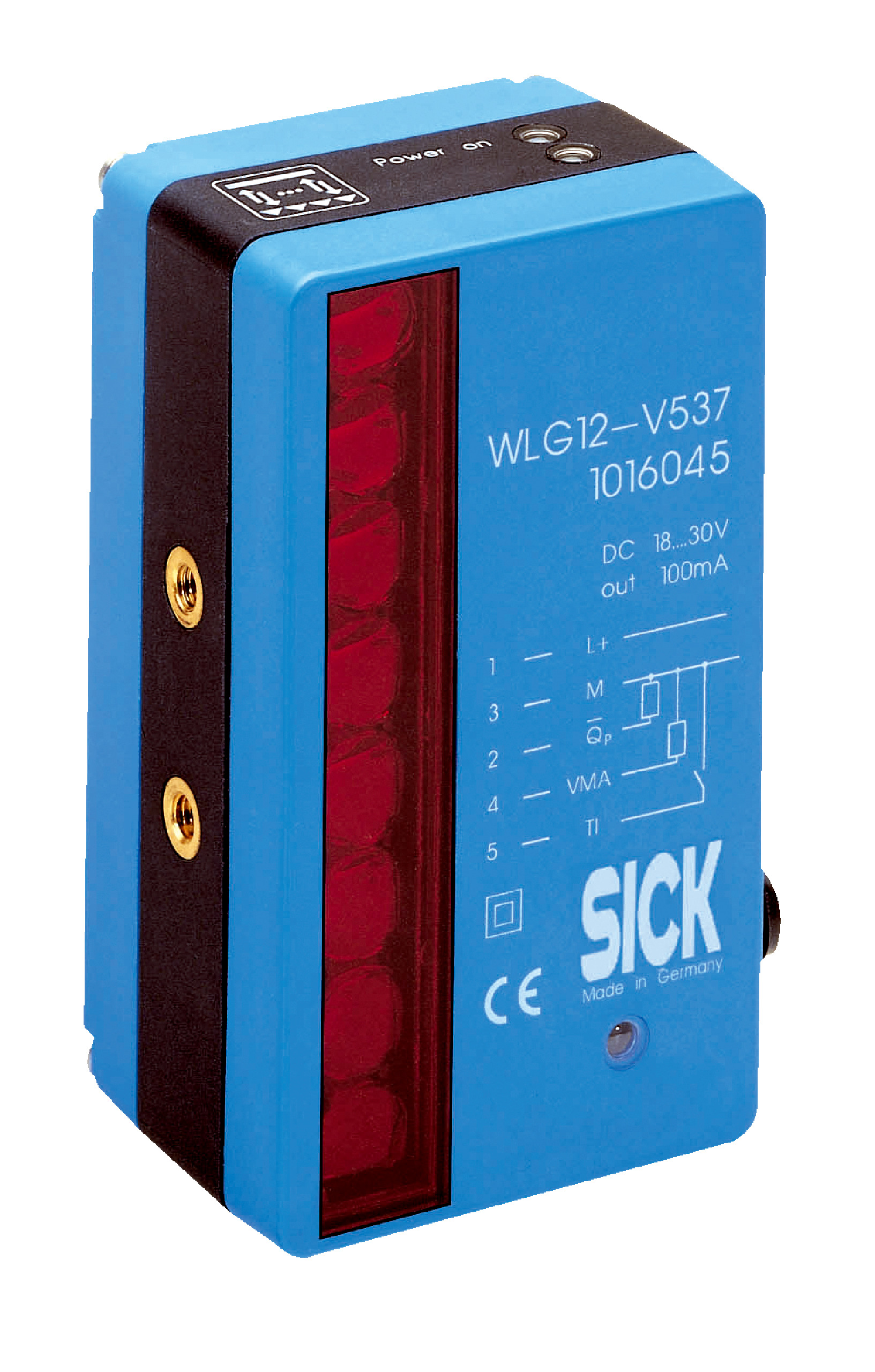

Photoelectric Retro-Reflective Sensor WLG12-V537 | 8 Beams | IP67 Rated | Adjustable Detection | by SICK
The WLG12-V537 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. With 8 beams and an adjustable minimum detectable object size between 6 mm and 12.5 mm, it ensures reliable performance in manufacturing and packaging applications. Its IP67 rating provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WLG12-V537 | 8 Beams | IP67 Rated | Adjustable Detection | by SICK
Brand: SICK
SKU: 1016045
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, SICK WLG12 sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: 6 mm to 12.5 mm
- Number of beams: 8
- Detection height: 87.5 mm
- Resolution adjustable between 6 mm and 12.5 mm
- Wavelength: 650 nm
- Supply voltage: DC 18 V to 30 V
- Power consumption: 80 mA
- Output current max: ≤ 100 mA
- Output type: PNP, Q dark switching
- Initialization time: 0.6 s
- Connection: Male M12, 5-pin connector
- Housing material: Plastic with PMMA front screen
- Enclosure rating: IP67
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 106mm x 47mm x 62mm
- Weight: 0.23 kg
Key Features
- Photoelectric retro-reflective sensor with 8 beams
- Minimum detectable object size adjustable between 6 mm and 12.5 mm
- Detection height of 87.5 mm
- Operating range up to 1.5 meters
- High shock and vibration resistance
- IP67 rated enclosure for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 80 mA reduces energy usage
- High reliability minimizes downtime and resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WLG12-V537 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
