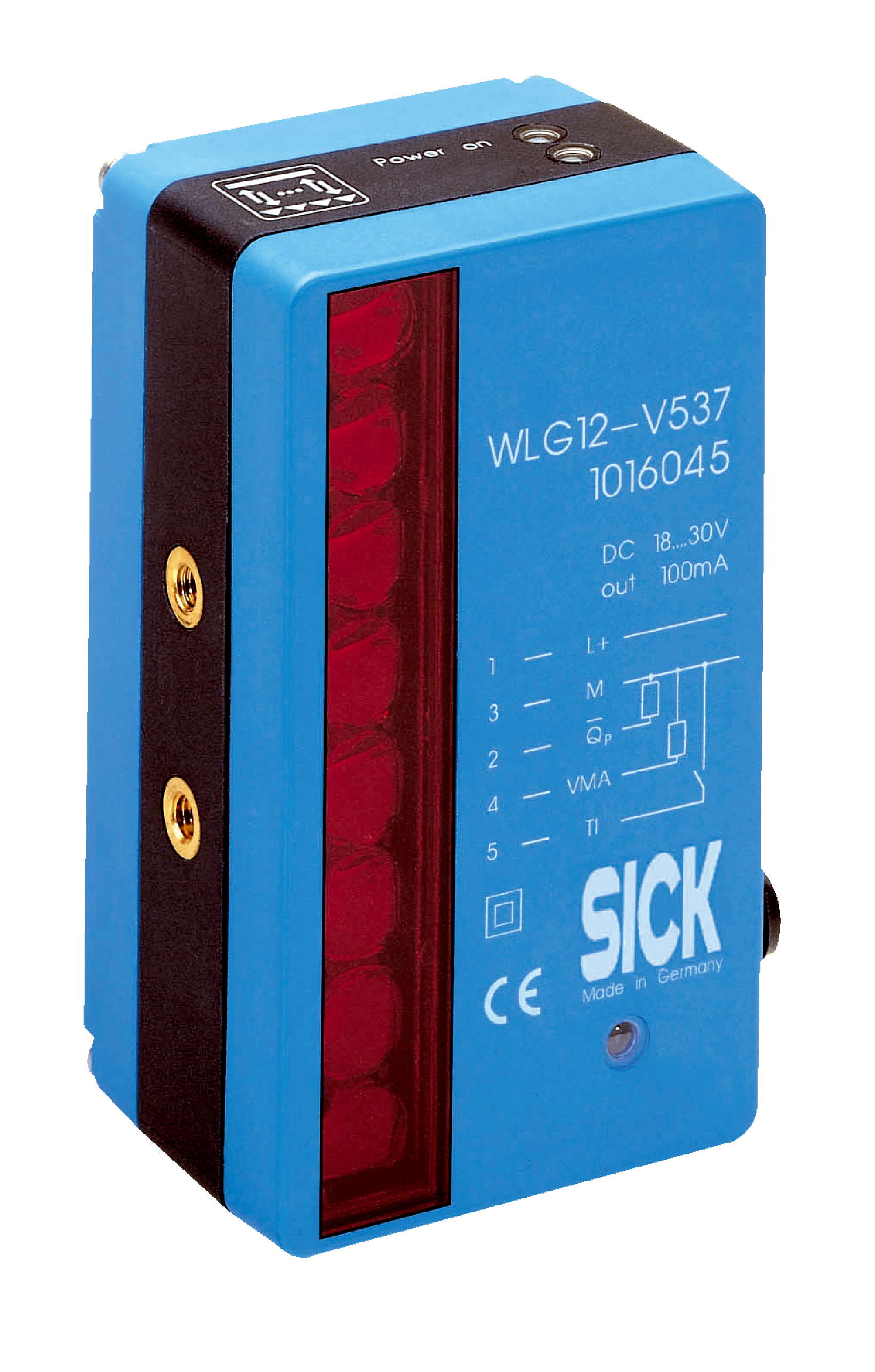

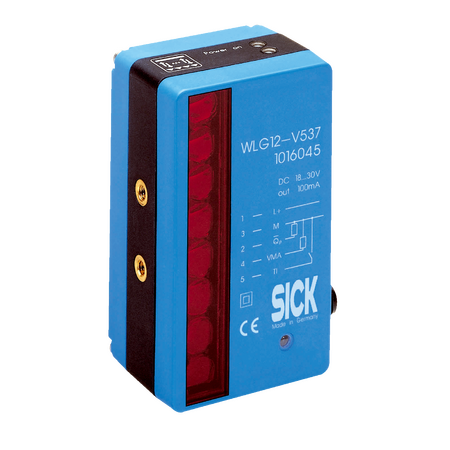

Photoelectric Retro-Reflective Sensor WLG12-V537 | 8 Parallel Beams | IP67 Rated | 0.6 ms Response Time | by SICK
The WLG12-V537 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring 8 parallel beams with adjustable resolution from 6 mm to 12.5 mm. With an IP67 rated enclosure for dust and water protection, this sensor ensures reliable object detection in manufacturing processes, making it ideal for safety and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, Industrial Object Sensor, SICK WLG12 Sensor
Technical Specifications
- Sensor principle: Photoelectric retro-reflective
- Minimum detectable object: Parallel beam, 6 mm to 12.5 mm
- Number of beams: 8
- Detection height: 87.5 mm
- Wavelength: 650 nm
- Supply voltage: DC 18 V to 30 V
- Power consumption sender: 80 mA
- Output current max: ≤ 100 mA
- Output mode: PNP, Q dark switching
- Initialization time: 0.6 s
- Connection type: Plug, M12, 5-pin
- Housing material: Plastic with PMMA front screen
- Enclosure rating: IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: II
- Maximum range: 1.5 m
- Minimum range: ≥ 100 mm
- Response time: 0.6 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- EMC: EN 60947-5-2
- Dimensions (H x L x W): 106mm x 47mm x 62mm
- Weight: 0.23 kg
Key Features
- Photoelectric retro-reflective sensor principle
- 8 parallel beams with 12.5 mm beam separation
- Adjustable resolution from 6 mm to 12.5 mm
- LED display for status indication
- IP67 rated enclosure for dust and water protection
- Short response time of 0.6 ms
- Robust against shock (10 g) and vibration (5 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (80 mA)
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WLG12-V537 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
