Photoelectric Retro-Reflective Sensor | Adjustable Object Size | IP66 & IP67 Rated | by SICK

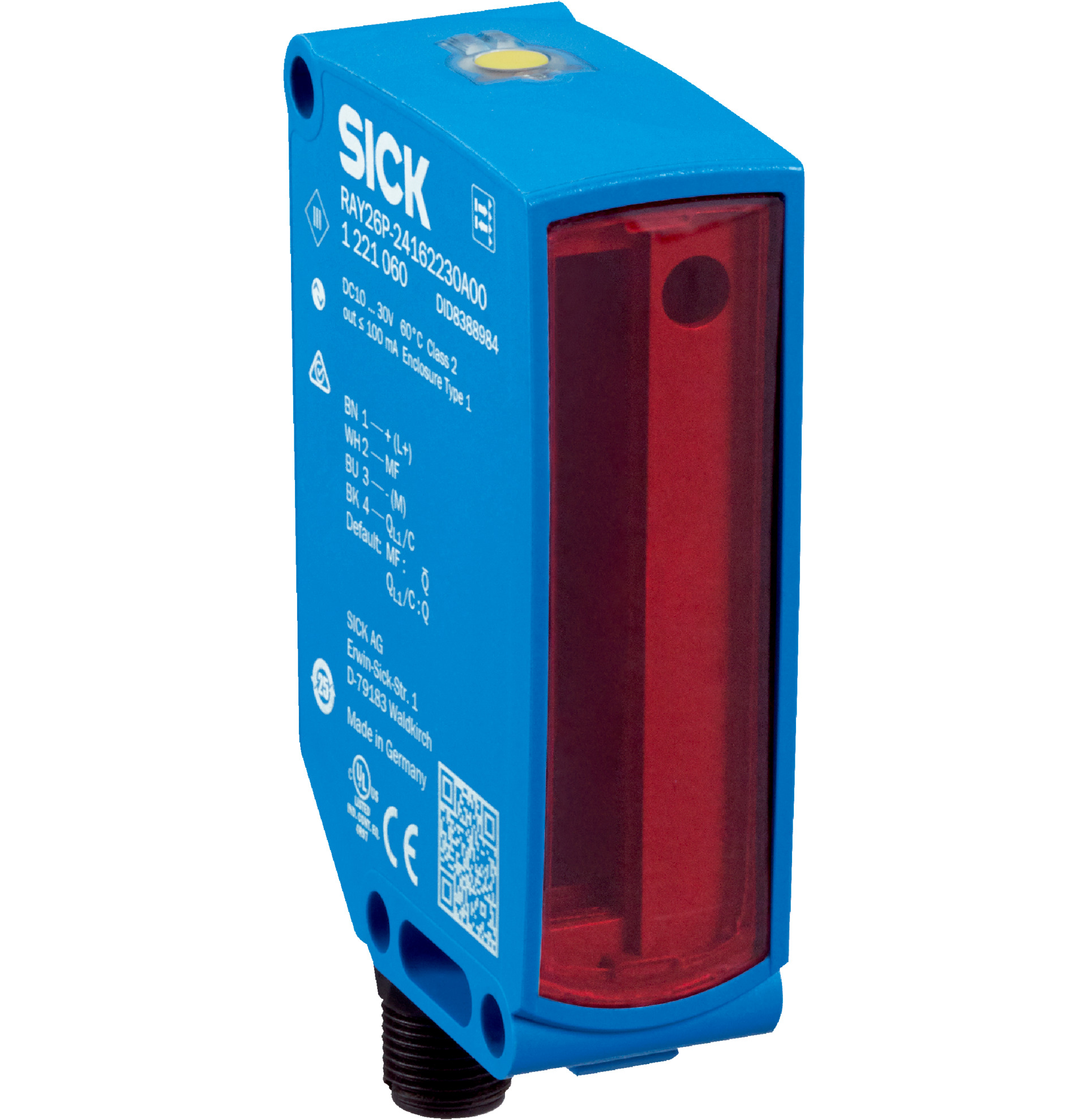

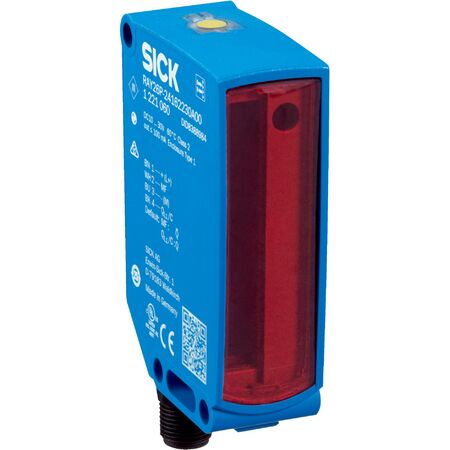

The Photoelectric Retro-Reflective Sensor RAY26P-1H162330A00 is designed for precise object detection in industrial automation. With an adjustable minimum object size from 3 mm to 10 mm and a sensing range of up to 4.5 m, it excels in monitoring conveyor belts and detecting various object types. Featuring a robust IP66/IP67 rated housing and a fast response time of ≤ 3 ms, this sensor is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with reflex array
- Minimum object size: Adjustable 3 mm to 10 mm via IO-Link
- Sensing range max: 0 m to 4.5 m depending on configuration
- Light source: PinPoint LED, 635 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA to 40 mA
- Switching output: Push-pull PNP/NPN with light/dark switching
- Response time: ≤ 3 ms
- Switching frequency: 170 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: -40 °C to +60 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with reflex array and autocollimation optics
- Adjustable minimum object size detection via IO-Link
- Visible red PinPoint LED light source with 635 nm wavelength
- Detection height of 55 mm and sensing range up to 4.5 m
- BluePilot teach-in and IO-Link adjustment for easy configuration
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency of 170 Hz and response time ≤ 3 ms
- Robust plastic VISTAL® housing with IP66 and IP67 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Communication via IO-Link V1.1 with 2.3 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration via IO-Link for optimal performance.
Applications
- Industrial automation for object detection
- Conveyor belt monitoring and control
- Detection of transparent, perforated, shiny, and flat objects
- Position tolerance object detection in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing minimizes waste through extended product life
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RAY26P-1H162330A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
