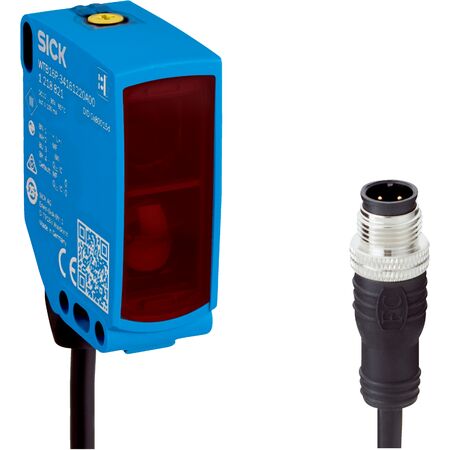

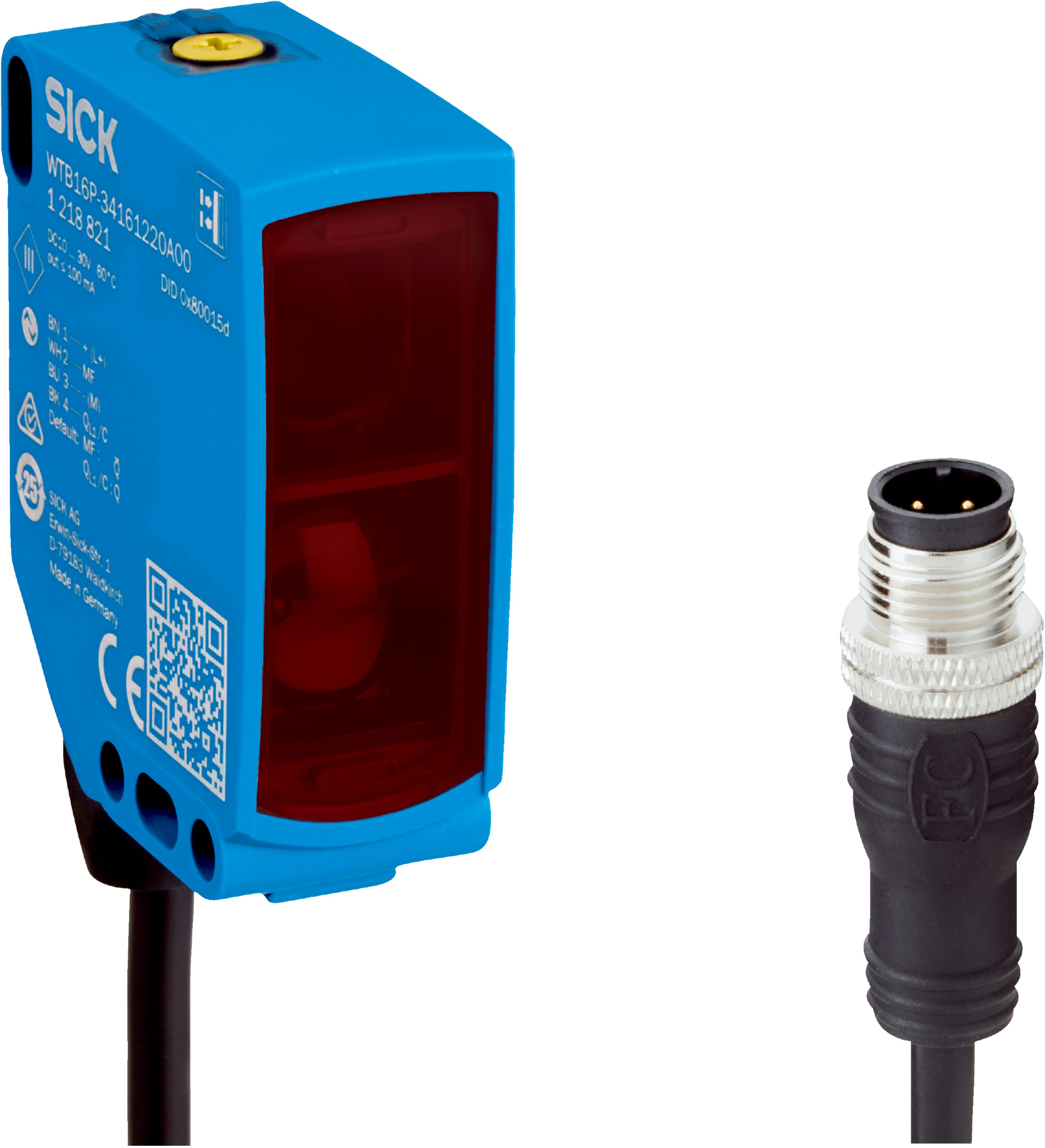

Photoelectric Retro-Reflective Sensor | ClearSens Technology | 5m Sensing Range | PinPoint LED | by SICK
The Photoelectric Retro-Reflective Sensor with ClearSens technology offers a sensing range of 0 m to 5 m without a reflector, making it ideal for industrial automation and object detection. Featuring a PinPoint LED light source with a 635 nm wavelength, this sensor is built for harsh environments with IP66, IP67, and IP69 protection ratings, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance (autocollimation/coaxial optics), ClearSens
- Sensing range: 0 m to 5 m
- Reference reflector: Reflector P250F
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size at 5 m: Ø 80 mm
- Maximum beam dispersion: < +/- 1.0° at 23 °C
- LED risk group: Free group according to EN 62471 and IEC 62471
- Average service life: 100,000 hours at 25 °C
- Adjustment: BluePilot Teach-in plus user mode selector
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable: PVC, 4-pin M12 male connector, 188 mm length
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens technology
- Sensing range from 0 m to 5 m without reflector
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included
- BluePilot Teach-in plus user mode selector for easy adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- LED indicators for mode, power, IO-Link status, and object presence
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Use in harsh environments requiring IP66 to IP69 protection
- Integration in systems requiring IO-Link communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces replacement frequency and waste
- Supports smart configuration to optimize sensor performance and reduce energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WLG16P-84162120A00 photoelectric retro-reflective sensor is available for immediate purchase. Ideal for industrial automation and object detection applications requiring robust and precise sensing solutions.
