Photoelectric Retro-Reflective Sensor | ClearSens & MultiMode | IP66/IP67 Rated | by SICK

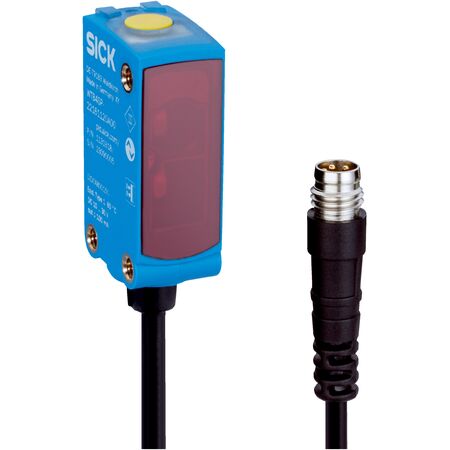

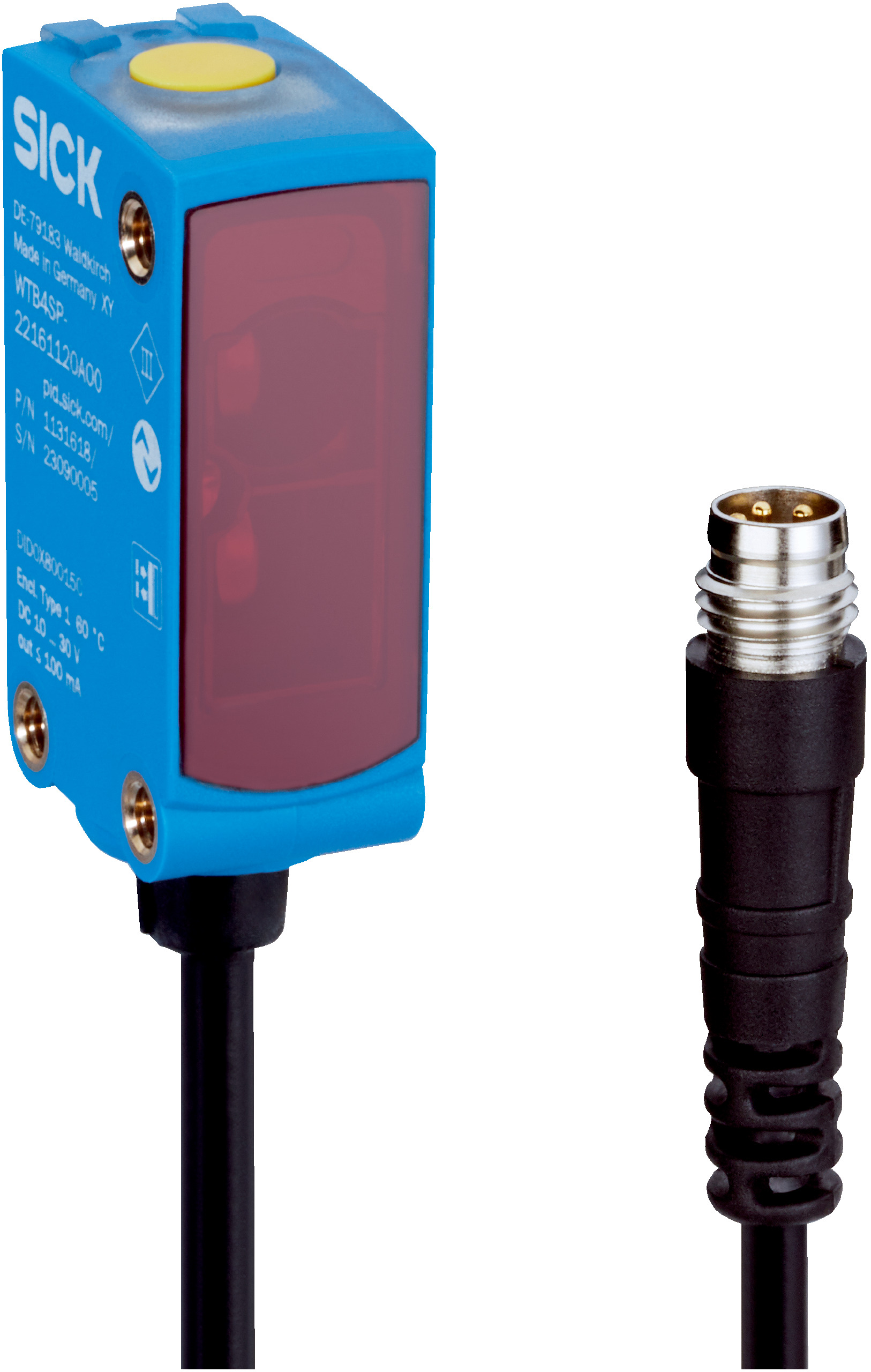

The Photoelectric Retro-Reflective Sensor WLG4SP-32162130A00 features ClearSens and MultiMode technology, providing a sensing range of up to 7.1 m, ideal for industrial automation and object detection. With a robust IP66/IP67 enclosure, it operates efficiently in harsh environments, ensuring reliable performance for detecting transparent and film-wrapped objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with ClearSens and MultiMode
- Sensing range: 0 m to 7.1 m (max), recommended 0 m to 5 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull PNP/NPN, light/dark switching
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M8 male connector, 4-pin, 114 mm length
- Housing material: Plastic VISTAL®
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens and MultiMode
- Sensing range up to 7.1 m with recommended range 0-5 m
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor configuration and Smart Task functions
- Dual push-pull digital outputs with light/dark switching
- High shock and vibration resistance
- IP66 and IP67 rated enclosure for robust protection
- Operating temperature range from -40 °C to +60 °C
- Plastic VISTAL® slim housing with M8 4-pin connector
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and configuration using IO-Link for optimal sensor performance.
Applications
- Object detection in industrial automation
- Detecting objects wrapped in film
- Detecting transparent objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLG4SP-32162130A00 photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
