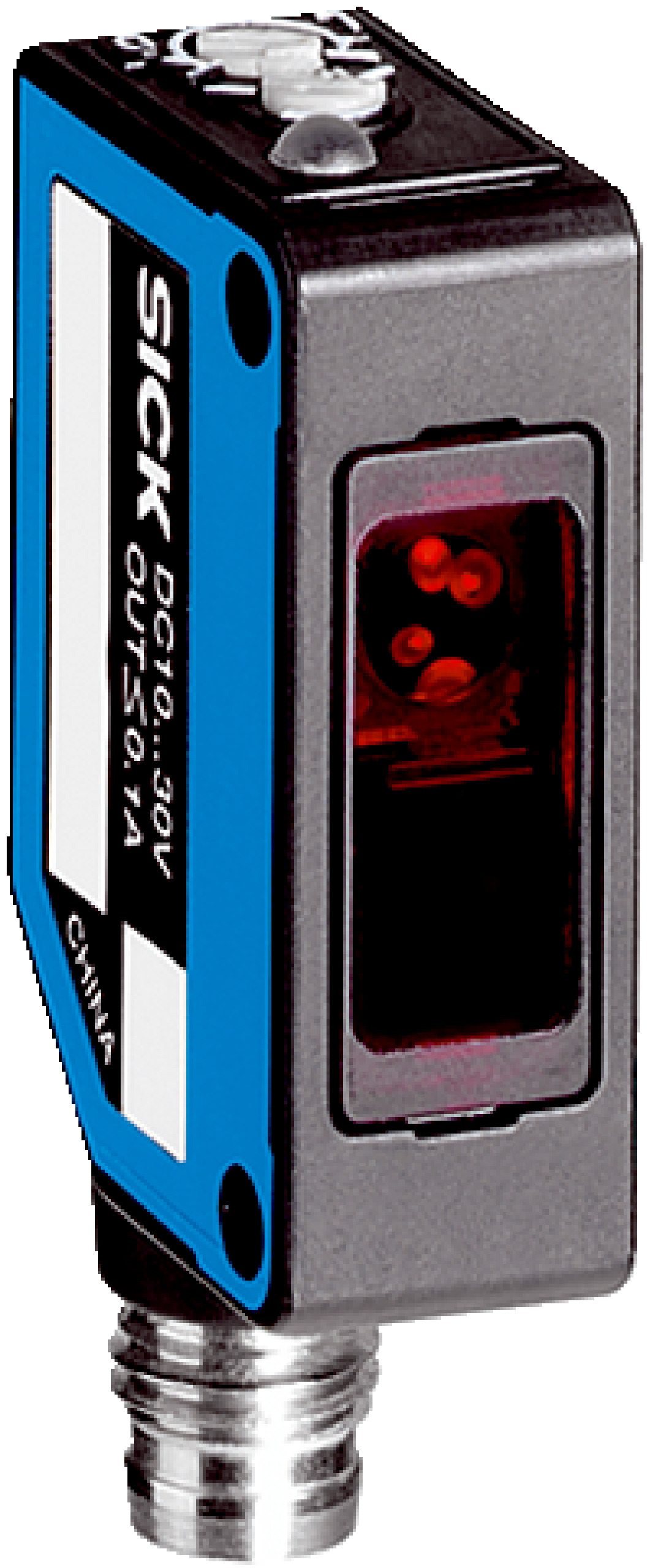

Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | IP67 Rated | by SICK
The WL8G-N2231 Photoelectric Retro-Reflective Sensor is designed for industrial automation, effectively detecting transparent objects with a sensing range of up to 1.7 m. Featuring a high switching frequency of 1,000 Hz and an IP67 rated enclosure, this sensor is perfect for robust environments, ensuring reliable performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range max: 0 to 3 m
- Sensing range: 0 to 1.7 m
- Light source: LED with 650 nm wavelength
- Light spot size at 2 m: Ø 70 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M8, 4-pin
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Detects transparent objects effectively
- Potentiometer adjustment with 270° rotation
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false triggers
- Compact rectangular housing design
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing processes
- Use in environments requiring robust IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL8G-N2231 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
