Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | IP67 Rated | by SICK

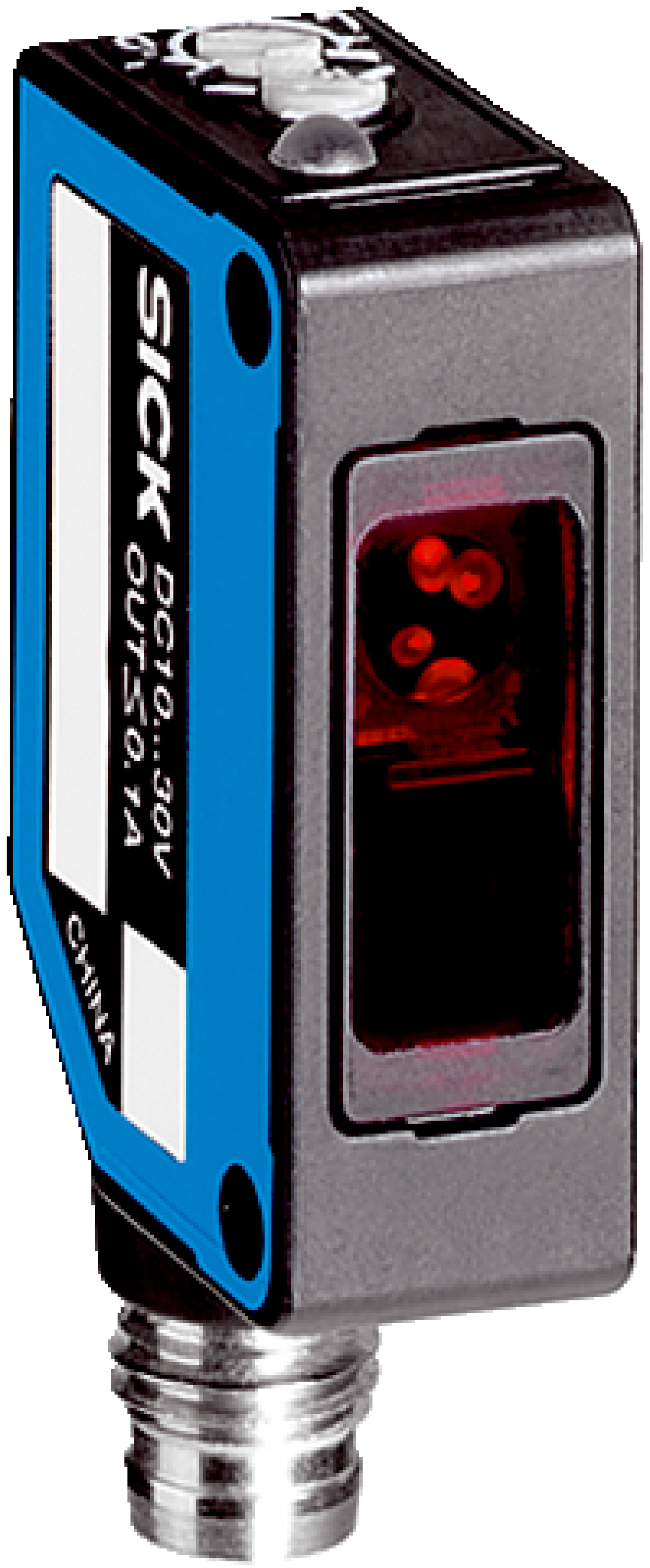

The Photoelectric Retro-Reflective Sensor WL8G-P2231S01 is designed for industrial automation, effectively detecting transparent objects with its advanced autocollimation optics. Featuring a high switching frequency of 1,000 Hz and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, making it ideal for manufacturing processes and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 100 mA
- Light source: LED, visible red light, 650 nm wavelength
- Light spot size at 2 m: Ø 70 mm
- Connection type: Male connector M8, 4-pin
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Special features: Detecting transparent objects, polarizing filter
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light LED with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- IP67 rated enclosure for dust and water protection
- Polarizing filter included
- Light/dark switching mode selectable via rotary switch
- High switching frequency of 1,000 Hz
- Compact rectangular housing design
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing processes
- Use in environments requiring reliable photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL8G-P2231S01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
