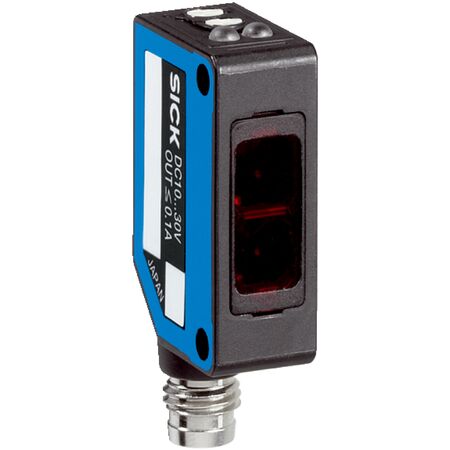

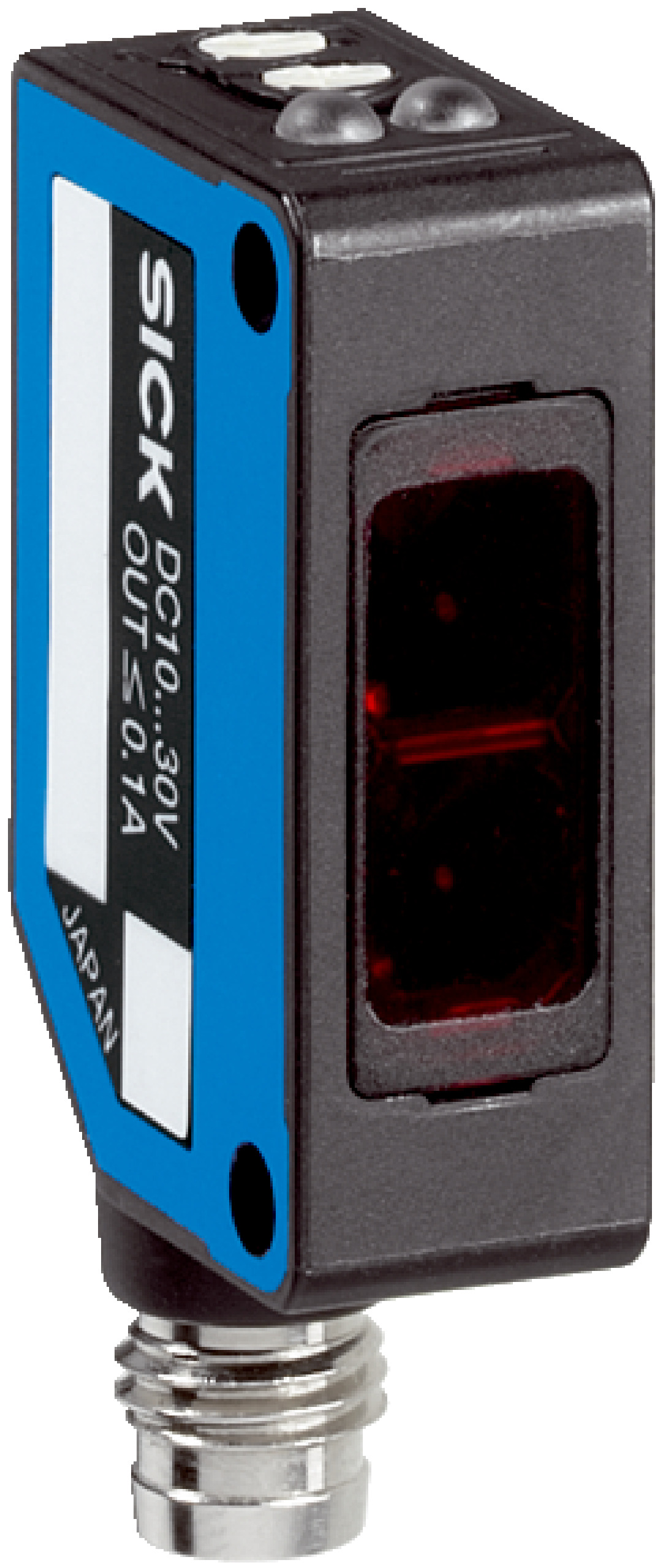

Photoelectric Retro-Reflective Sensor | Dual Lens System | 0.08m to 10m Range | IP65 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL100L-F1131S04 features a dual lens system for precise object detection, with a sensing range of 0.08m to 10m and a high switching frequency of 2000 Hz. Ideal for industrial automation and safety systems, this sensor operates with a visible red laser light source and is housed in a durable IP65 enclosure, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.08 m to 10 m (max 12 m)
- Light source: Laser, 650 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection: Cable with M12 male connector, 4-pin, 200 mm length
- Housing material: Plastic (ABS/PC/POM), Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2000 Hz
- IP65 rated enclosure for dust and water resistance
- Includes stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct alignment and secure mounting for optimal sensor performance.
Applications
- Detection of small objects
- Detection of objects moving at high speeds
- Industrial automation and safety systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP65 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100L-F1131S04 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
