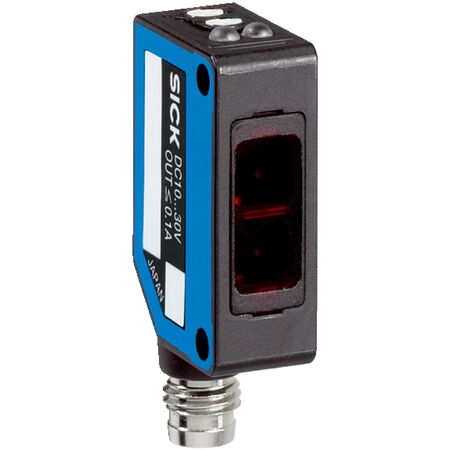

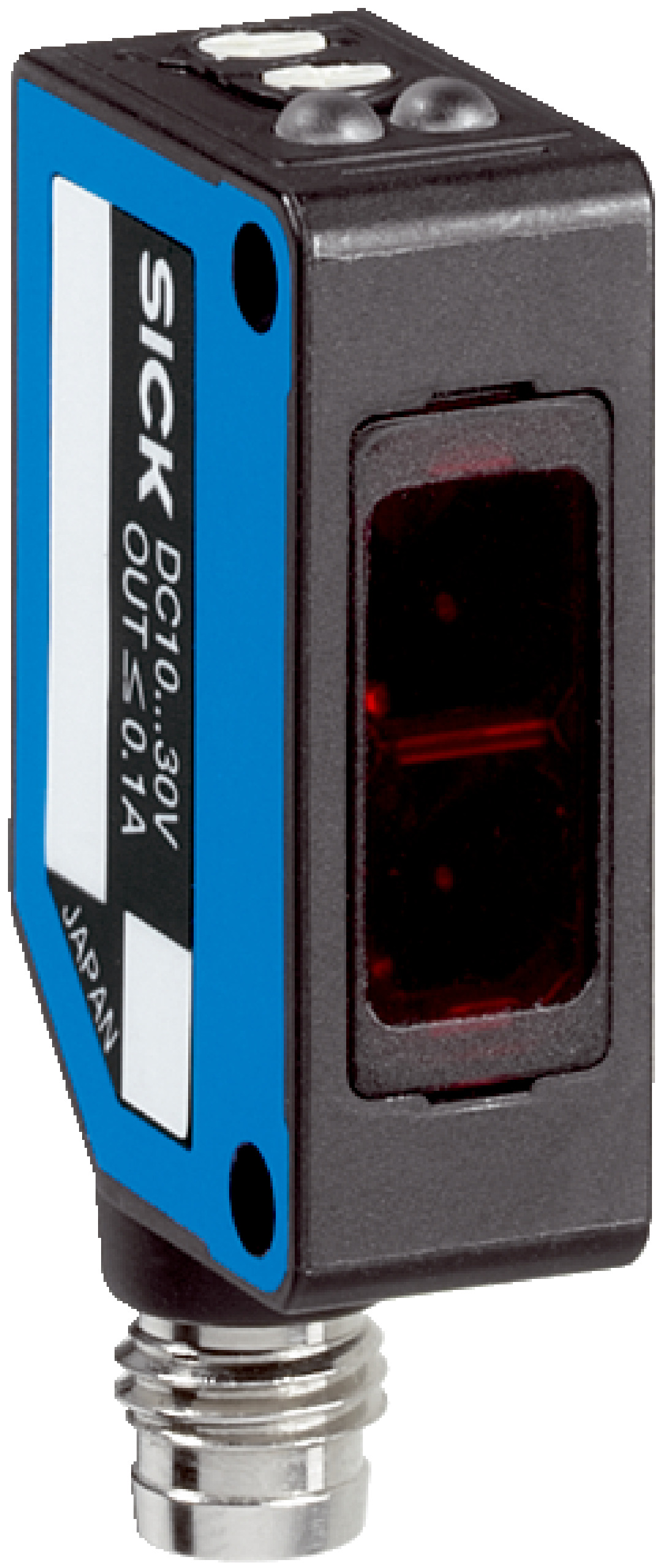

Photoelectric Retro-Reflective Sensor WL100L-E2131 | Dual Lens System | 0.08m to 12m Sensing Range | IP65 Rated | by SICK
The WL100L-E2131 Photoelectric Retro-Reflective Sensor is designed for high-speed object detection in industrial automation. With a sensing range of 0.08m to 12m and a dual lens system, it ensures precise detection. Featuring a visible red laser light source and an IP65 rated enclosure, this sensor is perfect for small object detection in manufacturing lines, providing reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.08 m to 12 m
- Light source: Laser, 650 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: M8, 3-pin connector
- Circuit protection: A, B, D types
- Housing material: Plastic (ABS/PC/POM), Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 10 g
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Sensing range from 0.08 m to 12 m
- Potentiometer adjustment with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2000 Hz
- IP65 rated enclosure for dust and water resistance
- Includes stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable housing reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL100L-E2131 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
