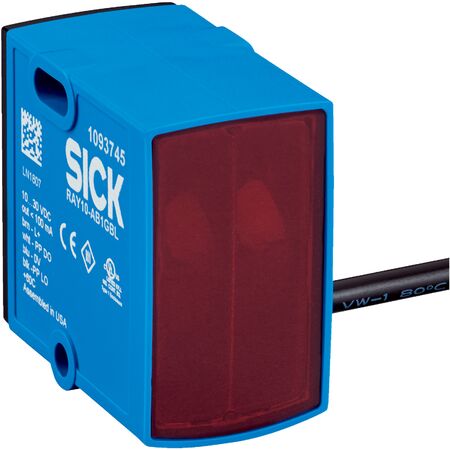

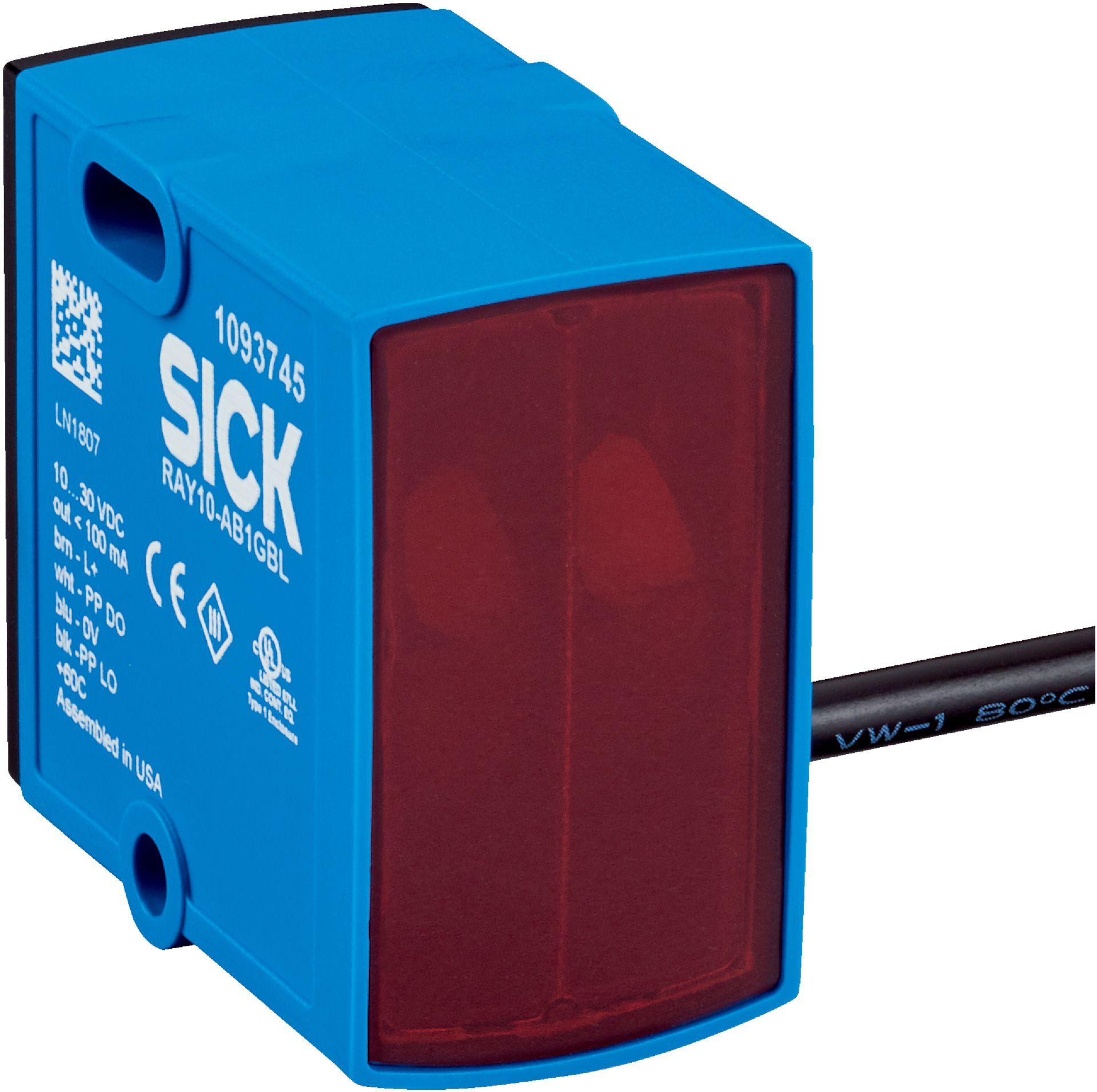

Photoelectric Retro-Reflective Sensor | Dual Lens System | 1.5m Sensing Range | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring a dual lens system and a sensing range of up to 1.5 meters. With a minimum object size detection of just 5 mm and a fast response time of ≤ 0.5 ms, this sensor is perfect for detecting various object types, including transparent and shiny surfaces. Built to withstand harsh environments with an IP67 rating, it ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Light source: PinPoint LED, wavelength 635 nm
- Adjustment: Potentiometer and IO-Link
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Switching frequency: 1000 Hz
- Response time: ≤ 0.5 ms
- Connection: Cable with M12 male connector, 4-pin, 1 m
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m with visible red light (635 nm)
- PinPoint LED light source with light spot size 37 mm x 12 mm at 1 m
- Potentiometer and IO-Link adjustment
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency up to 1000 Hz and fast response time ≤ 0.5 ms
- Cable with M12 male connector, 4-pin, 1 m length
- Robust plastic ABS housing and PMMA optics with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Communication via IO-Link V1.1 with 2.3 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration via IO-Link for optimal performance.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
- Use in environments requiring robust IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Supports precise detection reducing material waste in automation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RAY10-AB4EBLA00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
