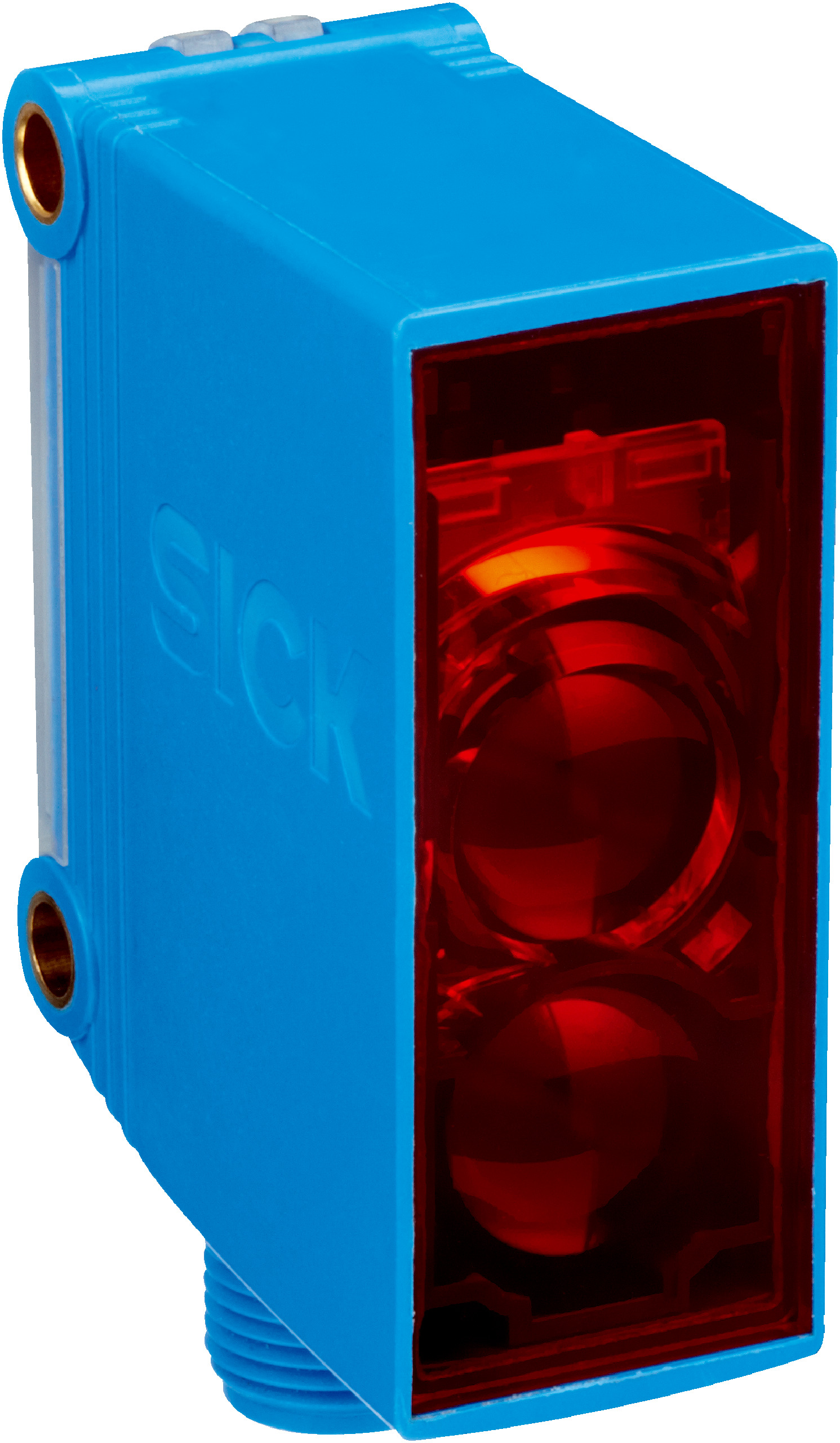

Photoelectric Retro-Reflective Sensor GL10-P4531S10 | Dual Lens System | 17m Sensing Range | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P4531S10 is designed for industrial automation, featuring a dual lens system and a sensing range of up to 17 meters. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, it ensures reliable object detection in challenging environments. Ideal for safety and control systems, this sensor is built to withstand harsh conditions while providing accurate performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 17 m
- Type of light: Visible red light, wavelength 625 nm
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light switching
- Response time: ≤ 1 ms
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- EMC standard: EN 60947-5-2
- Operating temperature range: -30 °C to +60 °C
- Storage temperature range: -40 °C to +70 °C
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 17 meters
- High switching frequency of 400 Hz and fast response time ≤ 1 ms
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false triggering
- Robust plastic housing made of ABS/PMMA
- Male connector M12, 4-pin connection type
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-P4531S10 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
