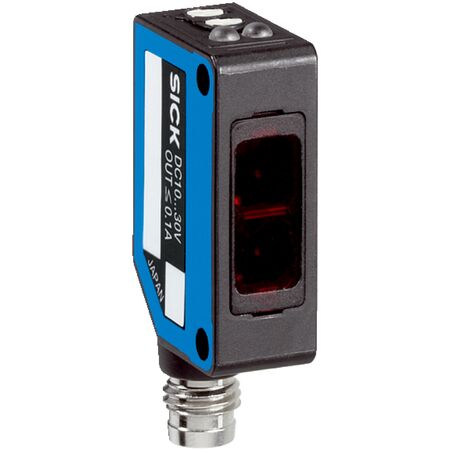

Photoelectric Retro-Reflective Sensor WL100L-F2131S01 | Dual Lens System | 2000 Hz Switching Frequency | IP65 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL100L-F2131S01 features a dual lens system and a visible red laser light source, making it perfect for high-speed object detection in industrial automation. With an impressive switching frequency of 2000 Hz and an IP65 rated enclosure, this sensor ensures reliable performance in challenging environments, ideal for manufacturing processes and small object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.08 m to 10 m (max 12 m)
- Light source: Laser, 650 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: M8 connector, 3-pin
- Circuit protection: Types A, B, D
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 10 g
- Includes reflector PL20F
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2000 Hz
- IP65 rated enclosure for dust and water resistance
- Polarizing filter included
- Compact rectangular housing design
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption of 30 mA
- Durable IP65 housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL100L-F2131S01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
