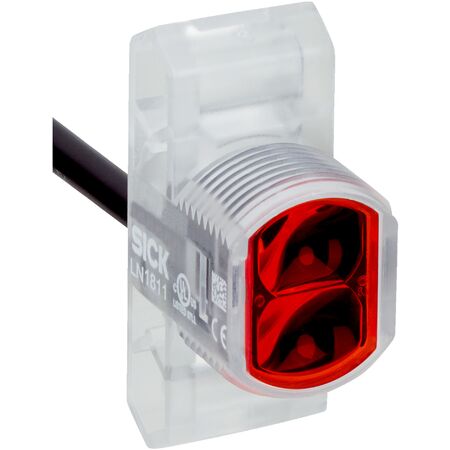

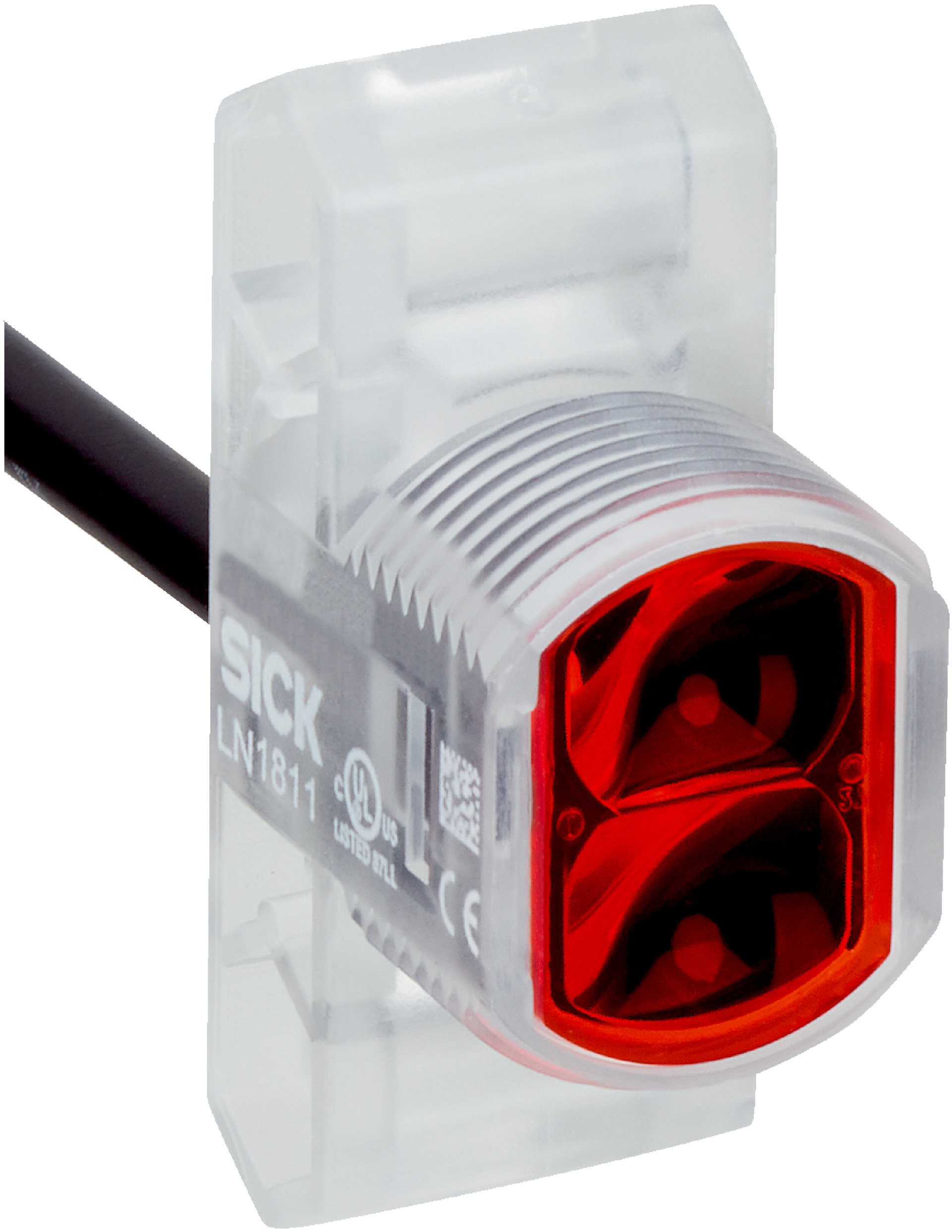

Photoelectric Retro-Reflective Sensor | Dual Lens System | 6.8m Sensing Range | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-APZAE2 features a dual lens system and a sensing range of up to 6.8 meters, making it ideal for industrial automation and safety applications. With a high switching frequency of 1,000 kHz and a fast response time of ≤ 500 µs, this sensor ensures precise object detection. Its IP67 rated enclosure provides excellent dust and water protection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 6.8 m
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching mode
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Cable with RJ11 6-pin connector, 1 m length
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 3.63 g
- Dimensions (H x L x W): 34.8mm x 23mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Compact M18 housing with transparent hybrid light emission design
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
- Polarisation filter included to reduce false triggering
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-APZAE2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
