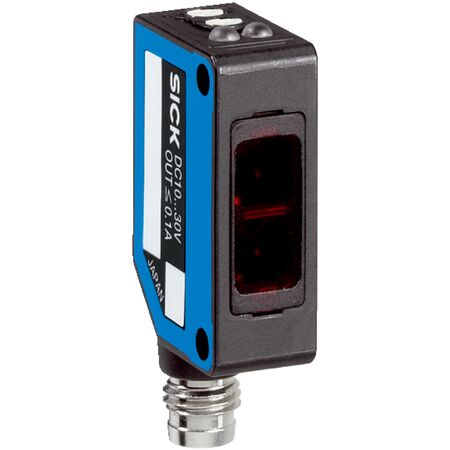

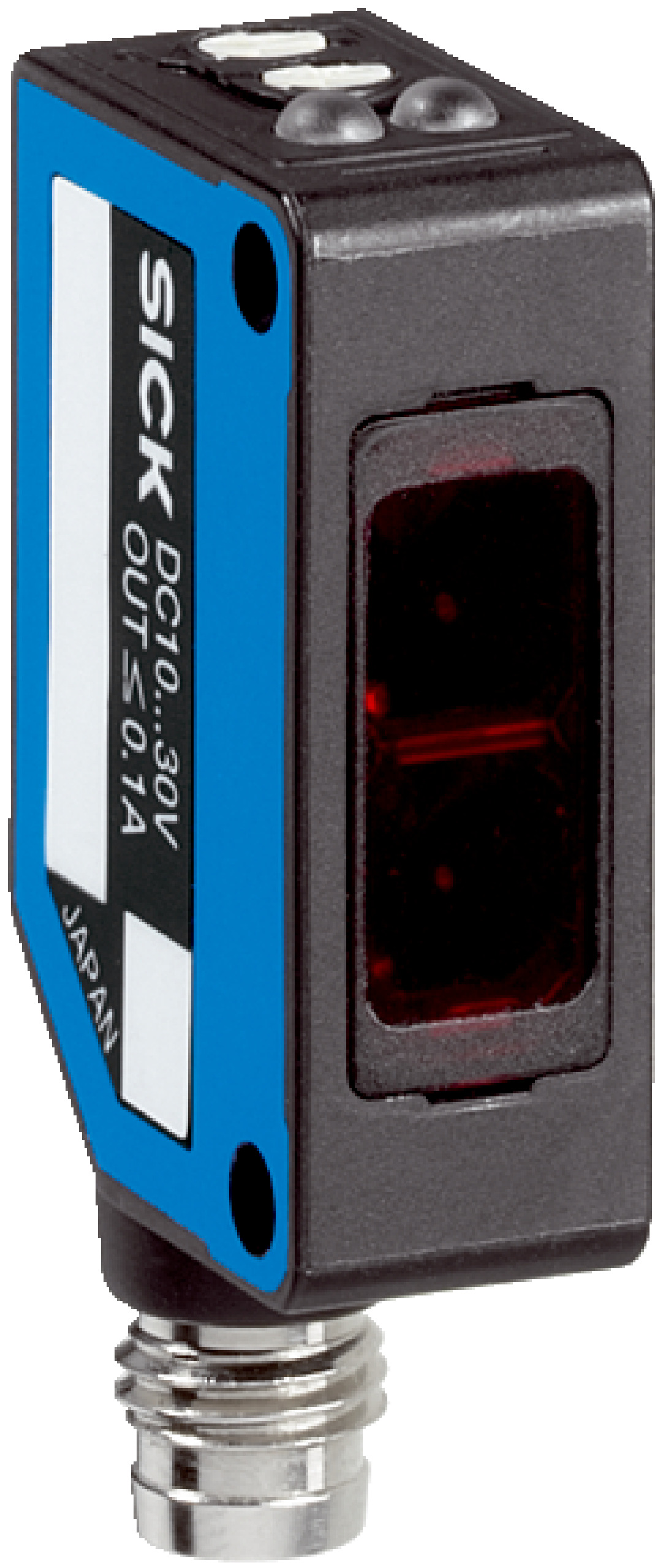

Photoelectric Retro-Reflective Sensor WL100L-F2231 | Dual Lens System | IP65 Rated | 650 nm Laser Light | by SICK
The WL100L-F2231 Photoelectric Retro-Reflective Sensor is designed for high-speed object detection in industrial automation. Featuring a dual lens system and a visible 650 nm laser light source, it ensures reliable performance with a sensing range of up to 10 m. With an IP65 rated enclosure, this sensor is built to withstand dust and water, making it ideal for manufacturing lines and other demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.08 m to 10 m (max 12 m)
- Light source: Laser, 650 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with selectable light/dark switching
- Response time: < 0.25 ms
- Switching frequency: 2,000 Hz
- Connection type: Male M8, 4-pin connector
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS/PC; Optics material: Plastic PMMA
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2,000 Hz
- IP65 rated enclosure for dust and water resistance
- Includes stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing lines
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP65 housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL100L-F2231 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
