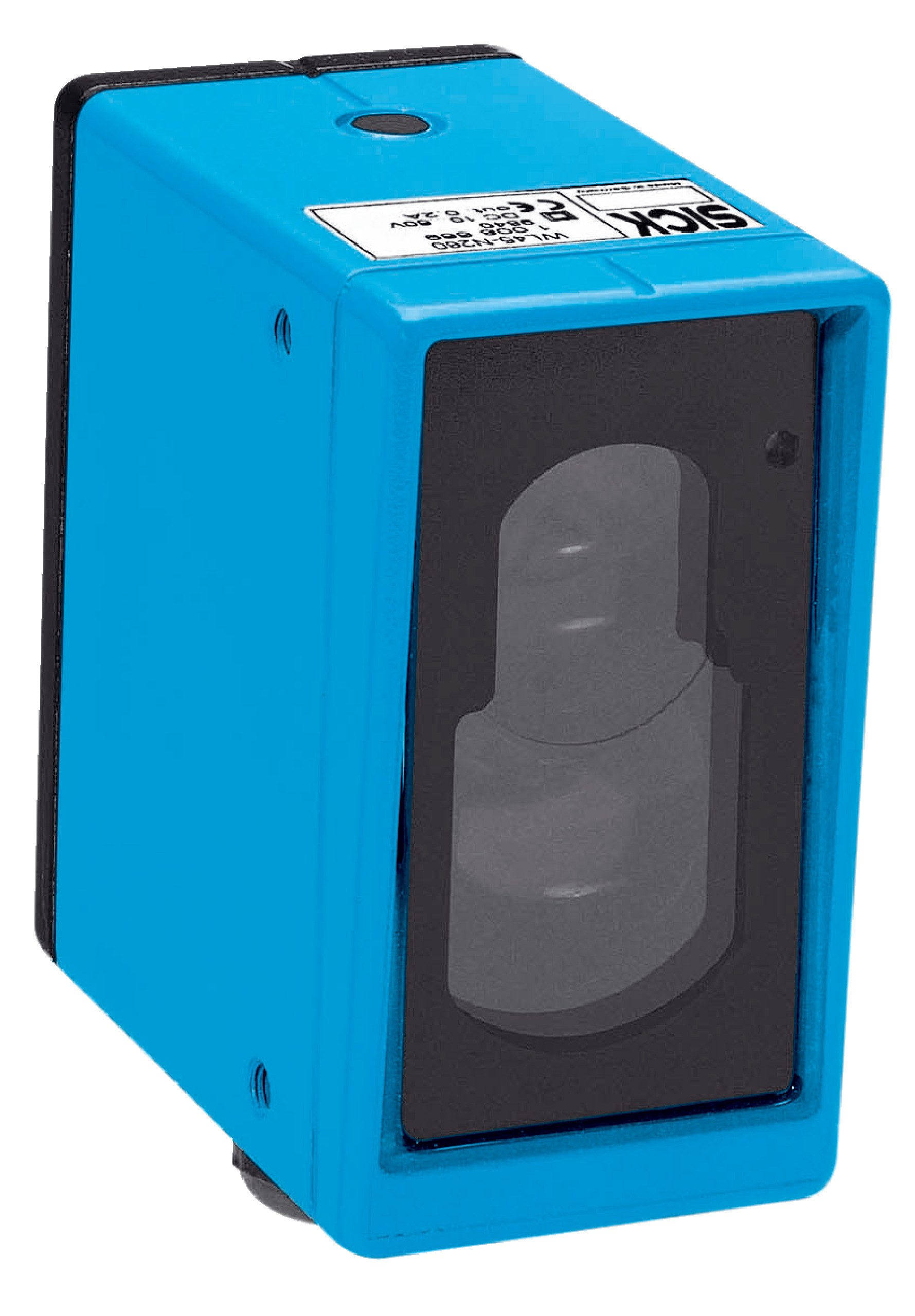

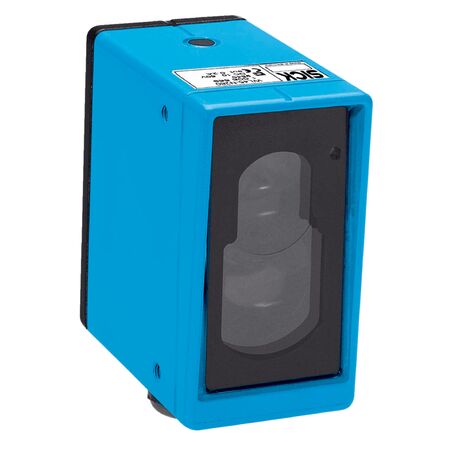

Photoelectric Retro-Reflective Sensor WL45-P660 | Dual Lens System | IP65 Rated | by SICK
The WL45-P660 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 45 meters. With a robust IP65-rated metal housing and a visible red LED light source, it ensures reliable performance in manufacturing and material handling applications. Ideal for safety monitoring, this sensor offers adjustable sensitivity and delay settings for versatile use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL45-P660 | Dual Lens System | IP65 Rated | by SICK
Brand: SICK
SKU: 1008831
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, SICK WL45 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 1 m to 45 m (max 55 m)
- Light source: Visible red LED
- Light spot size at 16 m: Ø 230 mm
- Supply voltage: 10 V DC to 60 V DC
- Current consumption: 50 mA
- Switching output: PNP, complementary function
- Output current max: ≤ 200 mA
- Response time: ≤ 1.2 ms
- Switching frequency: 400 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable
- Connection type: Connector Hirschmann, 6-pin
- Protection class: I
- Enclosure rating: IP65
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Metal
- Polarisation filter included
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source
- Adjustable potentiometer for sensitivity and delay settings
- Robust metal housing with IP65 enclosure rating
- Polarisation filter to reduce false triggering
- Switching output: PNP with complementary function
- Switching mode: Light/dark switching
- Adjustable delay times with time delay selector switch
- High switching frequency of 400 Hz
- Connector Hirschmann, 6-pin connection type
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL45-P660 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
