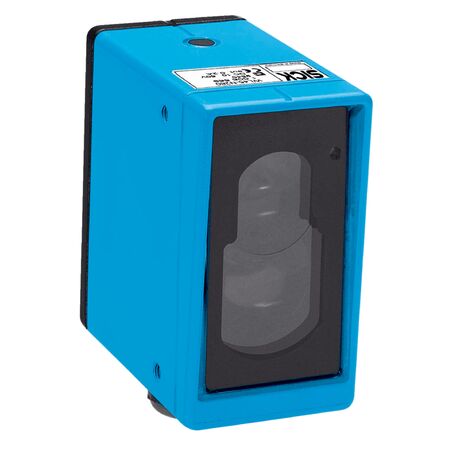

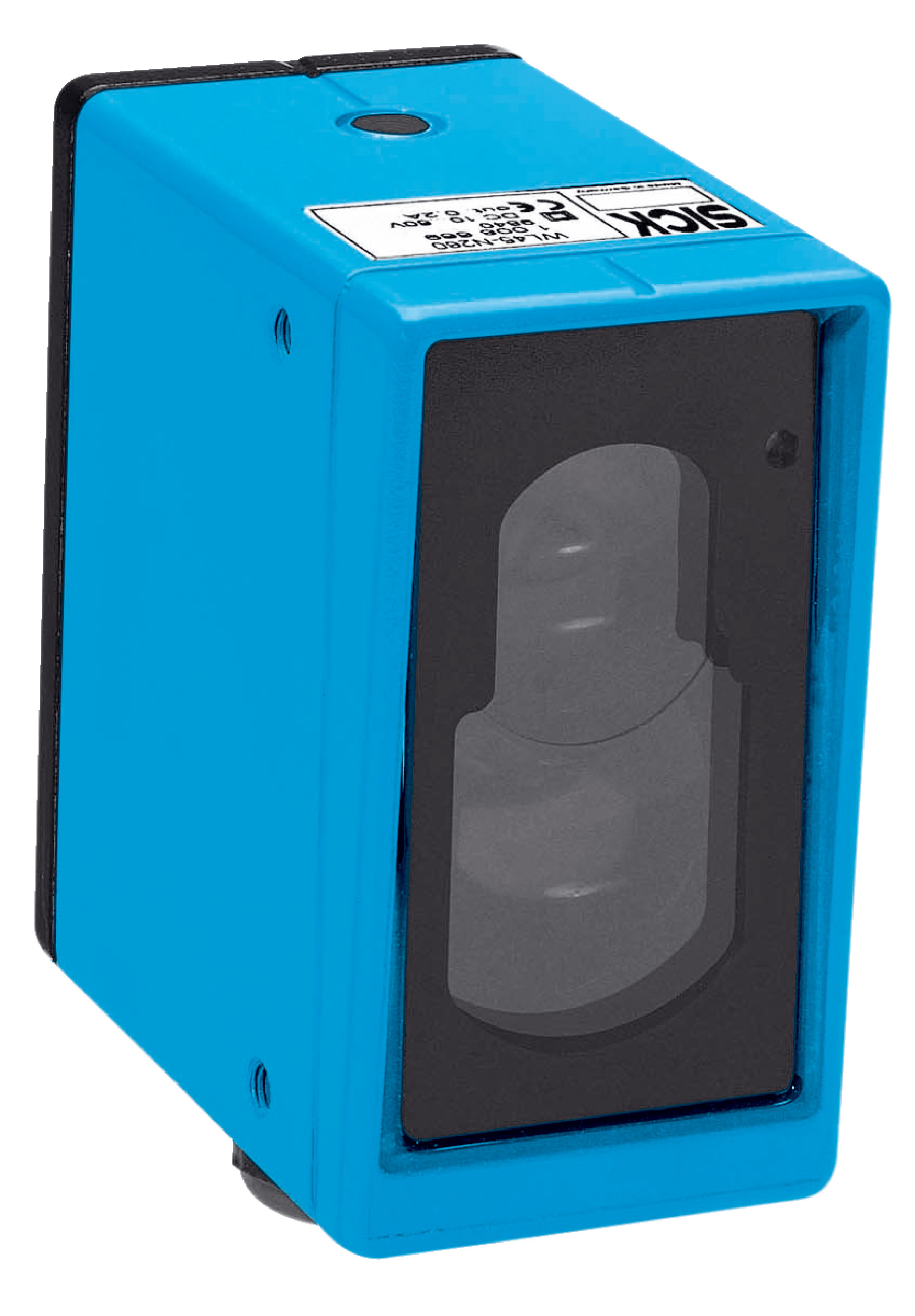

Photoelectric Retro-Reflective Sensor WL45-R660 | Dual Lens System | IP65 Rated | by SICK
The WL45-R660 Photoelectric Retro-Reflective Sensor features a dual lens system and a visible red LED light source, making it ideal for industrial automation and safety monitoring. With a sensing range of up to 45 meters and robust IP65-rated metal housing, this sensor ensures reliable object detection in various environments, from manufacturing to material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL45-R660 | Dual Lens System | IP65 Rated | by SICK
Brand: SICK
SKU: 1008832
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK WL45 Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 1 m to 45 m (max 55 m)
- Light source: Visible red LED
- Light spot size at 16 m: Ø 230 mm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: ≤ 6 VA
- Switching output: Relay, electrically isolated, change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 20 ms
- Switching frequency: 10 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable 0.5 s to 12 s
- Connection type: Hirschmann 6-pin connector
- Protection class: I
- Enclosure rating: IP65
- Housing material: Metal
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Usage category: AC-15, DC-13 according to EN 60947-1
- Polarisation filter included
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source
- Very small light spot with very long sensing range
- Selectable light/dark switching mode with time delay selector switch
- Relay output with change-over contacts
- Robust metal housing with IP65 enclosure rating
- Polarisation filter included
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL45-R660 Photoelectric Retro-Reflective Sensor is available now for immediate purchase. Ideal for industrial automation and safety monitoring applications.
